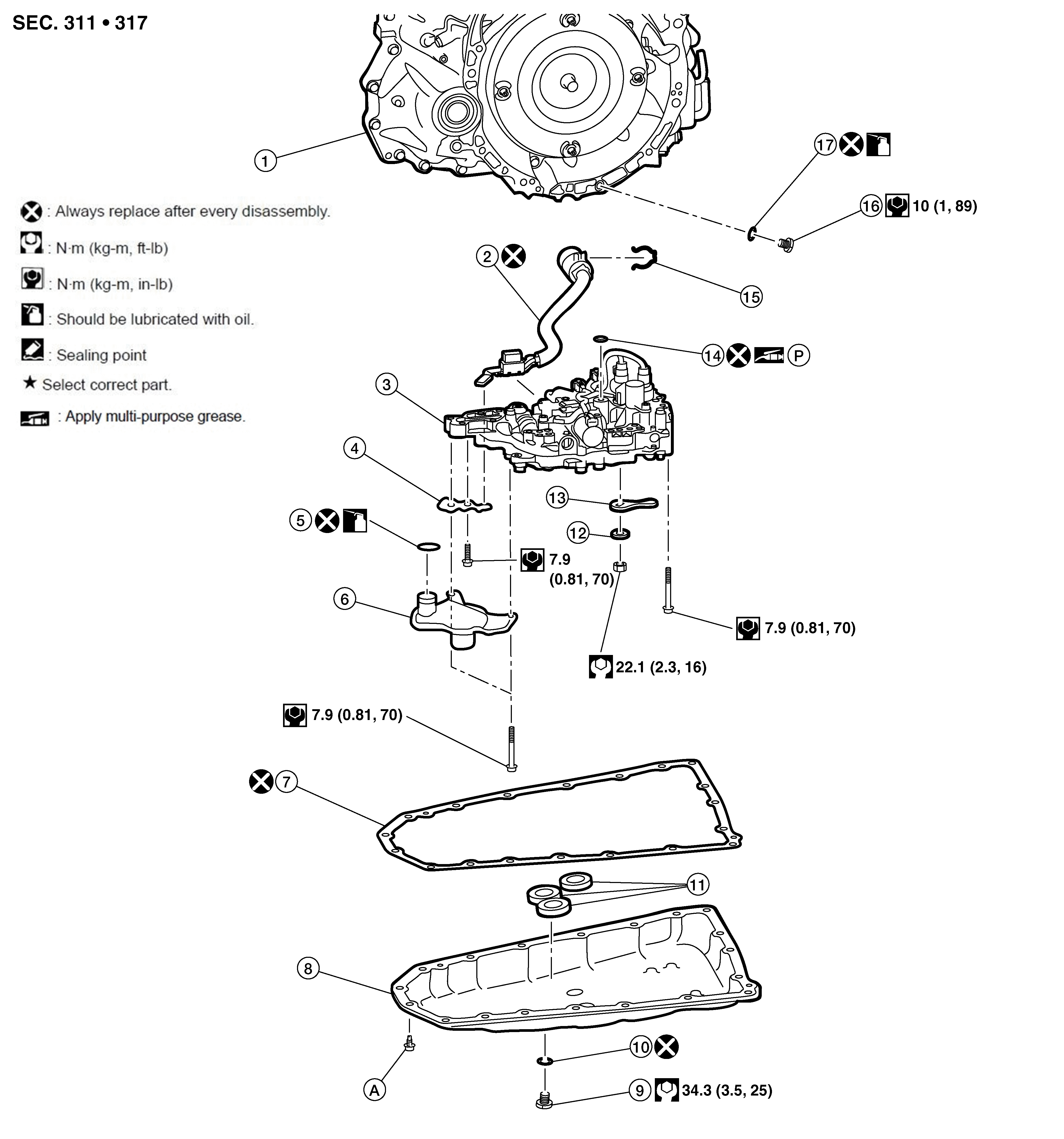

CONTROL VALVE : Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
Transaxle assembly |
2. |
Terminal cord assembly |
3. |
Control valve |
|
4. |
Bracket |
5. |
O-ring |
6. |
Oil strainer assembly |
|
7. |
Oil pan gasket |
8. |
Oil pan |
9. |
Drain plug |
|
10. |
Drain plug gasket |
11. |
Magnet |
12. |
Spring washer |
|
13. |
Manual plate |
14. |
Lip seal |
15. |
Snap ring |
|
16. |
Overflow plug |
17. |
O-ring |
A. |
Refer to OIL PAN : Removal & Installation . |
