Section 12 (Automatic Transmission (Re0F10D) (2 Of 2))
>>
Removal And Installation
>>
CVT Oil Warmer
>>

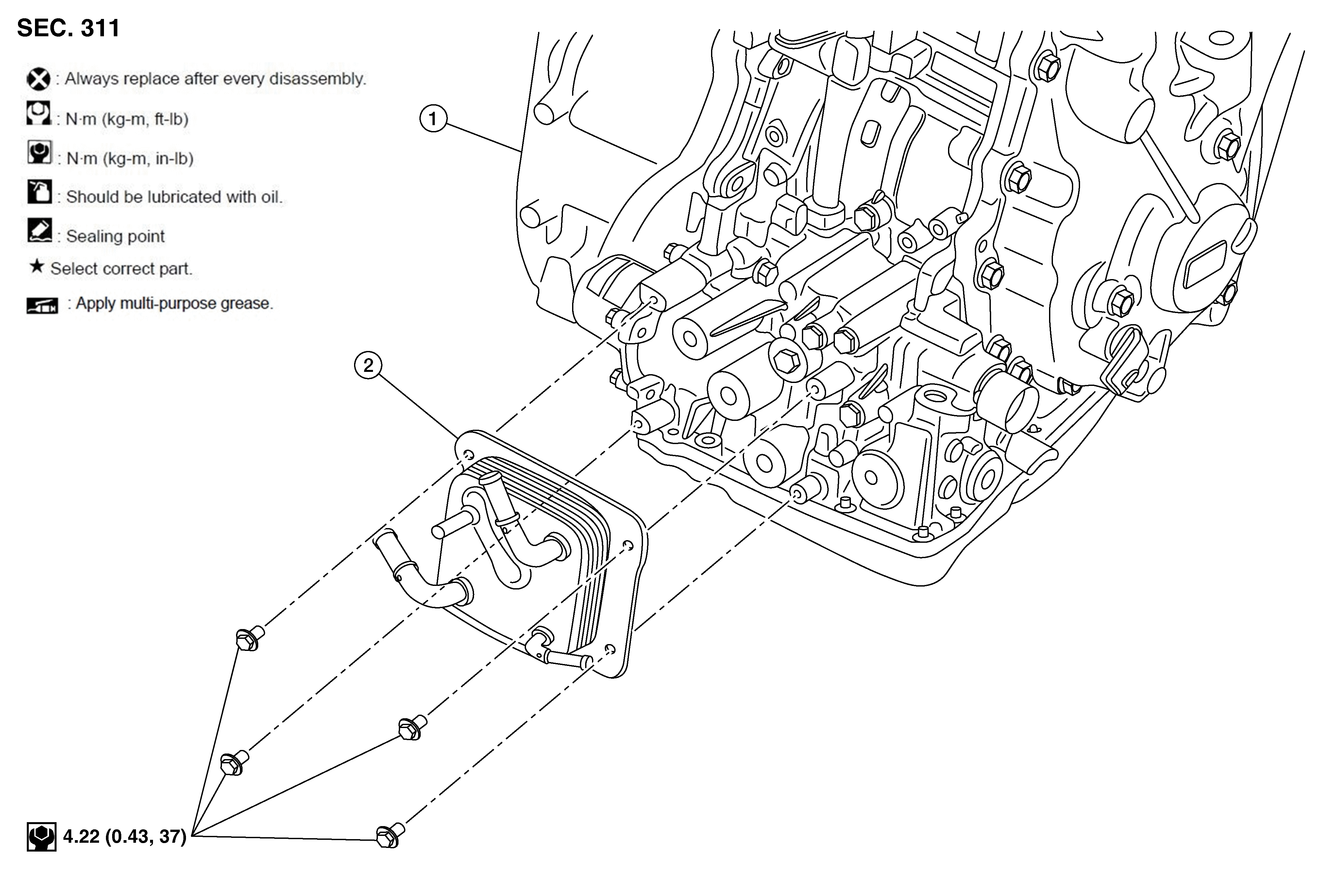

CVT OIL WARMER : Exploded View
CVT OIL WARMER : Exploded View
WARNING:
This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Transaxle assembly
2.
CVT oil warmer
