How To Remove And Install CVT Unit Connector: Removal

WARNING: This page is about a different variant/trim than selected.

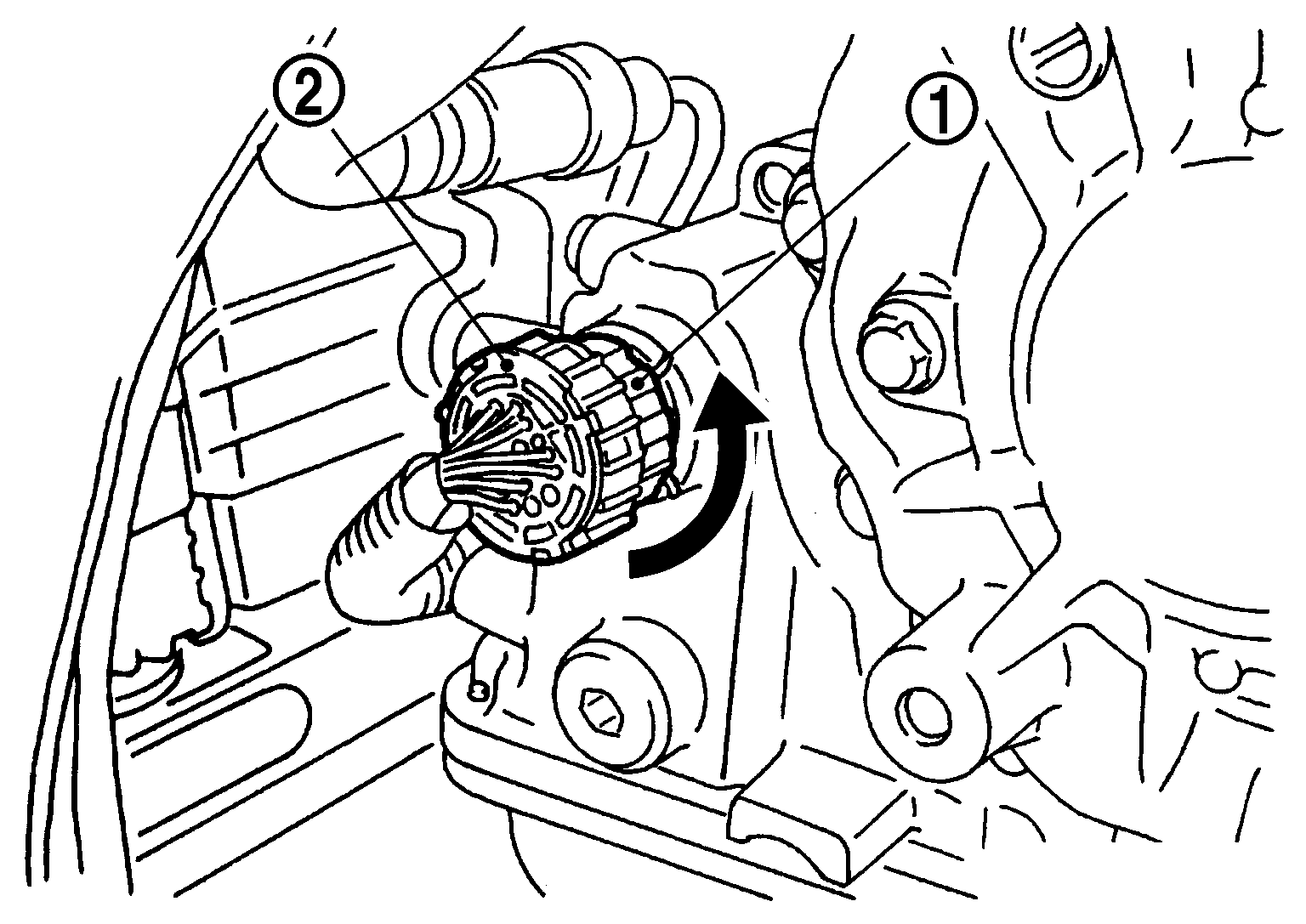

Rotate bayonet ring counterclockwise. Pull out CVT unit harness connector upward and remove it.

Courtesy of NISSAN NORTH AMERICA, INC.
