PR25DD engine: Assembly

WARNING: This page is about a different variant/trim than selected.

Assembly is in the reverse order of disassembly.

CAUTION: Do not reuse converter housing oil seal.

NOTE: Lubricate converter housing oil seal prior to installation.

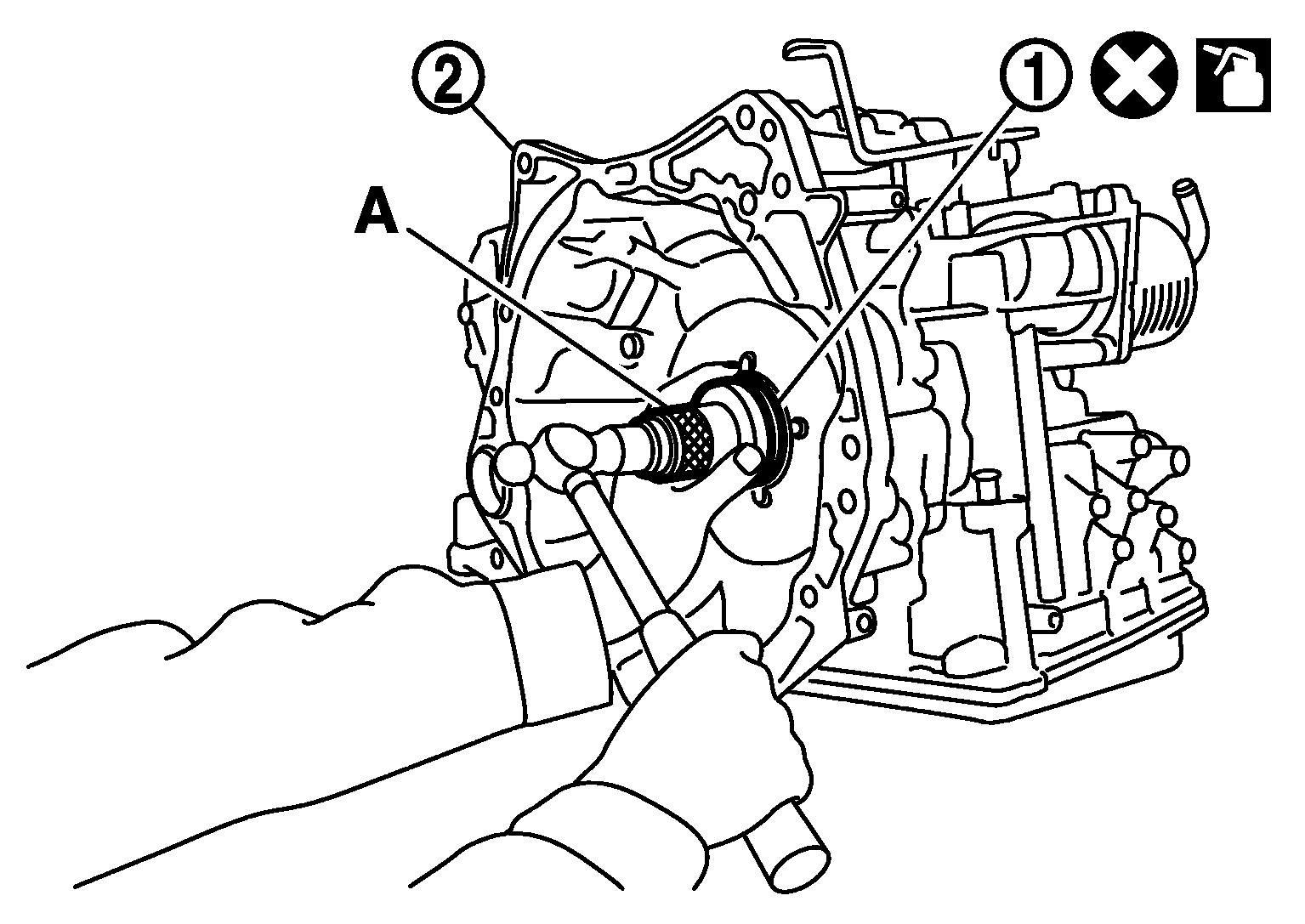

Drive converter housing oil seal

evenly using a drift (A) (commercial service tool) so that converter housing oil seal protrudes by the dimension (B) respectively.

Courtesy of NISSAN NORTH AMERICA, INC.

Unit: mm (in)

Commercial service tool: (A)	Outer diameter: 65 (2.56)
	Inner diameter: 60(2.36)

: Transaxle assembly

Unit: mm (in)

Dimension (B)

1.0 +/- 0.5 (0.039 +/- 0.020)

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Converter housing oil seal pulling direction is used as the reference.

After completing installation, check for CVT fluid leaks and CVT fluid level. Refer to CVT FLUID : Inspection .
Attach the pawl of the torque converter to the drive sprocket hole on the transaxle assembly side.

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Rotate the torque converter for installing torque converter.
- Do not damage the bushing inside the torque converter sleeve when installing the converter housing oil seal.
