PR25DD engine

With CONSULT

1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect EVAP purge hoses connected to EVAP canister purge volume control solenoid valve.
4. Start engine.
5. Select "PURG VOL CONT/V" in "ACTIVE TEST" mode of "ENGINE" using CONSULT.
6. Touch "Qd" and "Qu" on CONSULT screen to adjust "PURG VOL C/V" opening and check air passage continuity of EVAP canister purge volume control solenoid valve as per the following conditions.

   Courtesy of NISSAN NORTH AMERICA, INC.

Without CONSULT

1. Turn ignition switch OFF.
2. Disconnect EVAP canister purge volume control solenoid valve harness connector.
3. Disconnect EVAP purge hoses connected to EVAP canister purge volume control solenoid valve.

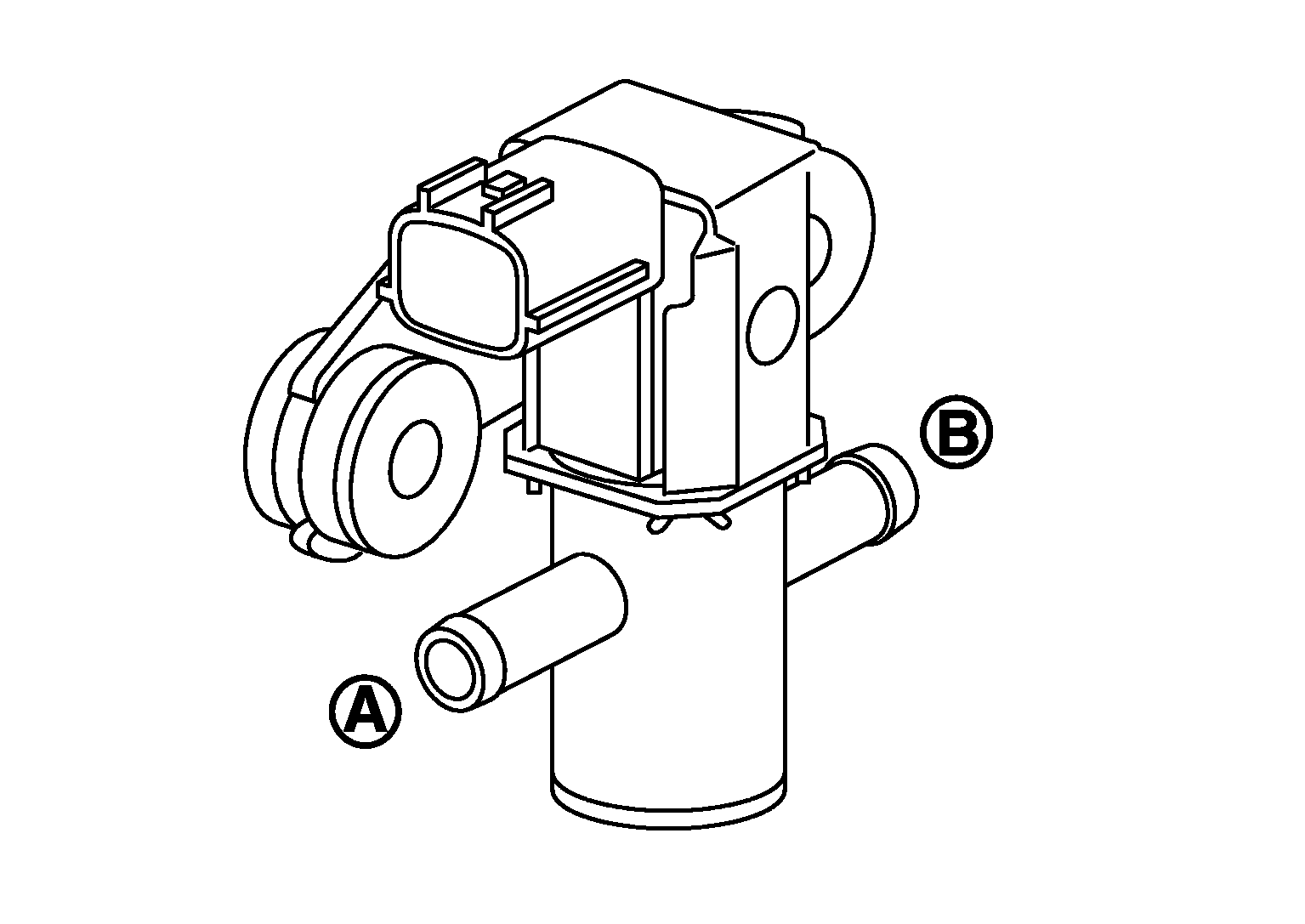

4. Check air passage continuity of EVAP canister purge volume control solenoid valve as per the following conditions.

   Condition	Air passage continuity between (A) and (B)
   12 V direct current supply between terminals 1 and 2	Existed
   No supply	Not existed

Is the inspection result normal?

YES

INSPECTION END

NO

Replace EVAP canister purge volume control solenoid valve. Refer to Removal and Installation (AWD) or Removal and Installation (FWD).
