PR25DD engine
WARNING: This page is about a different variant/trim than selected.
- CHECK COOLING FAN RELAYS
- Turn ignition switch OFF.
- Remove cooling fan relay-2, -3.
- Check the continuity between cooling fan relay-2, -3 terminals as per the following conditions.

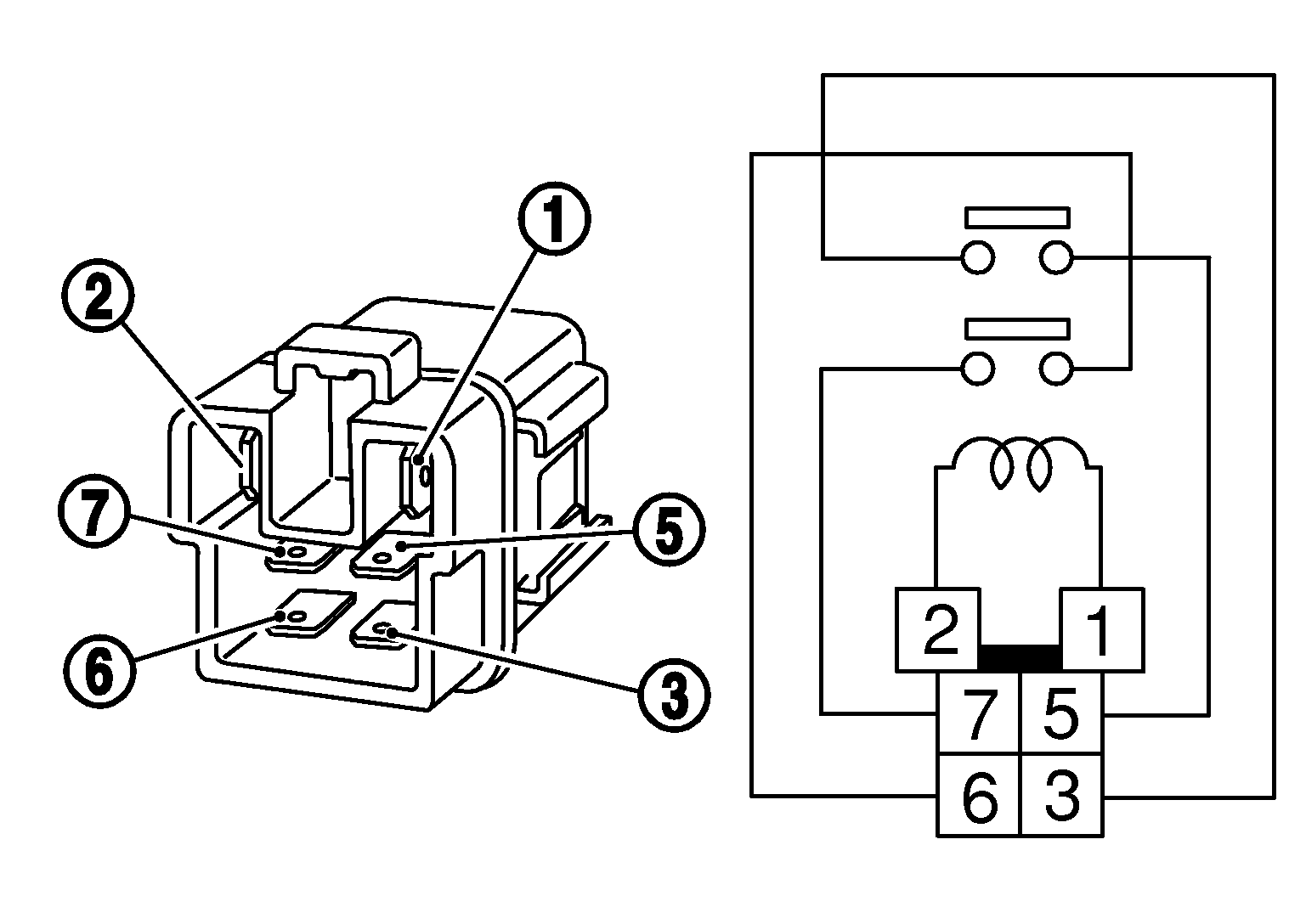

Cooling fan relay-2, -3
Conditions
Continuity
+
-
Terminal
3
5
12V direct current supply between terminals 1 and 2
Existed
No current supply
Not existed
6
7
12V direct current supply between terminals 1 and 2
Existed
No current supply
Not existed
Is the inspection result normal?
YES
INSPECTION END
NO
Replace cooling fan relay.
