Individual Operation
WARNING: This page is about a different variant/trim than selected.

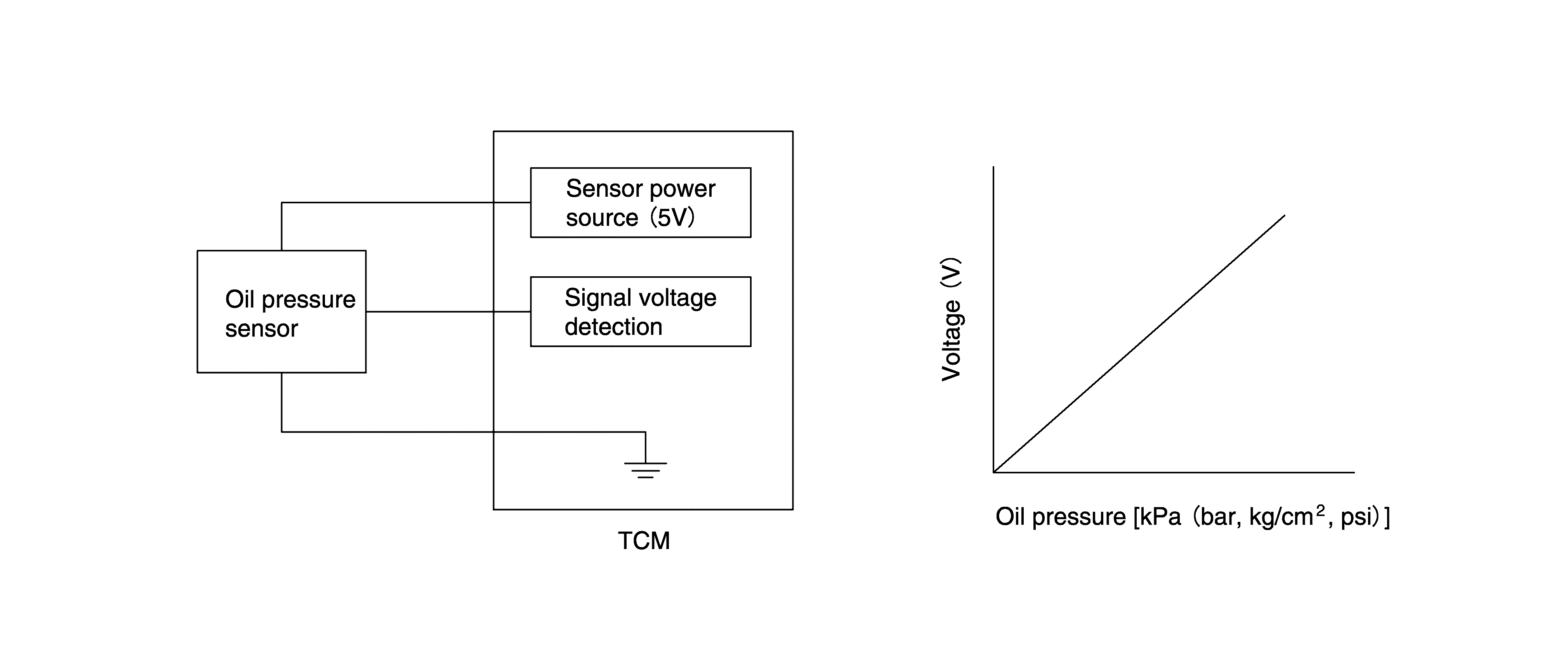

When pressure is applied to the ceramic device in the primary pressure sensor, the ceramic device is deformed that produce voltage change.
TCM evaluates the secondary pressure based on the voltage change.
Voltage is increased along with pressure increase.
