Individual Operation

WARNING: This page is about a different variant/trim than selected.

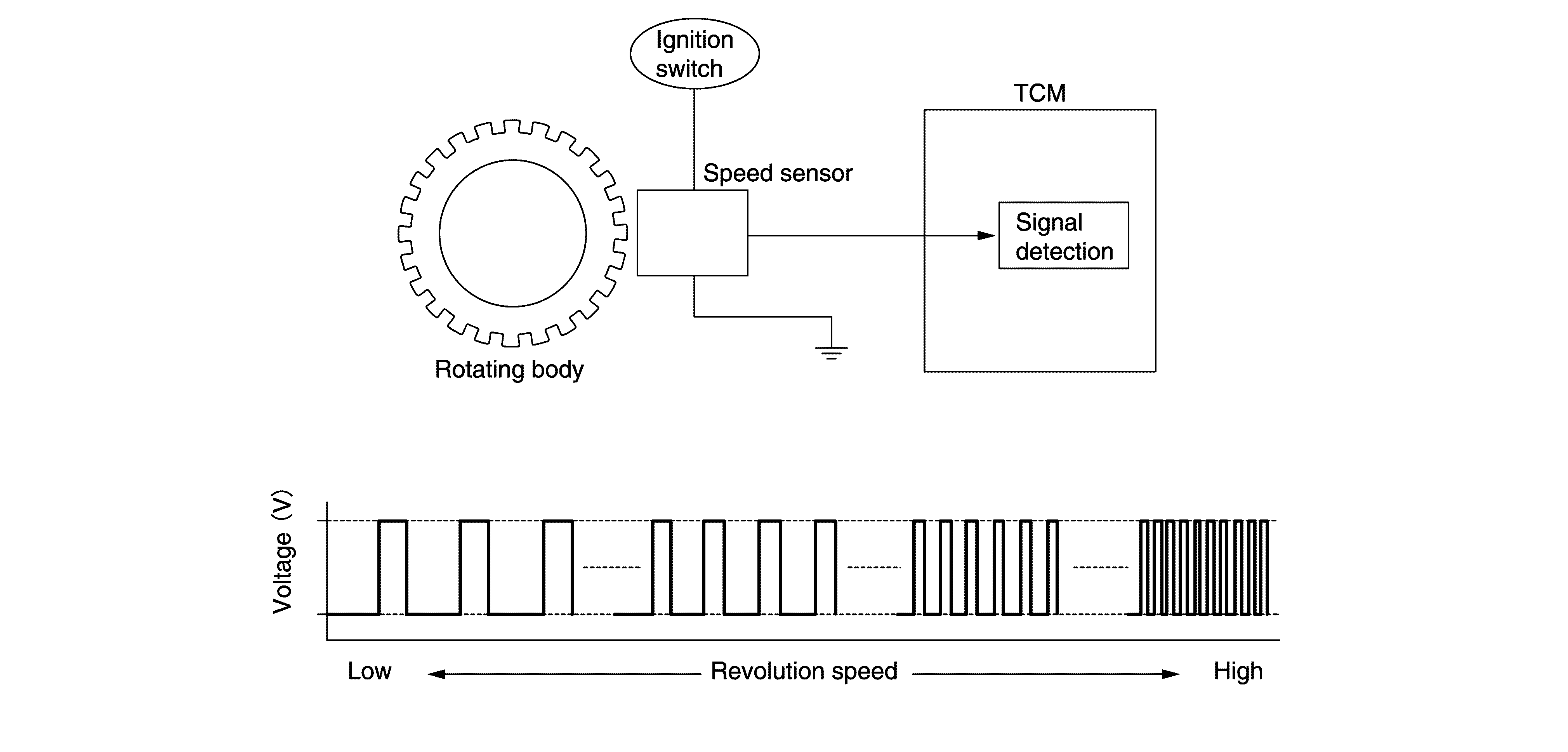

The output speed sensor generates an ON-OFF pulse signal according to the rotating body speed.

TCM judges the rotating body speed based on the pulse signal.

G06935686Courtesy of NISSAN NORTH AMERICA, INC.
