FUEL TANK : Exploded View

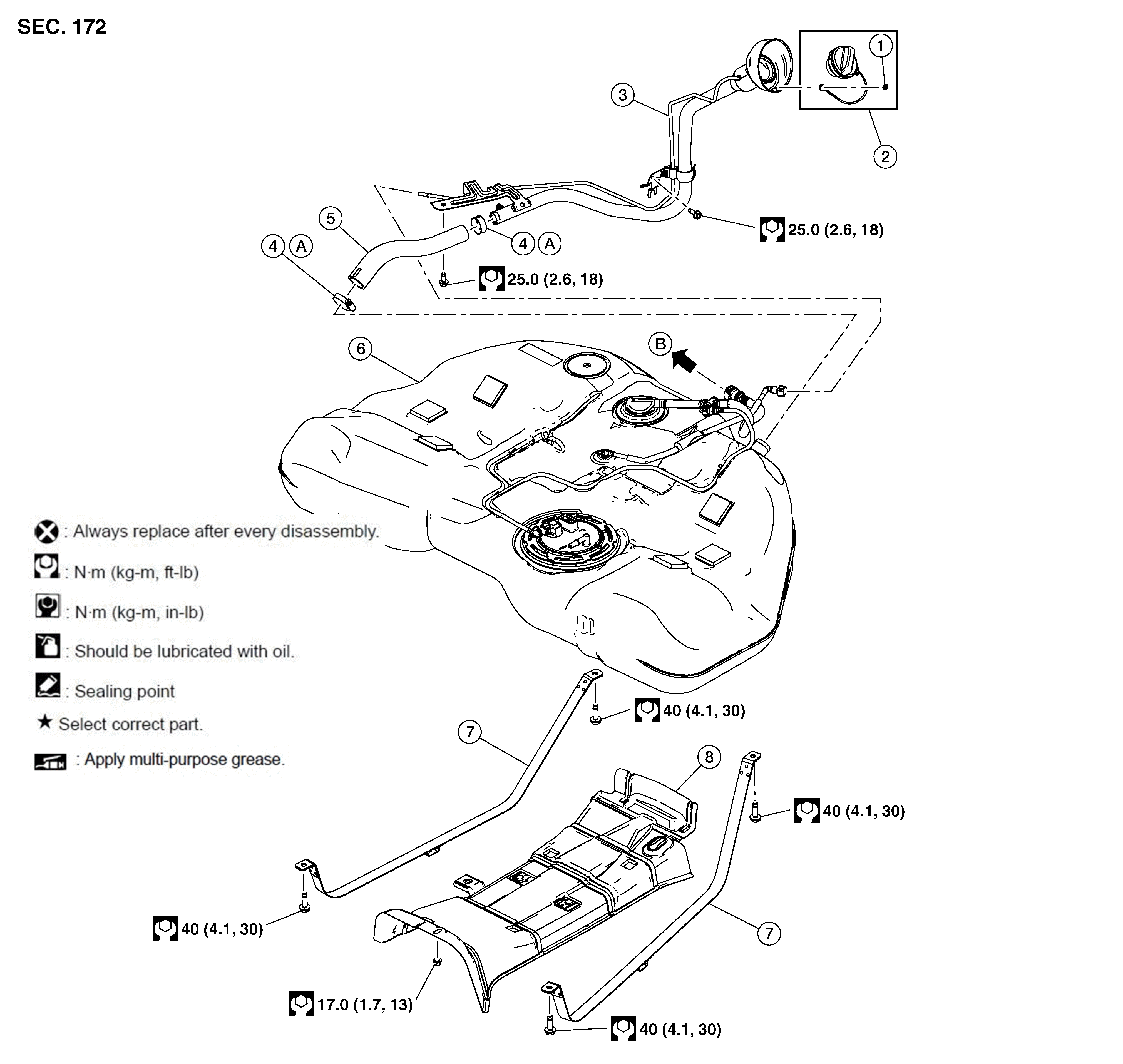

Fig 1: Fuel Tank With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Clip	2.	Fuel filler cap	3.	Fuel filler hose
4.	Clamp	5.	Fuel filler hose lower	6.	Fuel tank
7.	Fuel tank strap	8.	Fuel tank protector	A.	Refer to Removal and Installation .
B.	To EVAP canister. Refer to EVAP CANISTER : Removal & Installation .
