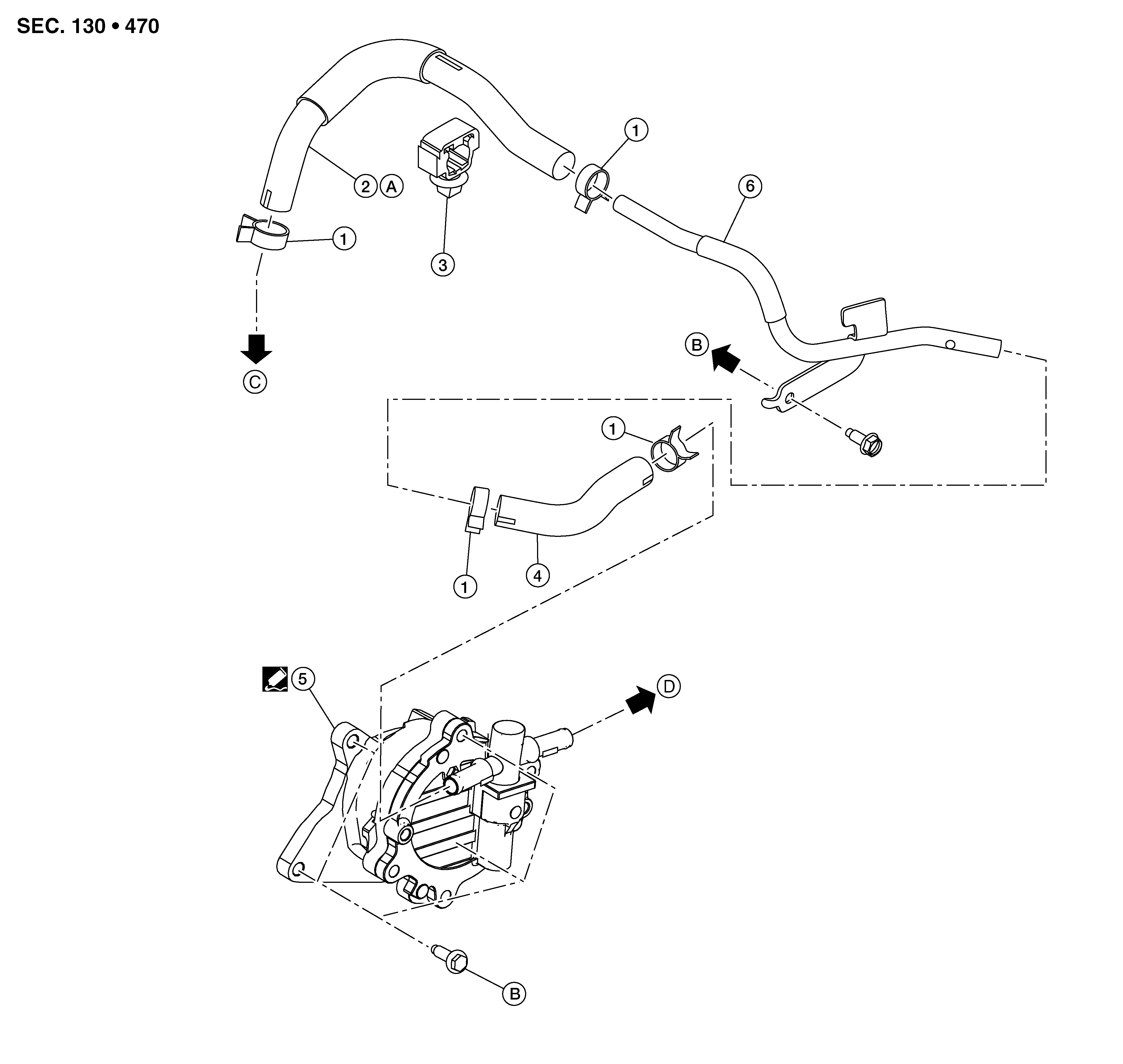

VACUUM PUMP : Exploded View

1.

Clamp

2.

Vacuum hose A

3.

Clip

4.

Vacuum hose B

5.

Vacuum pump

6.

Vacuum tube

A.

Refer to VACUUM PUMP : Removal & Installation .

B.

To water inlet pipe. Refer to Exploded View .

C.

To intake manifold. Refer to Exploded View .

D.

To vacuum hose. Refer to Exploded View .
