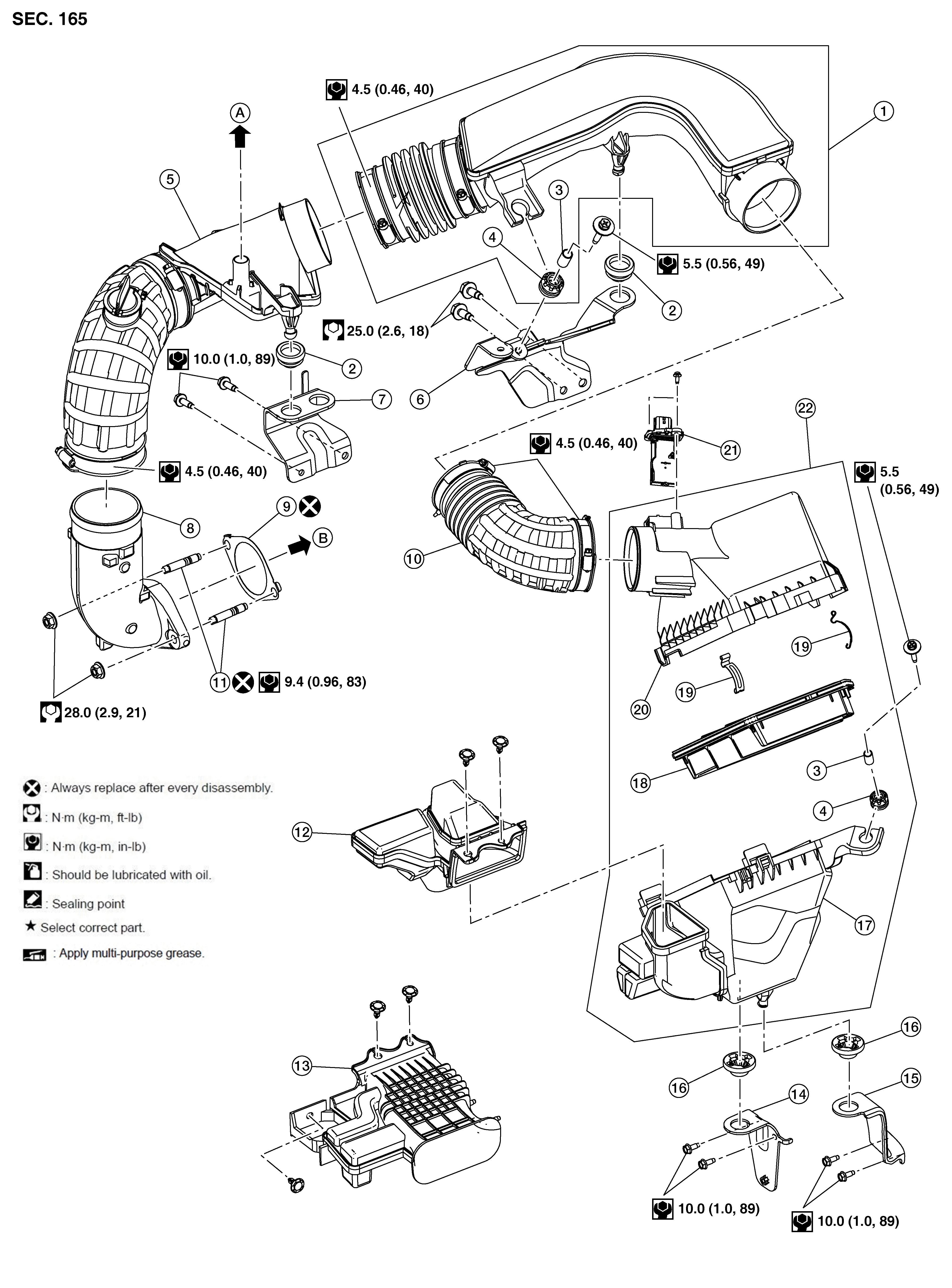

AIR CLEANER AND AIR DUCT : Exploded View
|
1. |
Air duct 1 |
2. |
Mounting rubber |
3. |
Grommet insert |
|
4. |
Grommet |
5. |
Air duct 2 |
6. |
Air duct 1 bracket |
|
7. |
Air duct 2 bracket |
8. |
Air inlet tube |
9. |
Air inlet tube gasket |
|
10. |
Air duct 3 |
11. |
Stud |
12. |
Air duct 4 |
|
13. |
Air duct 5 |
14. |
Air cleaner bracket A |
15. |
Air cleaner bracket B |
|
16. |
Mounting rubber |
17. |
Air cleaner housing (lower) |
18. |
Air cleaner filter |
|
19. |
Clip |
20. |
Air cleaner housing (upper) |
21. |
Mass air flow sensor |
|
22. |
Air cleaner assembly |
A. |
To air breather hose. Refer to Exploded View . |
B. |
To turbocharger. refer to TURBOCHARGER : Exploded View . |
