BATTERY TERMINAL WITH FUSIBLE LINK : Exploded View

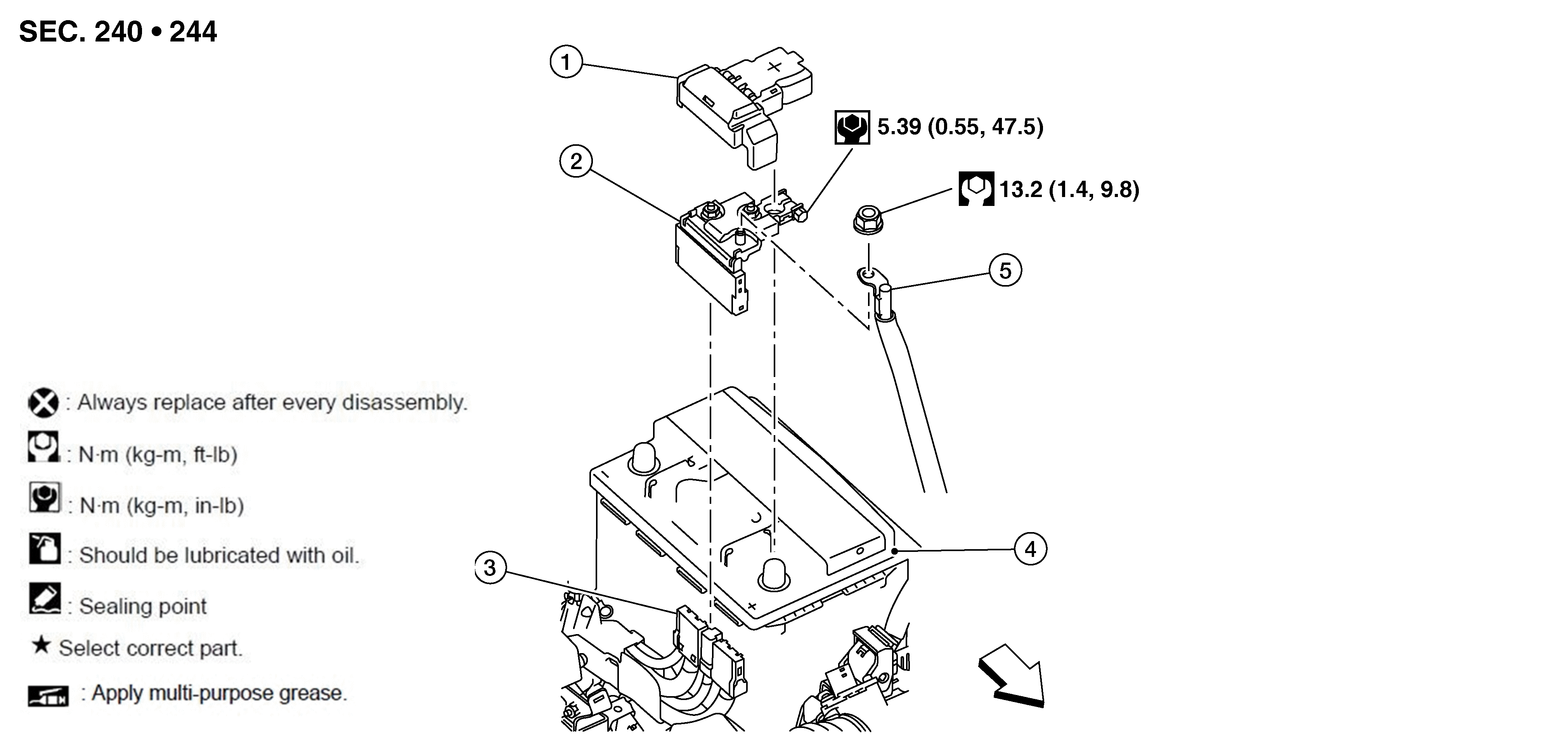

Fig 1: Battery Terminal With Fusible Link With Torque Specifications
GNSAWMIA0098Z-098Courtesy of NISSAN NORTH AMERICA, INC.

1.

Battery positive terminal cover

2.

Fusible link box (battery)

3.

Harness connectors

4.

Battery

5.

Battery positive cable
