BATTERY DISCONNECT : Removal & Installation: Removal

  1. Pull back battery cover to expose terminals.
  2. Pull back battery positive terminal cover.

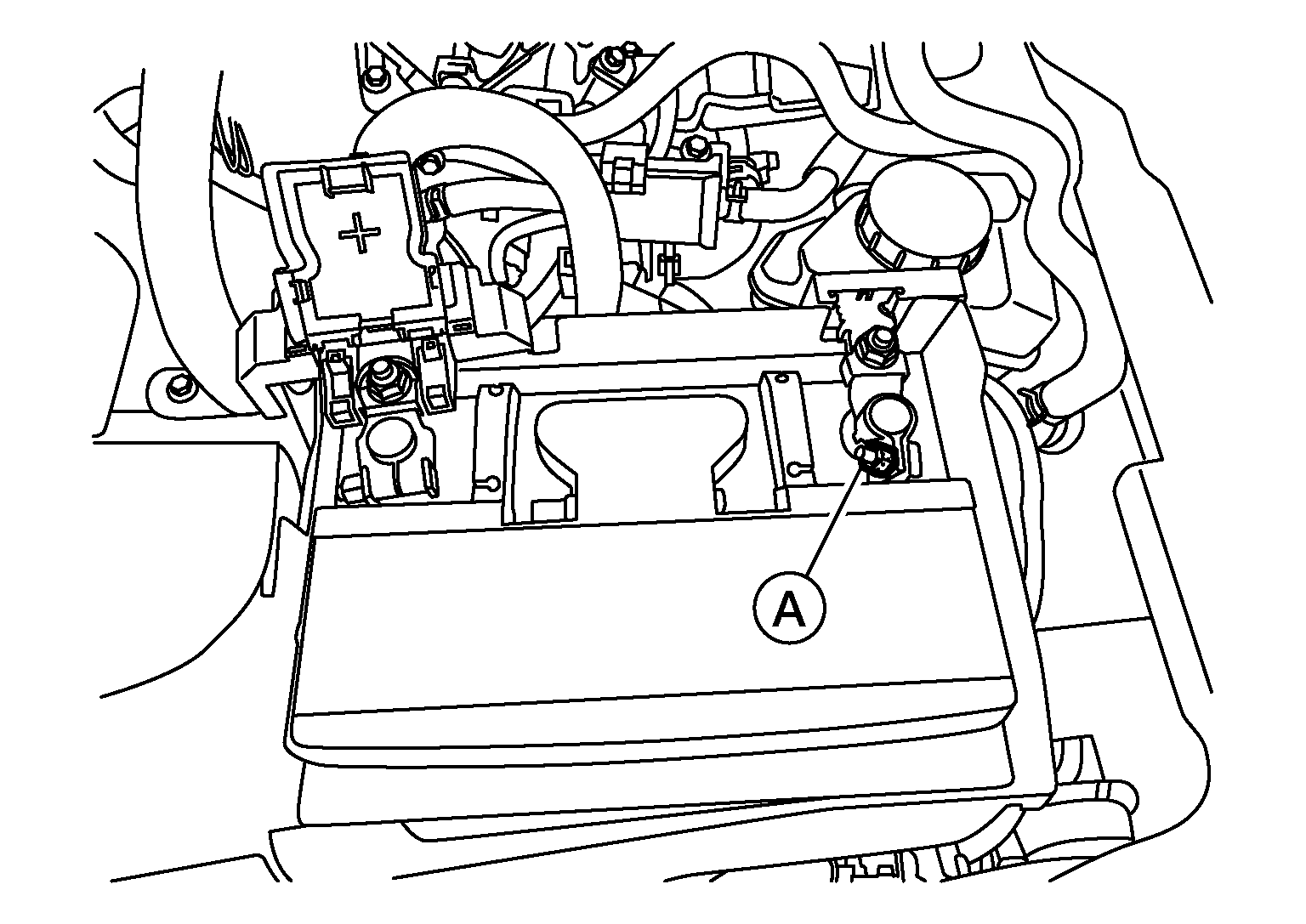

  3. Loosen the battery negative terminal nut (A) and remove the battery negative terminal.
    GNSALMIA0210Z-210Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: To prevent damage to the parts, disconnect the battery negative terminal first.

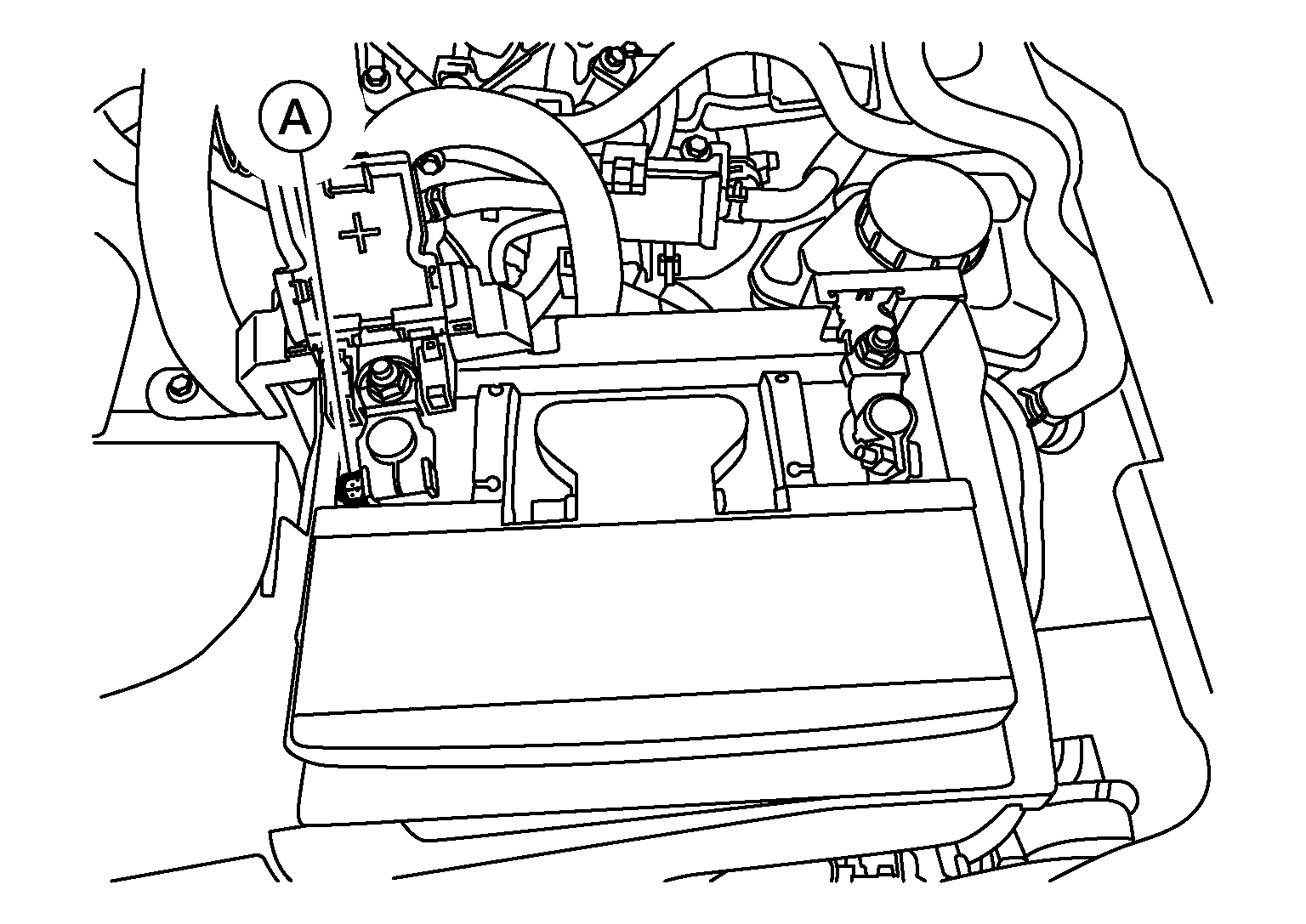

  4. Loosen the battery positive terminal nut (A) and remove the battery positive terminal.
    GNSALMIA0209Z-209Courtesy of NISSAN NORTH AMERICA, INC.
