BATTERY CURRENT SENSOR : Exploded View

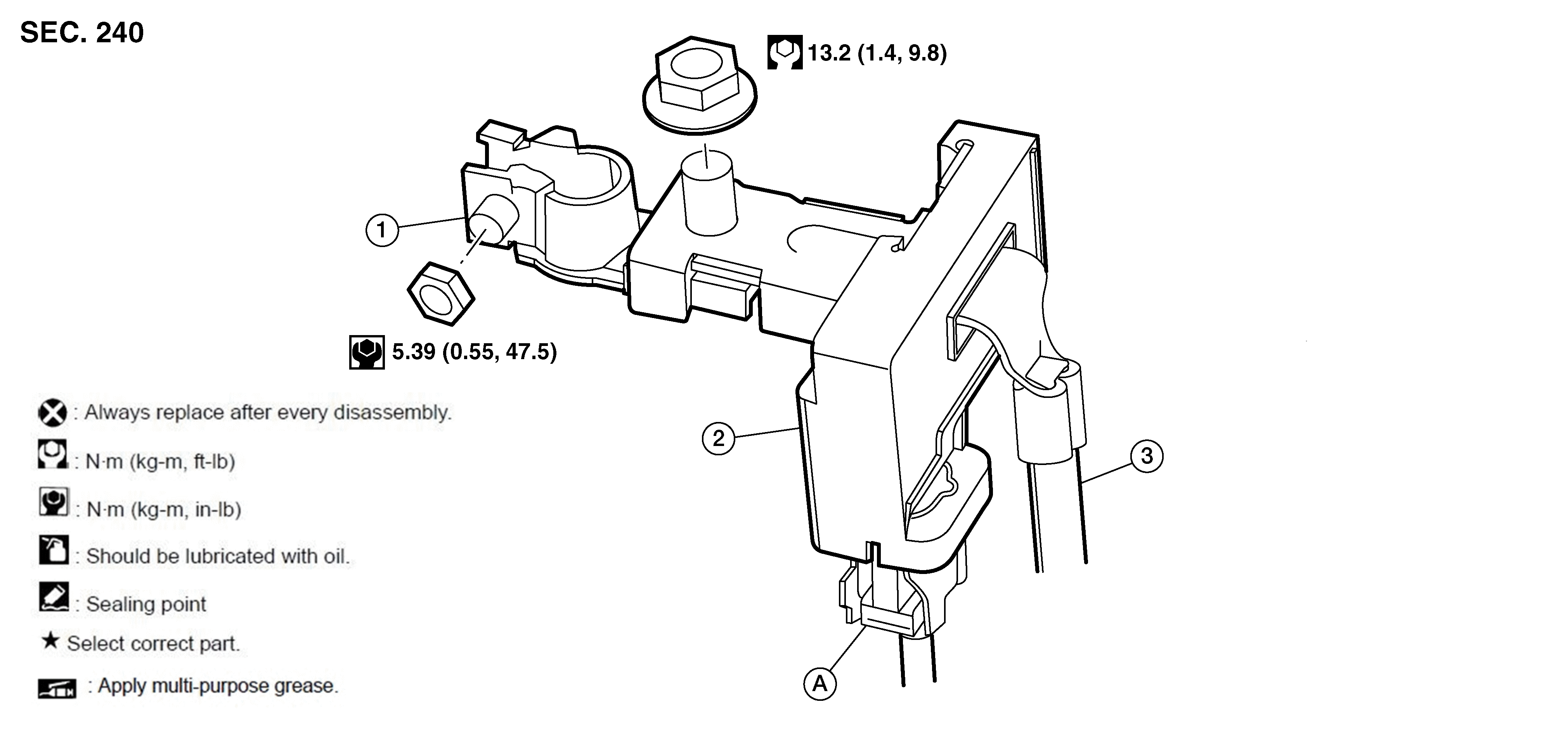

Fig 1: Battery Current Sensor With Torque Specifications
GNSALMIA0206Z-206Courtesy of NISSAN NORTH AMERICA, INC.

1.

Battery negative terminal

2.

Battery current sensor

3.

Battery negative cable

A.

Harness connector
