How/When to turn Extended Storage Switch ON/OFF

CAUTION:

Turn the ignition switch OFF when operating the extended storage switch.
Under normal conditions, keep the extended storage switch in ON state. Never operate the extended storage switch except when necessary.

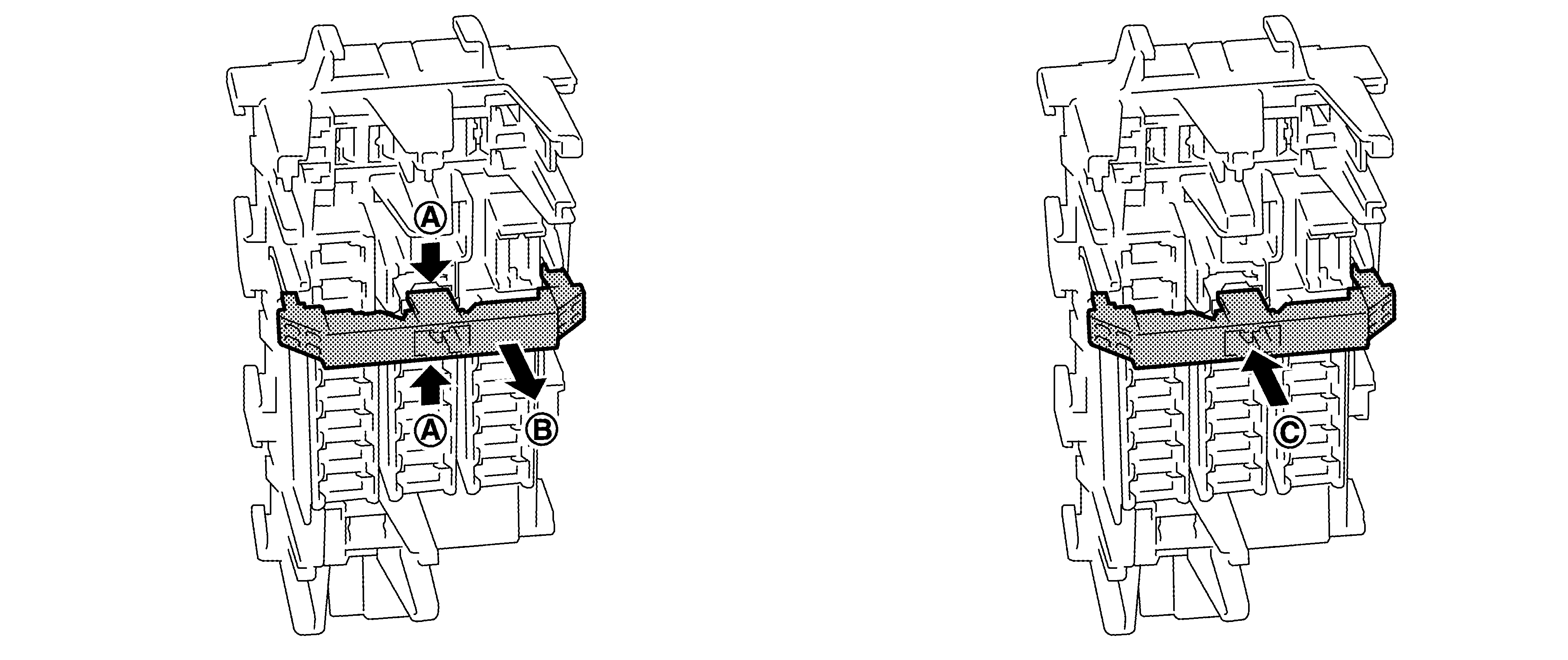

Type A

Courtesy of NISSAN NORTH AMERICA, INC.
- To turn the extended storage switch OFF, pull out in direction as shown in the figure.
- To turn the extended storage switch ON, press in direction as shown in the figure.

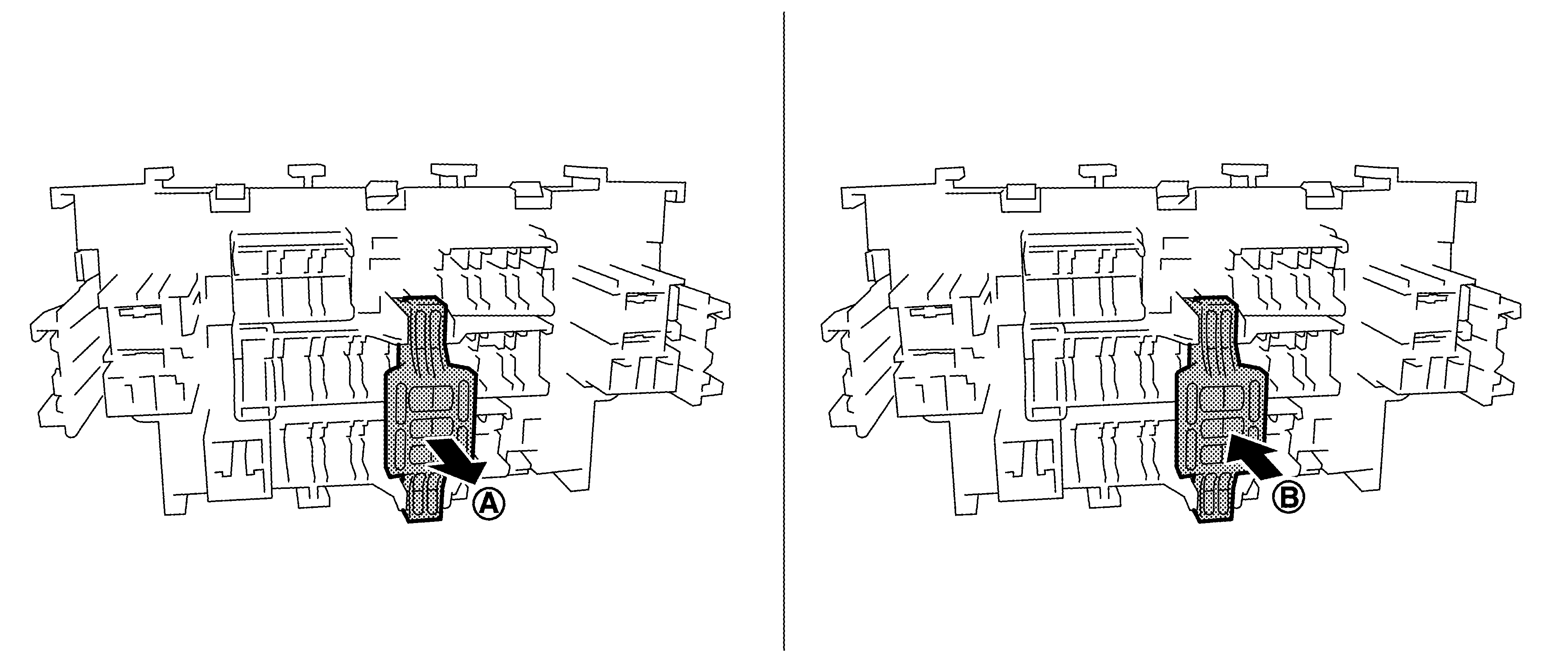

Type B

Courtesy of NISSAN NORTH AMERICA, INC.
- To turn the extended storage switch OFF, pinch tabs of the switch and pull out in direction as shown in the figure.
- To turn the extended storage switch ON, press in direction as shown in the figure.

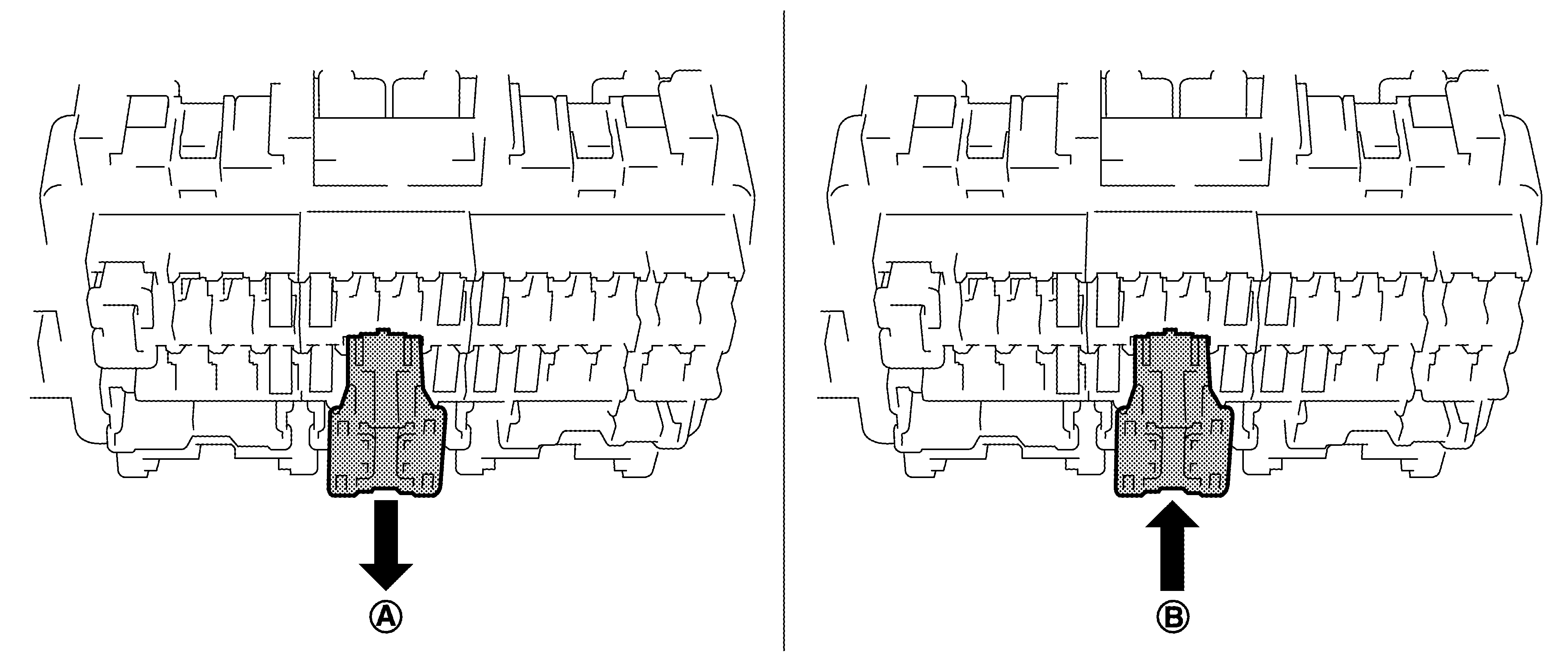

Type C

Courtesy of NISSAN NORTH AMERICA, INC.
- To turn the extended storage switch OFF, pull out in direction as shown in the figure.
- To turn the extended storage switch ON, press in direction as shown in the figure.
