How To Remove Extended Storage Switch

Type A

  1. Turn the ignition switch OFF.
  2. Turn the extended storage switch OFF.
  3. Pinch tabs SYMBOL and tilt to disengage the extended storage switch. Pinch tabs SYMBOL to remove the extended storage switch.

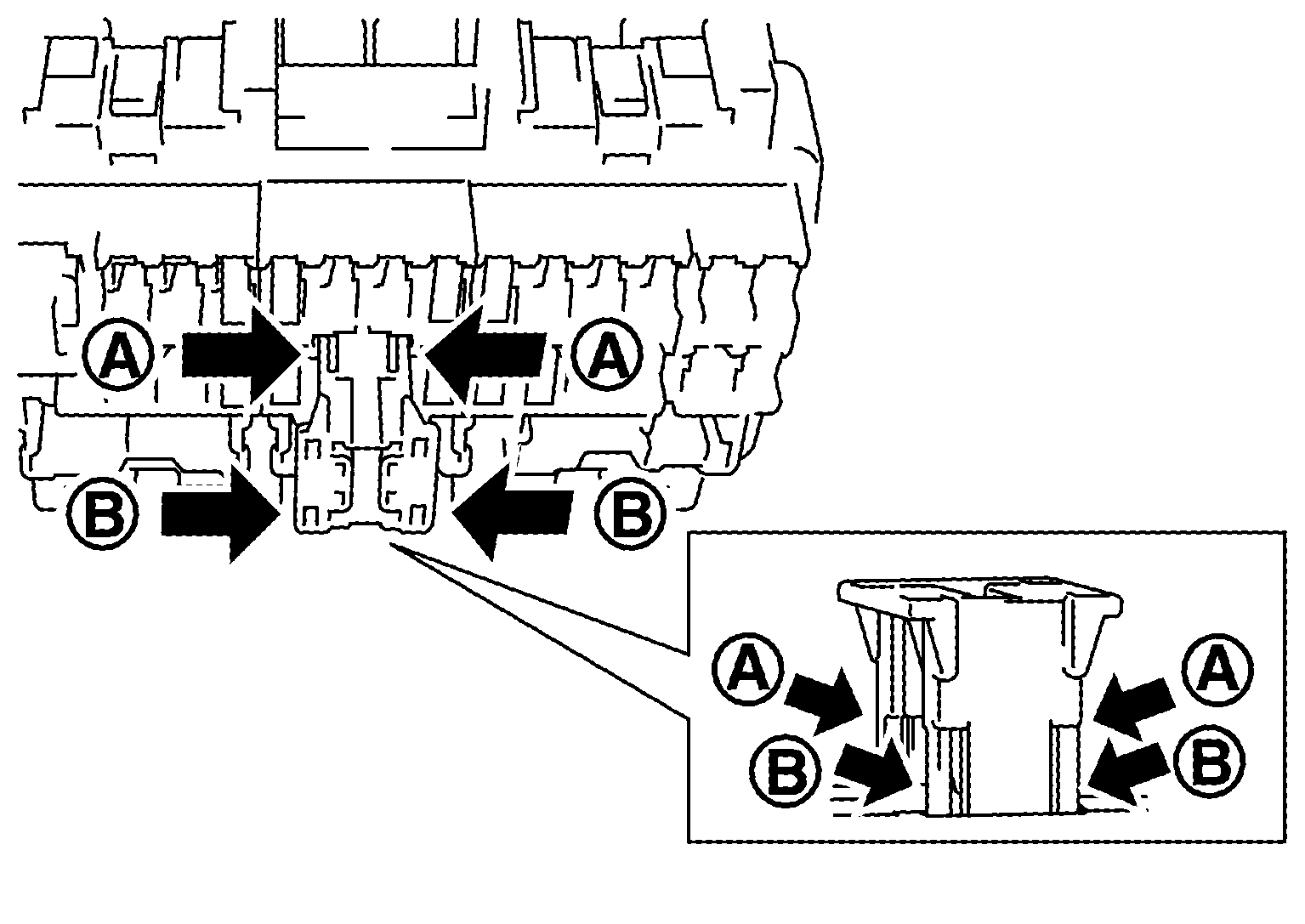

    GNSJSMIA0476Z-476Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: For bus bar type extended storage switch, never replace bus bar with a fuse, or fuse may continually open.
    NOTE:
    • Extended storage switch and fuse (or bus bar) are removed together. Remove fuse (or bus bar) from extended storage switch, if necessary.
    • Install removed fuse (or bus bar) to fuse block.
    • Extended storage switch is for transportation and storage. Reinstallation of switch is not required after removal, but fuse (or bus bar) must be reinstalled/pushed back in to activate all electrical systems and turn message off (which may be shown in meter/display).

Type B

  1. Turn the ignition switch OFF.
  2. Turn the extended storage switch OFF.
  3. Pinch tabs SYMBOL and firmly pull out the extended storage switch in SYMBOL direction.

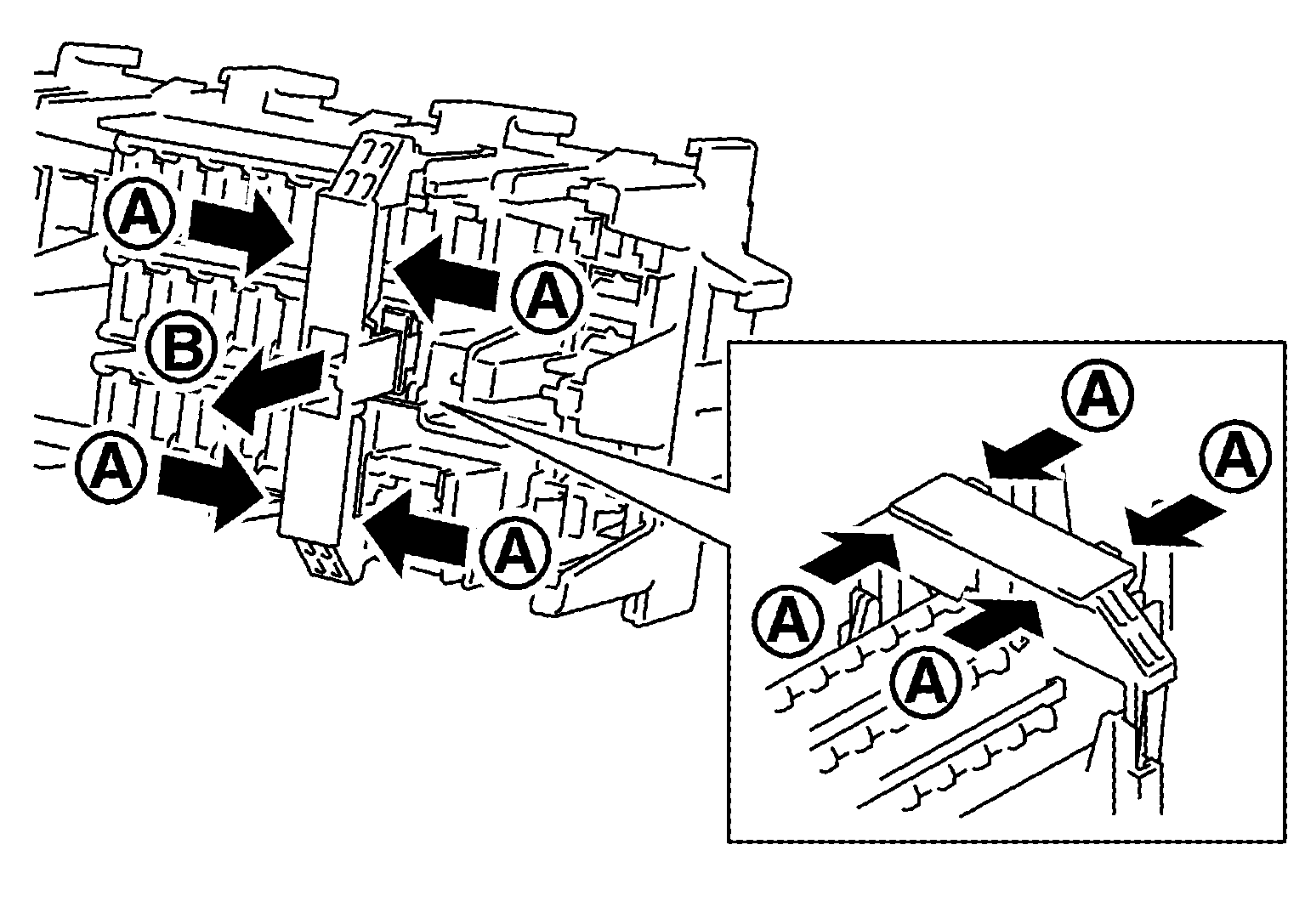

    GNSJSMIA0477Z-477Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: For bus bar type extended storage switch, never replace bus bar with a fuse, or fuse may continually open.
    NOTE:
    • Extended storage switch and fuse (or bus bar) may be removed together. Remove fuse (or bus bar) from extended storage switch, if necessary.
    • Install removed fuse (or bus bar) to fuse block.
    • Extended storage switch is for transportation and storage. Reinstallation of switch is not required after removal, but fuse (or bus bar) must be reinstalled/pushed back in to activate all electrical systems and turn message off (which may be shown in meter/display).

Type C

  1. Turn the ignition switch OFF.
  2. Turn the extended storage switch OFF.
  3. Pinch tabs SYMBOL and firmly pull out the extended storage switch in SYMBOL direction.

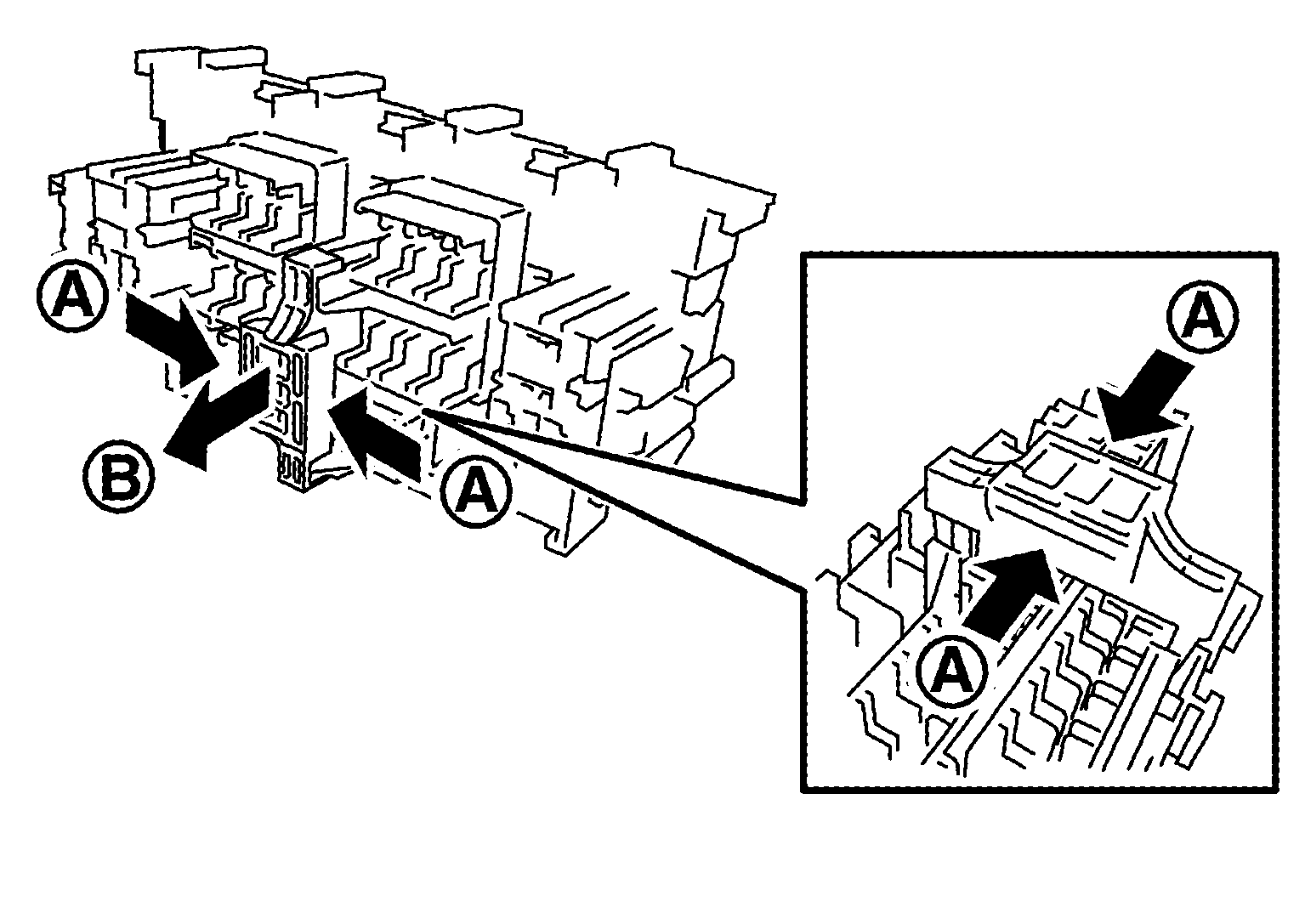

    GNSJSMIA0795Z-795Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: For bus bar type extended storage switch, never replace bus bar with a fuse, or fuse may continually open.
    NOTE:
    • Extended storage switch and fuse (or bus bar) are removed together. Remove fuse (or bus bar) from extended storage switch, if necessary.
    • Install removed fuse (or bus bar) to fuse block.
    • Extended storage switch is for transportation and storage. Reinstallation of switch is not required after removal, but fuse (or bus bar) must be reinstalled/pushed back in to activate all electrical systems and turn message off (which may be shown in meter/display).
