REAR PROPELLER SHAFT : Removal & Installation: Installation

Installation is in the reverse order of removal.

• Do not reuse electric controlled coupling assembly studs on rear final drive.
• Align matching marks to install propeller shaft assembly to electric controlled coupling assembly and transfer companion flanges.
• Tighten center bearing mounting bracket to specified torque in the sequence shown.
  CAUTION: Do not reuse nuts.

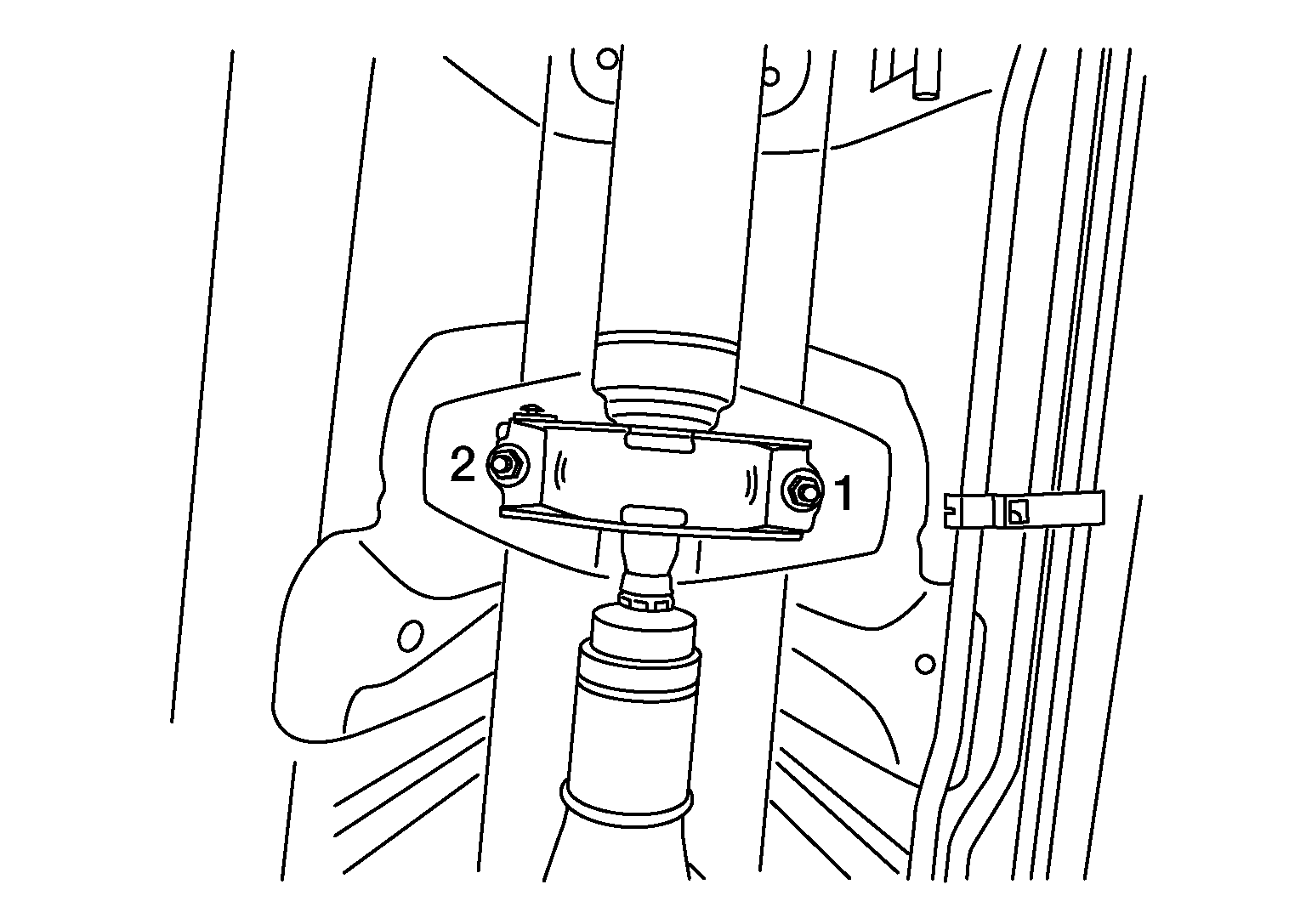

  Fig 1: Center Bearing Mounting Bracket Tightening Sequence

  Courtesy of NISSAN NORTH AMERICA, INC.

  Center bearing bracket bolts

  : 45.0 N.m (4.6 kg-m, 33 ft-lb)

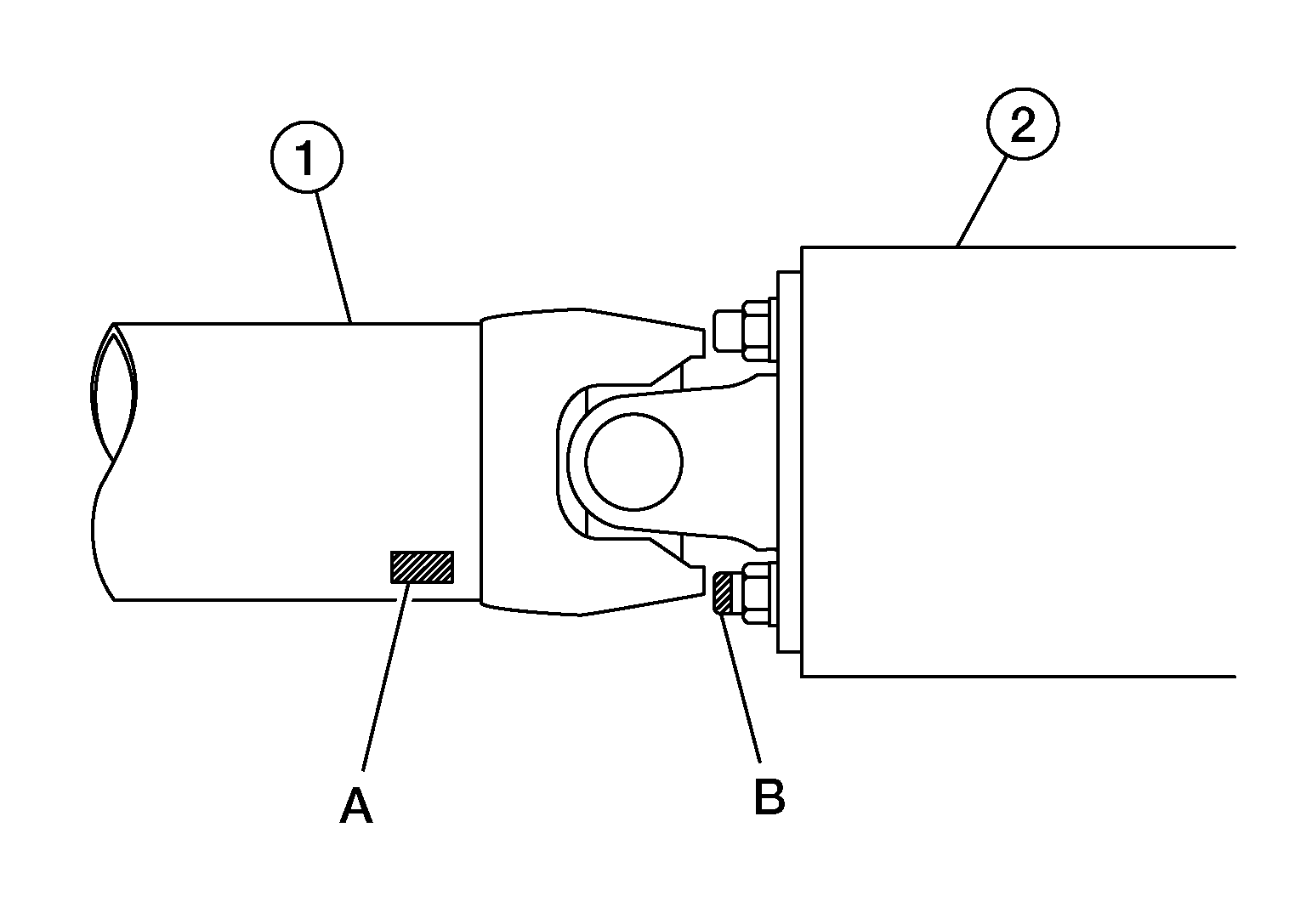

• Install propeller shaft (1) while aligning its matching mark (A) with the matching mark (B) of the final drive (2) on the joint as close as possible.

  Courtesy of NISSAN NORTH AMERICA, INC.

• Perform inspection after installation. Refer to REAR PROPELLER SHAFT : Inspection .
