Electric Controlled Coupling

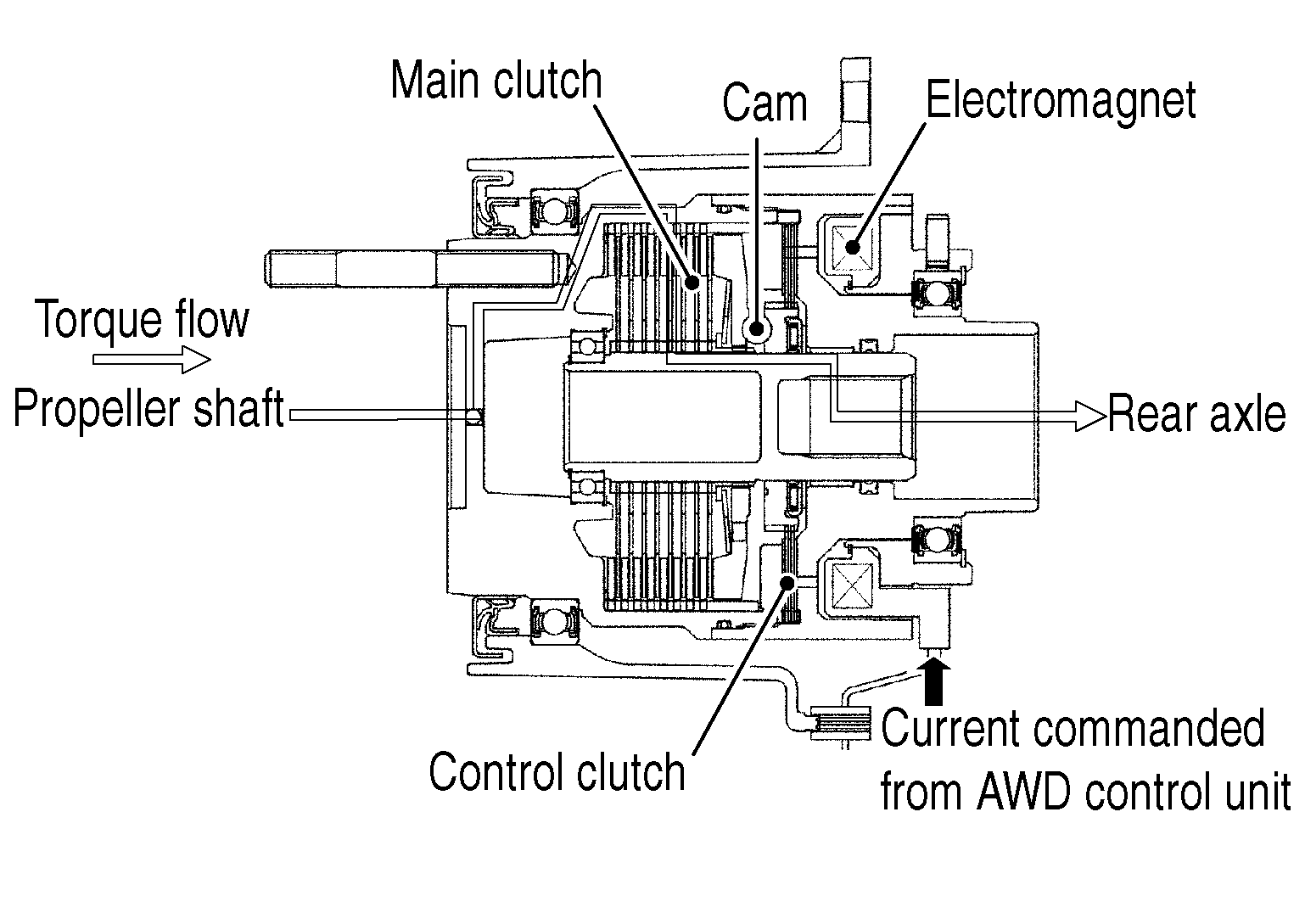

G08855970Courtesy of NISSAN NORTH AMERICA, INC.
  1. The AWD control unit supplies command current to electric controlled coupling (AWD solenoid).
  2. The control clutch is engaged by electromagnet and torque is detected in control clutch.
  3. The cam operates in response to control clutch torque and applies pressure to main clutch.
  4. The main clutch transmits torque to front wheels according to pressing power.
    • Transmission torque to the rear wheels is determined according to command current.
