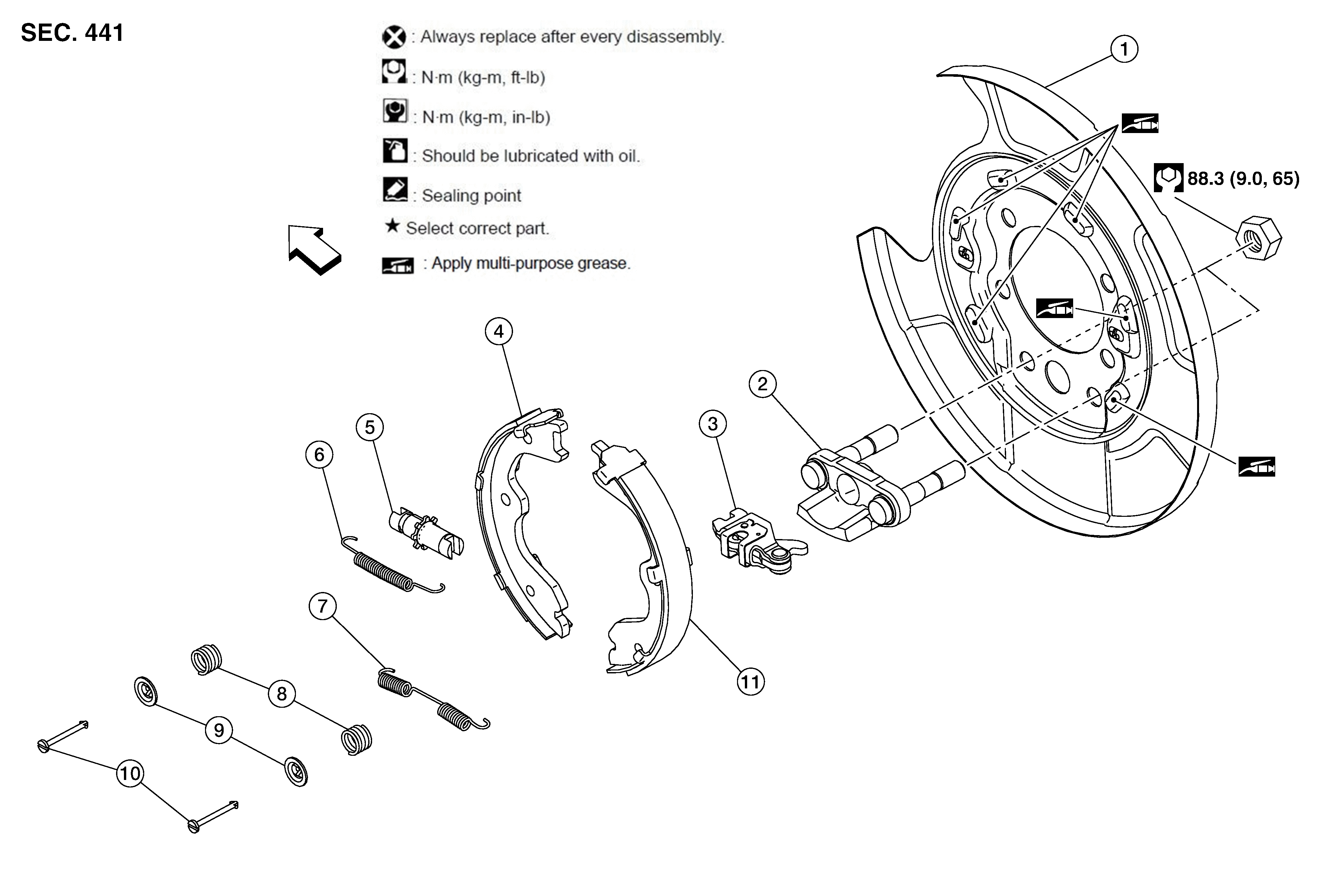

PARKING BRAKE SHOE : Exploded View
|
1. |
Back plate |
2. |
Anchor block |
3. |
Toggle lever |
|
4. |
Parking brake shoe (front) |
5. |
Adjuster (RH/LH) |
6. |
Return spring (upper) |
|
7. |
Return spring (lower) |
8. |
Anti-rattle springs |
9. |
Anti-rattle spring retainers |
|
10. |
Anti-rattle pins |
11. |
Parking brake shoe (rear) |
||
|
|
|||||
