Parking Brake Shoe Inspection

Check the following items and replace the parts if necessary:

• Brake shoe sliding surfaces for excessive wear and damage
• Lining for excessive wear, damage, and peeling

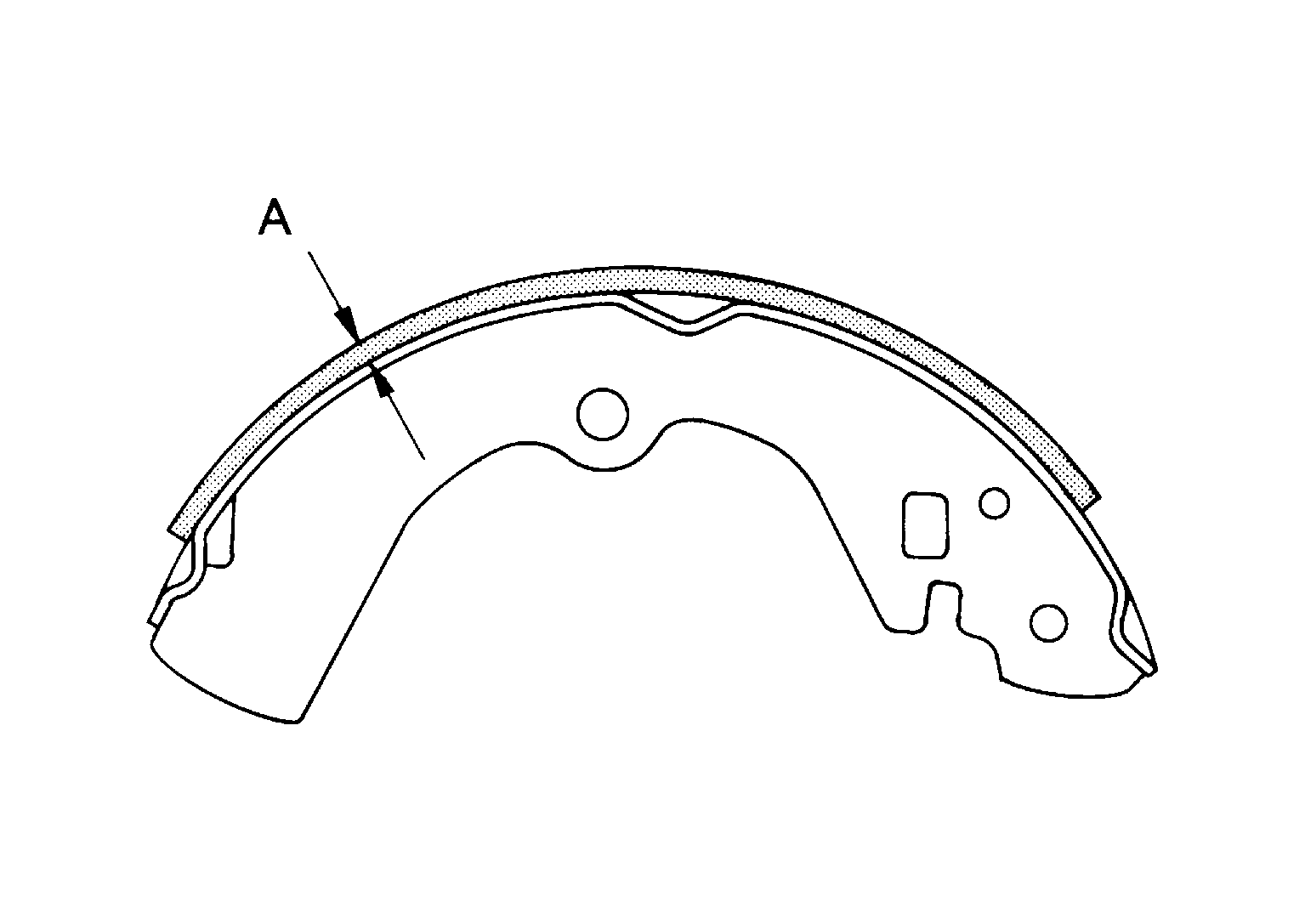

• Lining thickness (A)

  Courtesy of NISSAN NORTH AMERICA, INC.

  Wear limit thickness

  : Refer to Service Data .
