Work Procedure

Disconnecting the battery negative terminal with the parking brake on, prevents the parking brake from releasing. Releasing is performed mechanically.

1. DISCONNECT PARKING BRAKE ACTUATOR HARNESS CONNECTOR

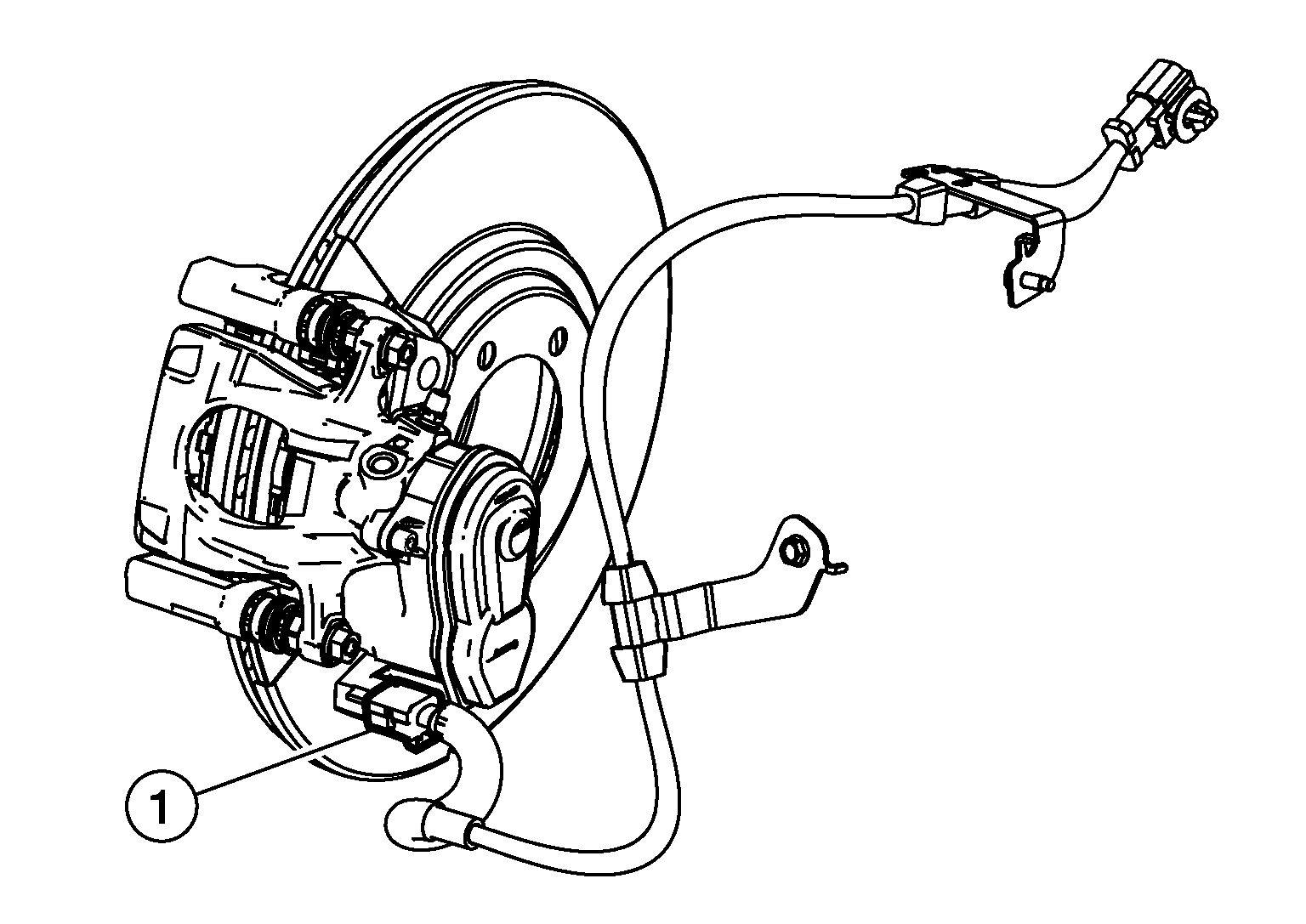

   1. Disconnect the parking brake actuator harness connector (1) from the rear caliper assembly.

      Courtesy of NISSAN NORTH AMERICA, INC.

   GO TO 2.

2. REMOVE PARKING BRAKE ACTUATOR

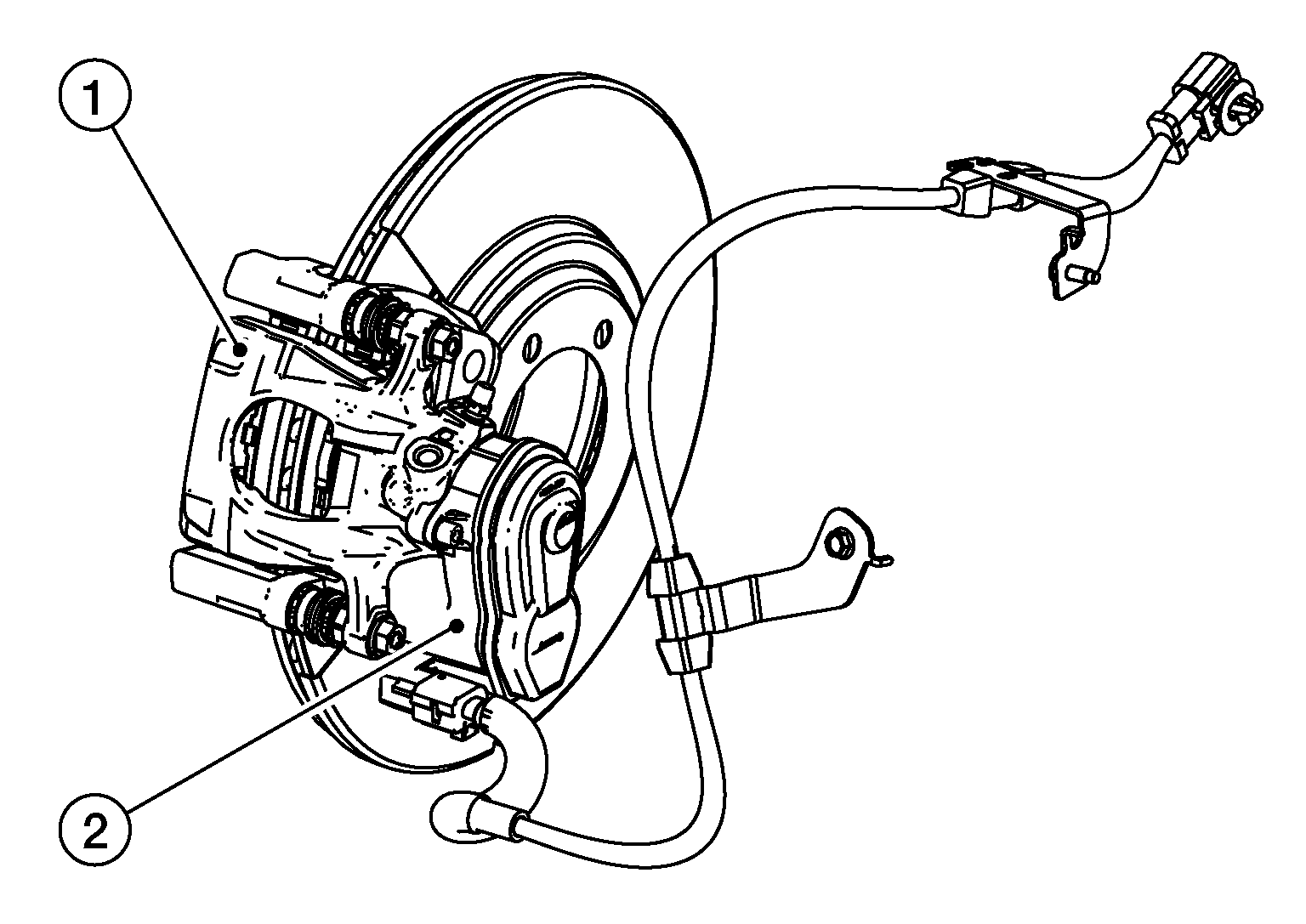

   Remove the parking brake actuator (2) from the rear brake caliper assembly (1).

   Courtesy of NISSAN NORTH AMERICA, INC.

   GO TO 3.

3. RELEASE OF PARKING BRAKE

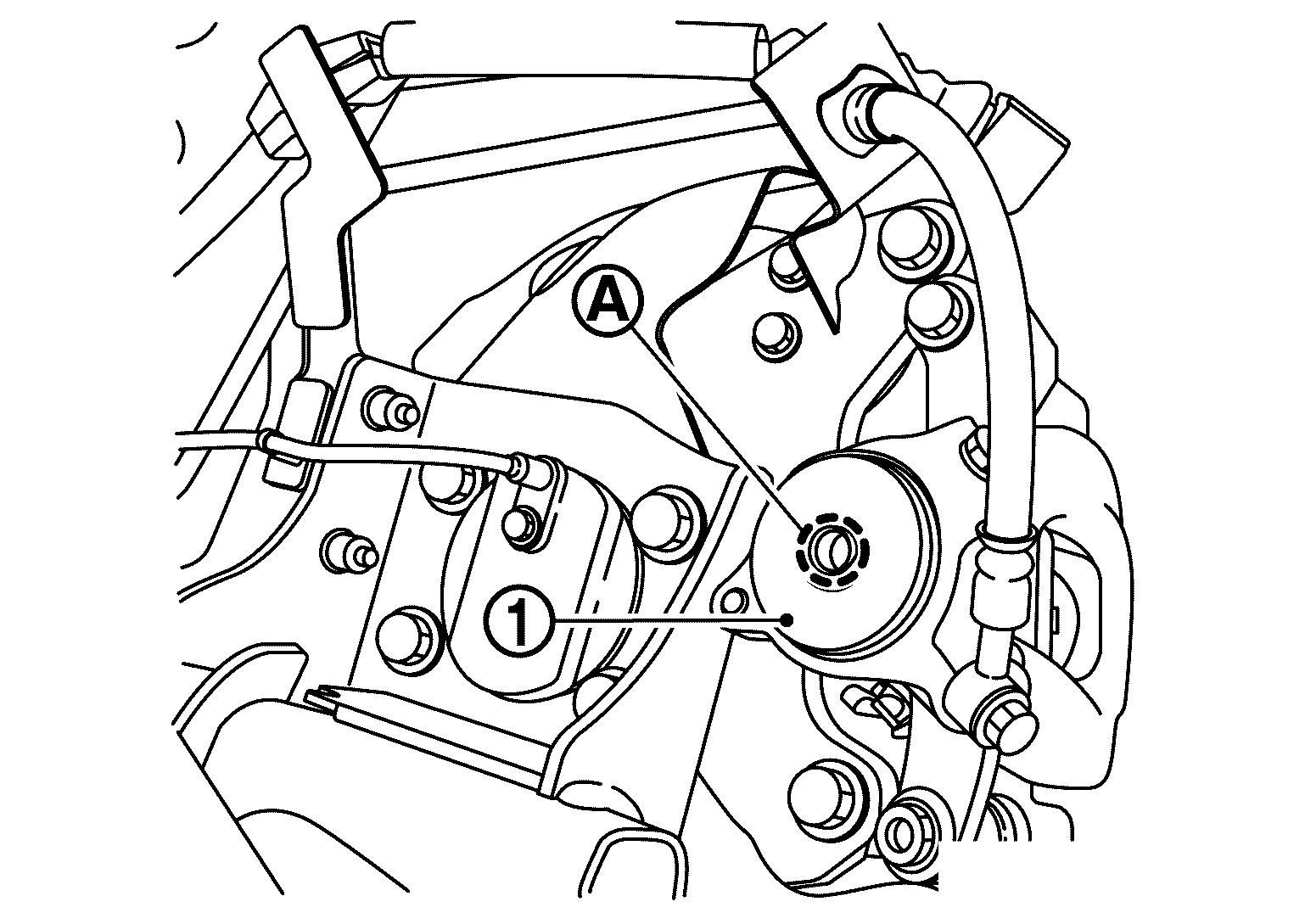

   Rotate the rear brake caliper assembly (1) spindle part (A) clockwise.

   Courtesy of NISSAN NORTH AMERICA, INC.

   Is the parking brake released?

   YES

   GO TO 4.

   NO

   Check the rear brake caliper assembly. Refer to REAR BRAKE CALIPER ASSEMBLY : Exploded View .

4. REPLACE REAR CALIPER ASSEMBLY

   Replace the rear caliper assembly. Refer to REAR BRAKE CALIPER ASSEMBLY : Removal & Installation .

   CAUTION: Never reuse the parking brake actuator.

   End of work.
