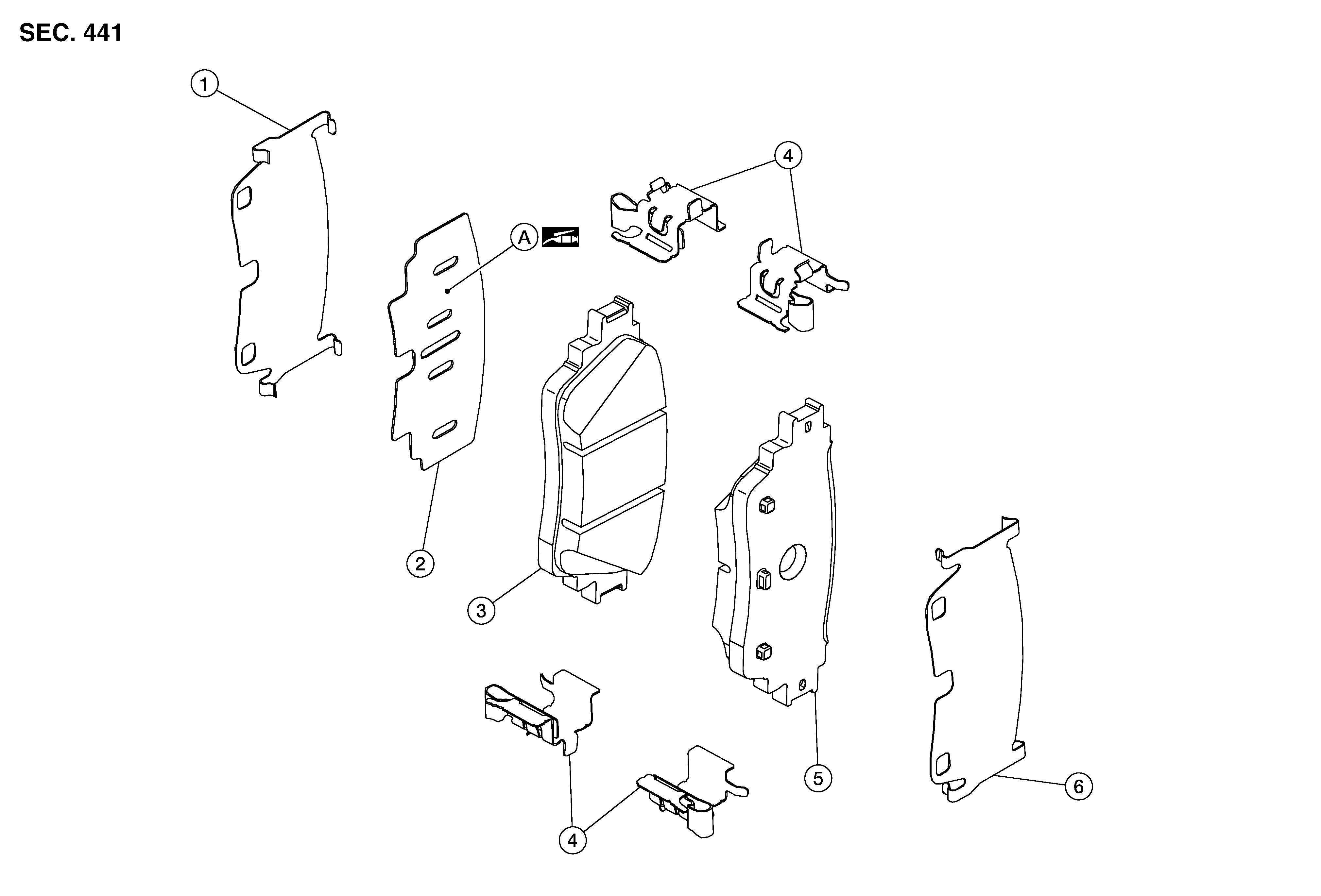

REAR BRAKE PAD : Exploded View
|
1. |
Inner shim cover |
2. |
Inner shim |
3. |
Inner pad |
|
4. |
Anti-rattle clips |
5. |
Outer pad |
6. |
Outer shim |
|
A. |
Daikalub 528D grease. Refer to Removal and Installation . |
