BRAKE BOOSTER : Exploded View
BRAKE BOOSTER : Exploded View

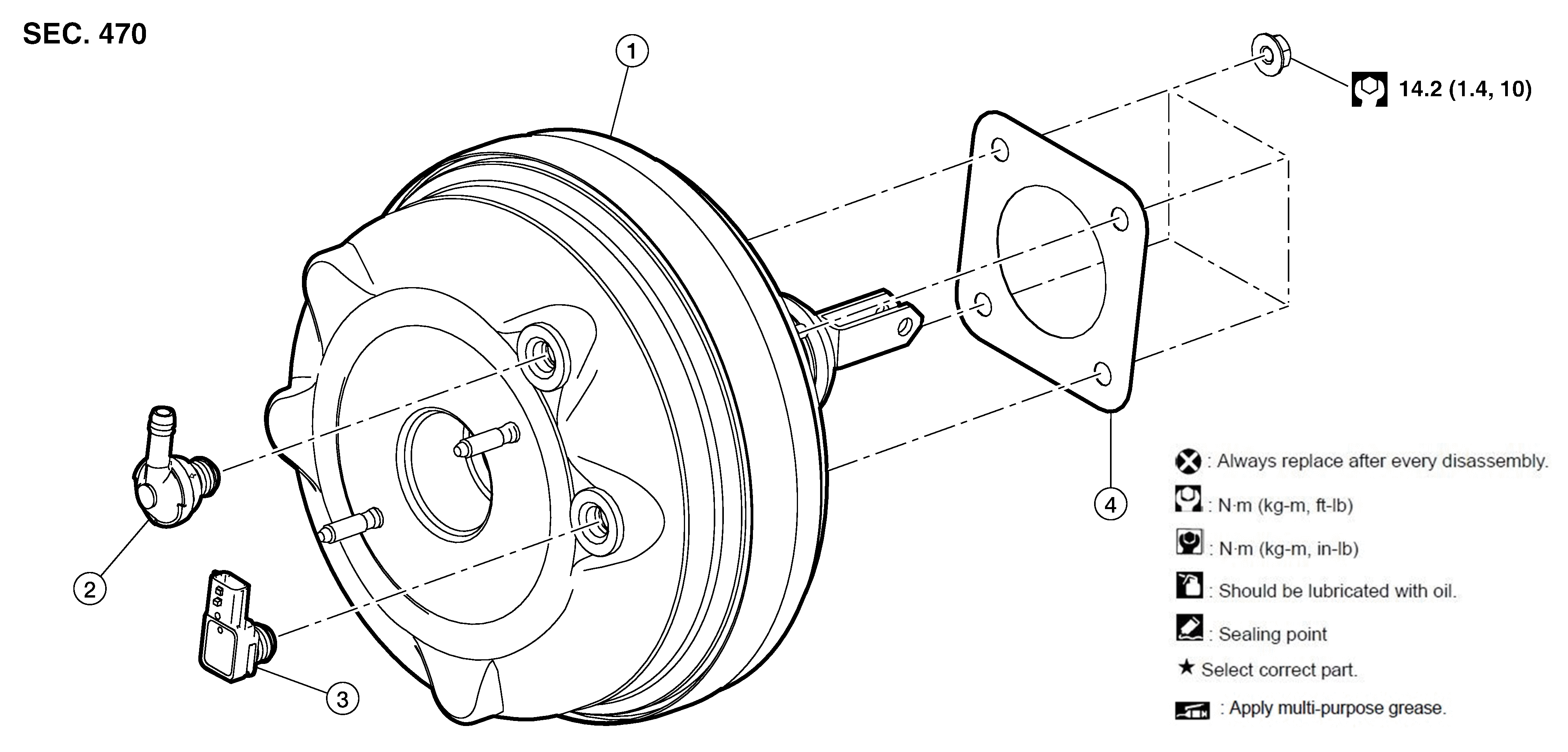

Fig 1: Brake Booster With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Brake booster
2.
Check valve
3.
Vacuum sensor
4.
Gasket
Courtesy of NISSAN NORTH AMERICA, INC.
