Home >> Nissan-Datsun >> 2019 >> Altima Edition ONE >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Exterior Lighting System - Led Headlamp >> Wiring Diagram >> Headlamp >> Wiring Diagram

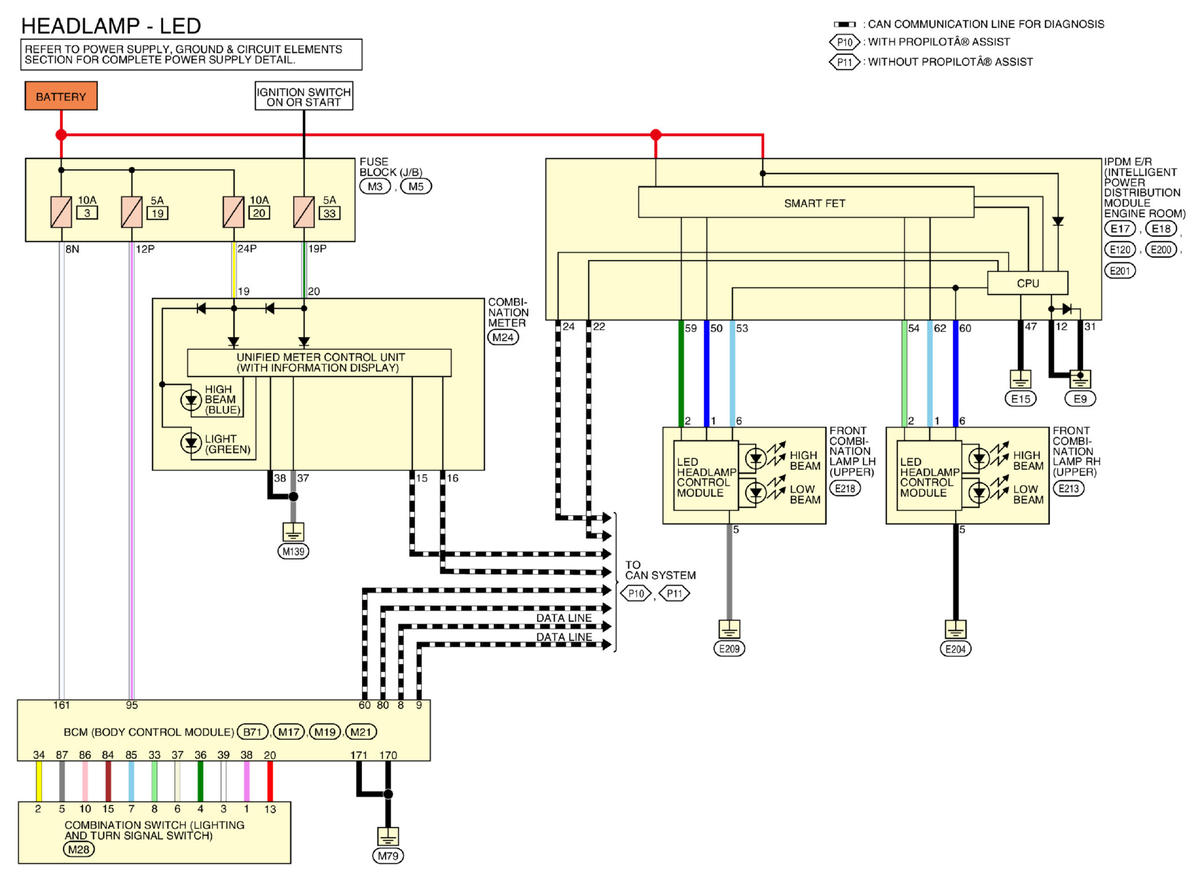

Exterior Lighting System - Led Headlamp: Wiring Diagram: Headlamp: Wiring Diagram

GNSW9377

Courtesy of EWD
