Exterior Lighting System - Led Headlamp
>>
System Description
>>
Component Parts
>>
LED Headlamp Control Module
LED Headlamp Control Module

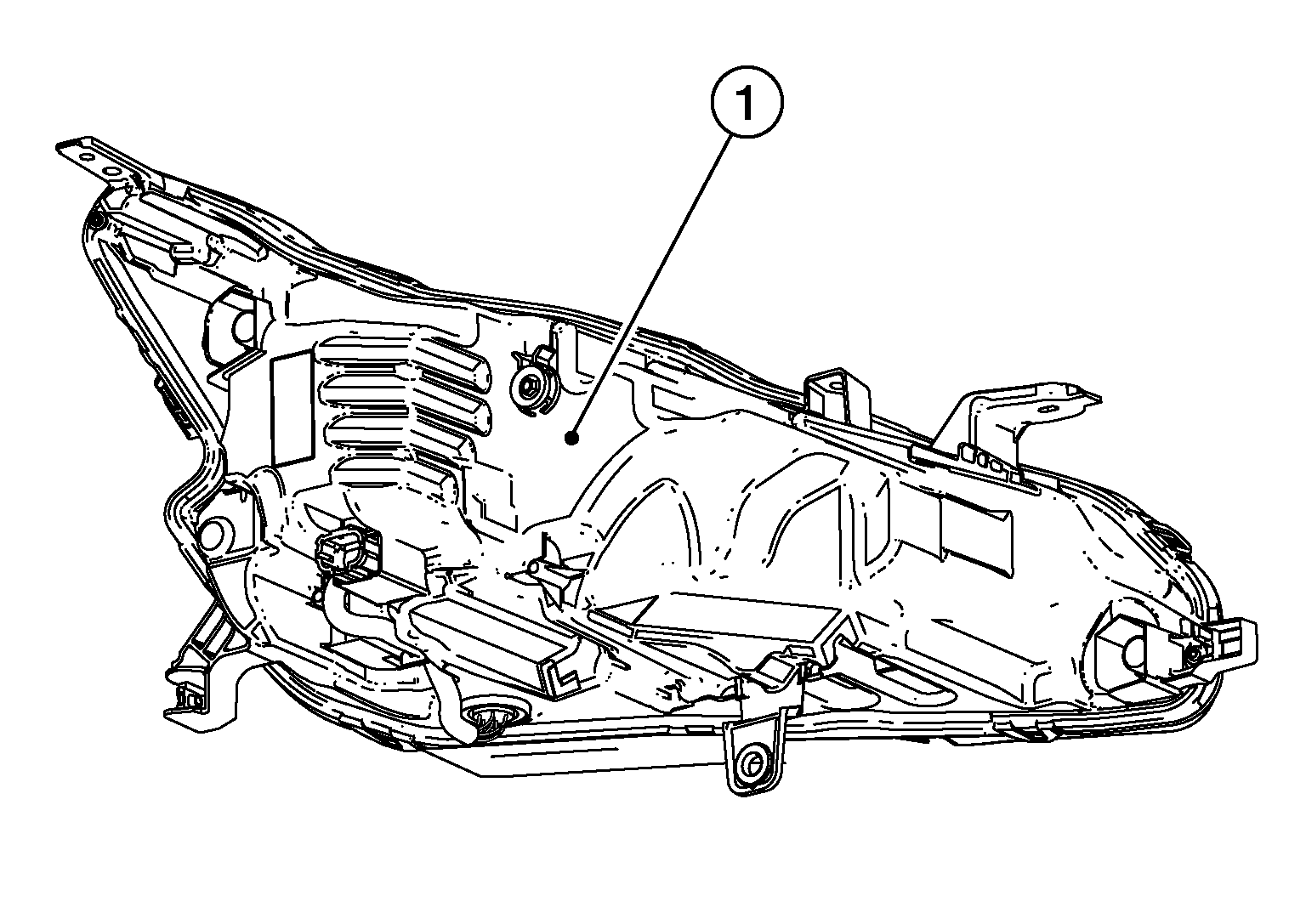

LED headlamp control module (1) is integrated in the front combination lamp and turns the LED headlamp ON according to the request from IPDM E/R.
Courtesy of NISSAN NORTH AMERICA, INC.
Outputs the headlamp warning signal to the combination meter.
Courtesy of NISSAN NORTH AMERICA, INC.
