REAR COMBINATION LAMP (BODY SIDE) : Exploded View

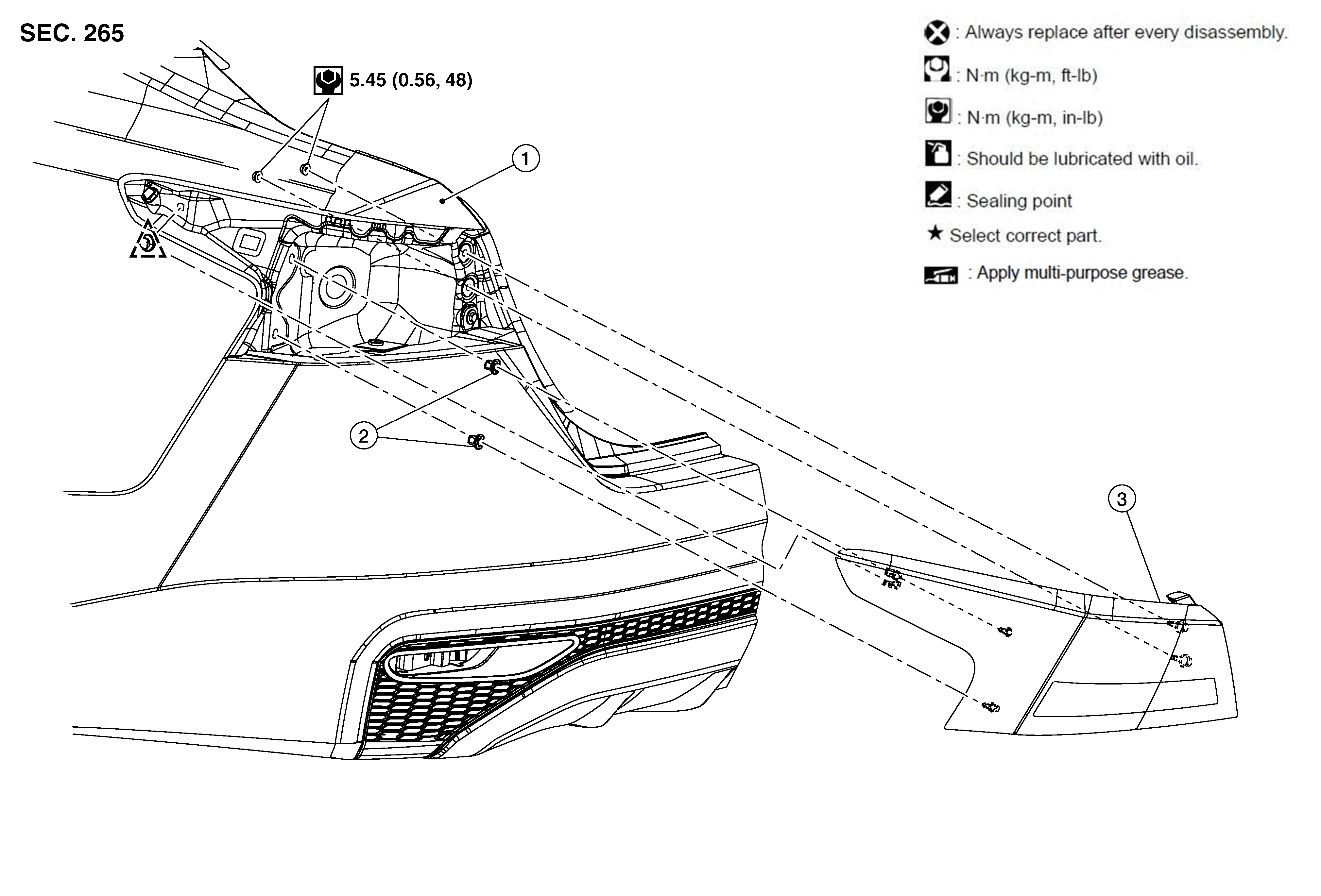

Fig 1: Rear Combination Lamp (Body Side) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear fender	2.	Grommet	3.	Rear combination lamp (body side)
	Clip
