High-Mounted Stop Lamp
>>

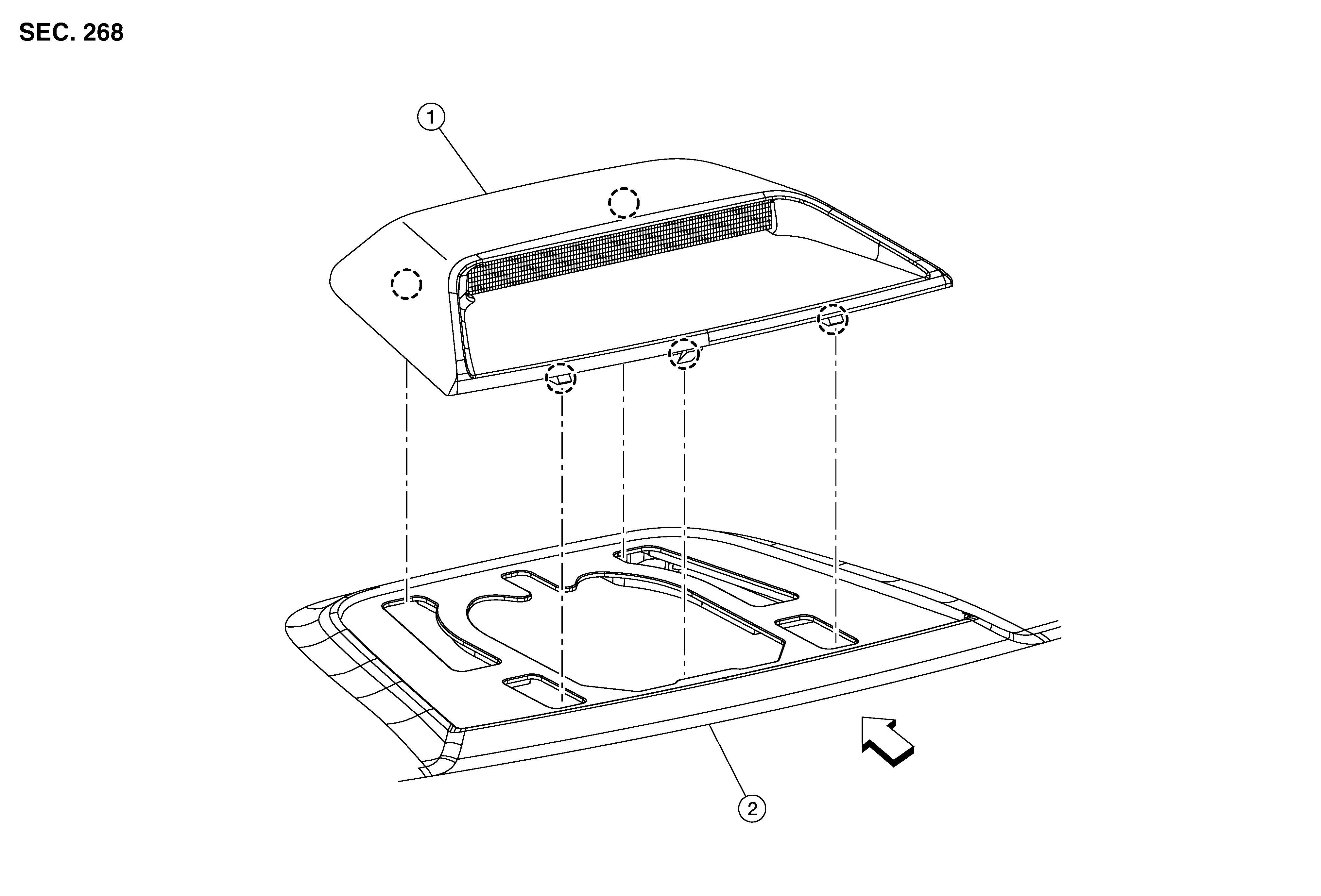

HIGH-MOUNTED STOP LAMP : Exploded View
HIGH-MOUNTED STOP LAMP : Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
High-mounted stop lamp
2.
Rear parcel shelf finisher
Pawl
Front
