Exterior Lighting System - Led Headlamp
>>
Removal And Installation
>>
Front Turn Signal/Parking Lamp
>>
Exploded View
Exploded View

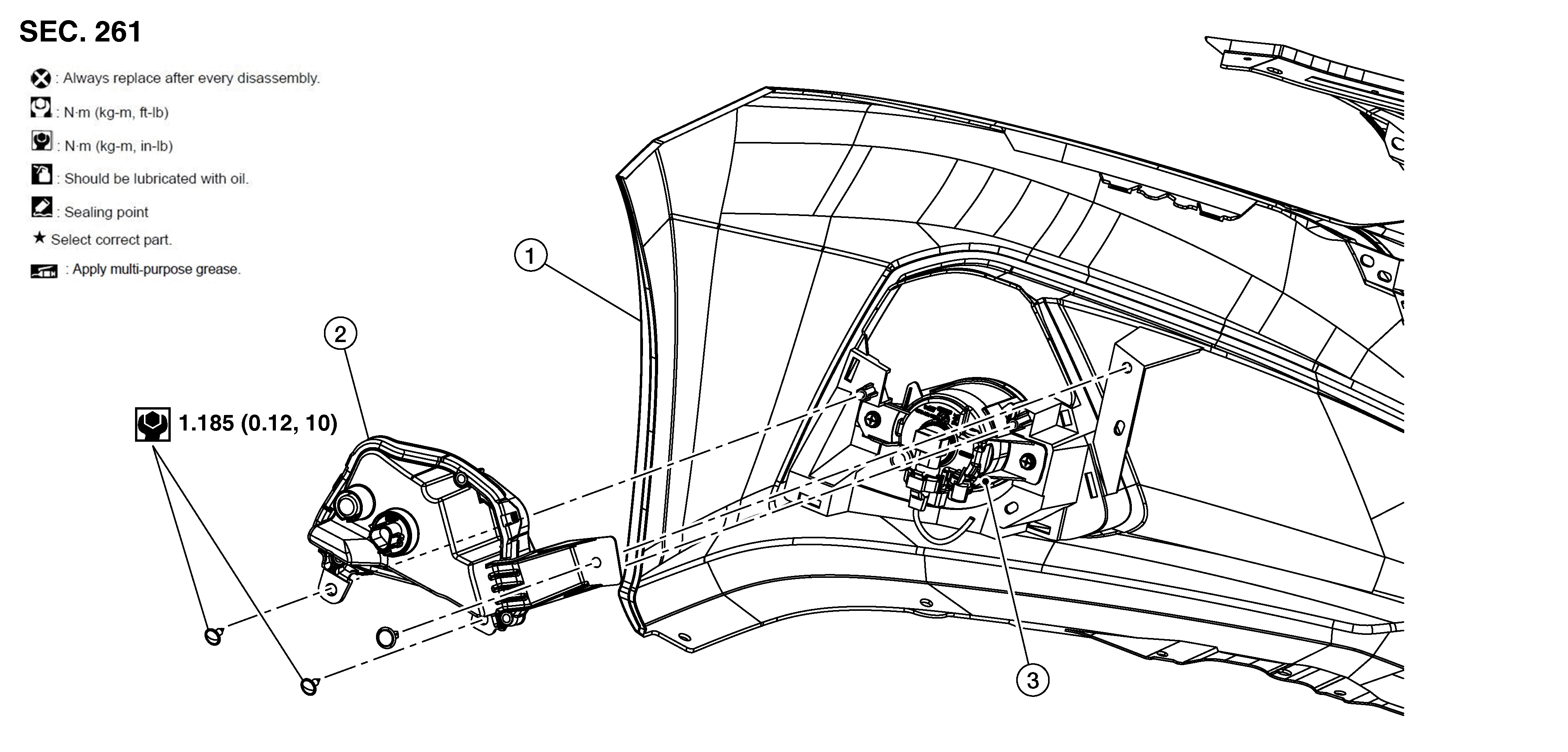

Fig 1: Front Turn Signal/Parking Lamp With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Front fender fascia
2.
Front turn signal/parking lamp
3.
Front fog lamp
