Exterior Lighting System - Led Headlamp
>>
Removal And Installation
>>
Front Combination Lamp
>>

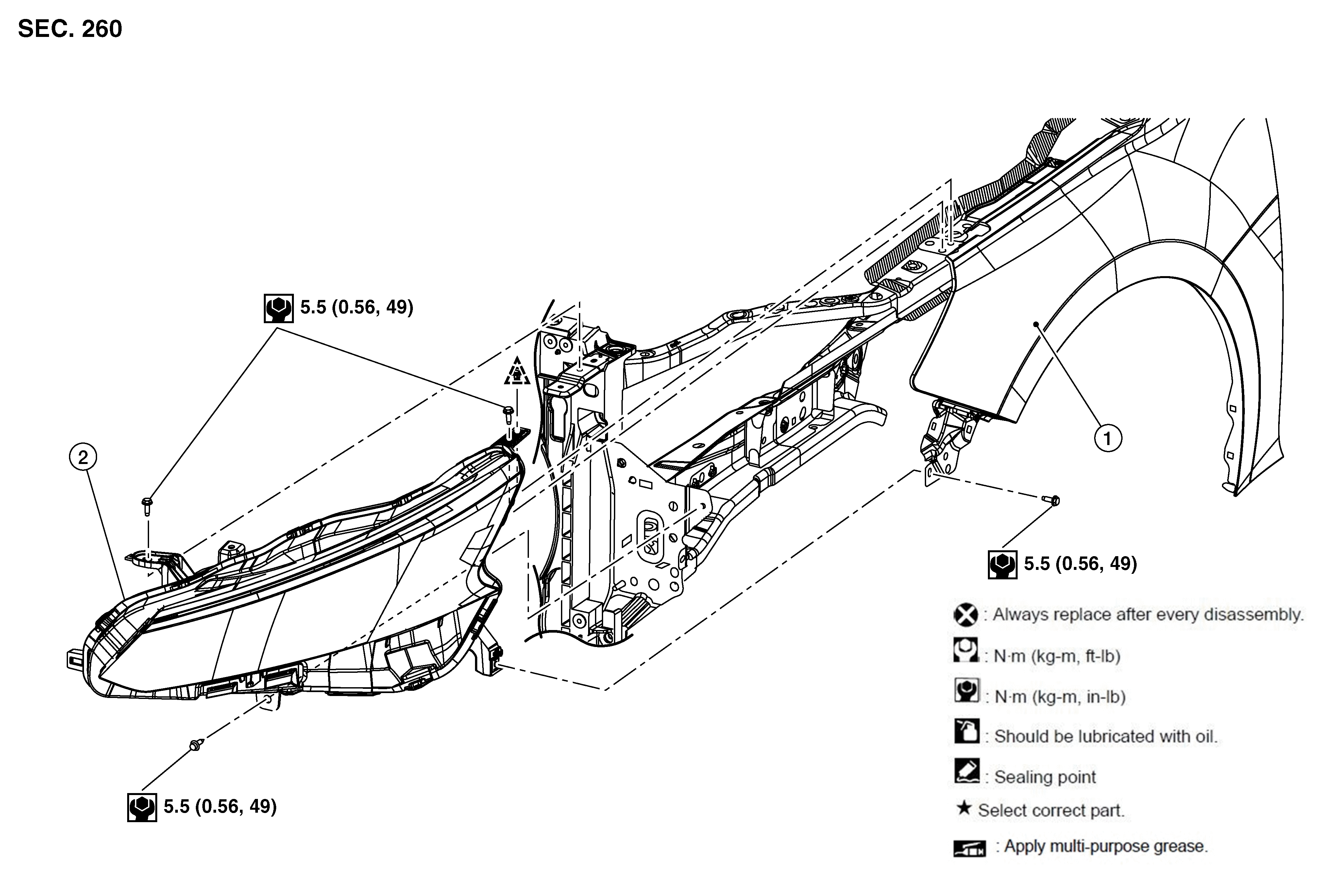

FRONT COMBINATION LAMP : Exploded View
FRONT COMBINATION LAMP : Exploded View
Fig 1: Front Combination Lamp With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Front fender
2.
Front combination lamp
Courtesy of NISSAN NORTH AMERICA, INC.
