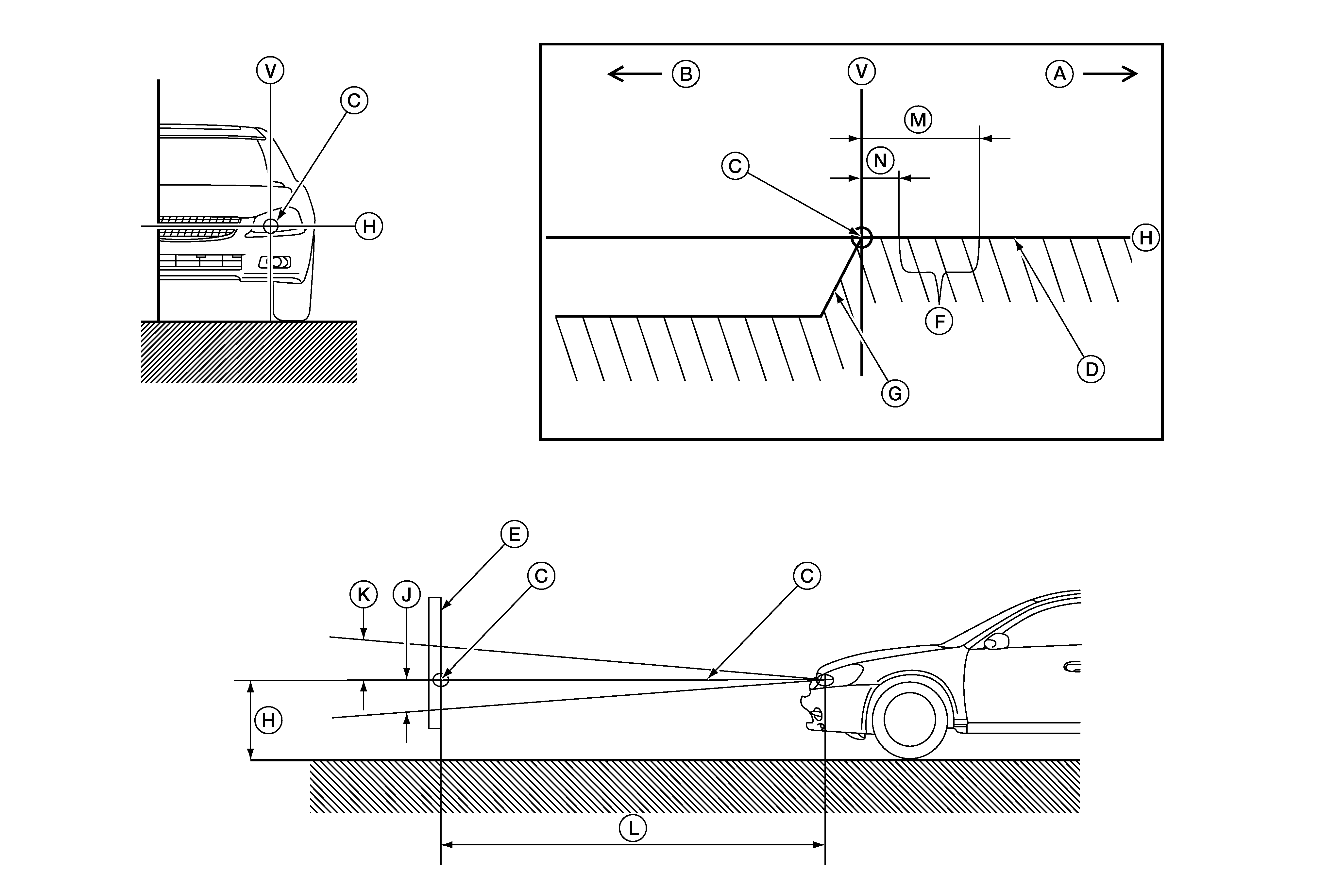

LED Headlamp: Aiming

A.

Right

B.

Left

C.

Headlamp bulb center (H-V point)

D.

Cutoff line

E.

Screen

F.

Aim evaluation area

G.

Step

H.

Horizontal center line of head lamp

J.

Lowest cutoff line height

K.

Highest cutoff line height

L.

Distance of headlamp aiming screen from vehicle 7.62 m (25 ft)

M.

Maximum aim evaluation distance from vertical center on aiming screen 399 mm (3 deg. R)

N.

Minimum aim evaluation distance from vertical center on aiming screen 133 mm (1 deg. R)

V.

Vertical aiming evaluation line

J (Lowest cutoff line height)

7 mm (0.28 in)

0.05 deg. up

K (Highest cutoff line height)

7 mm (0.28 in)

0.05 deg. down
