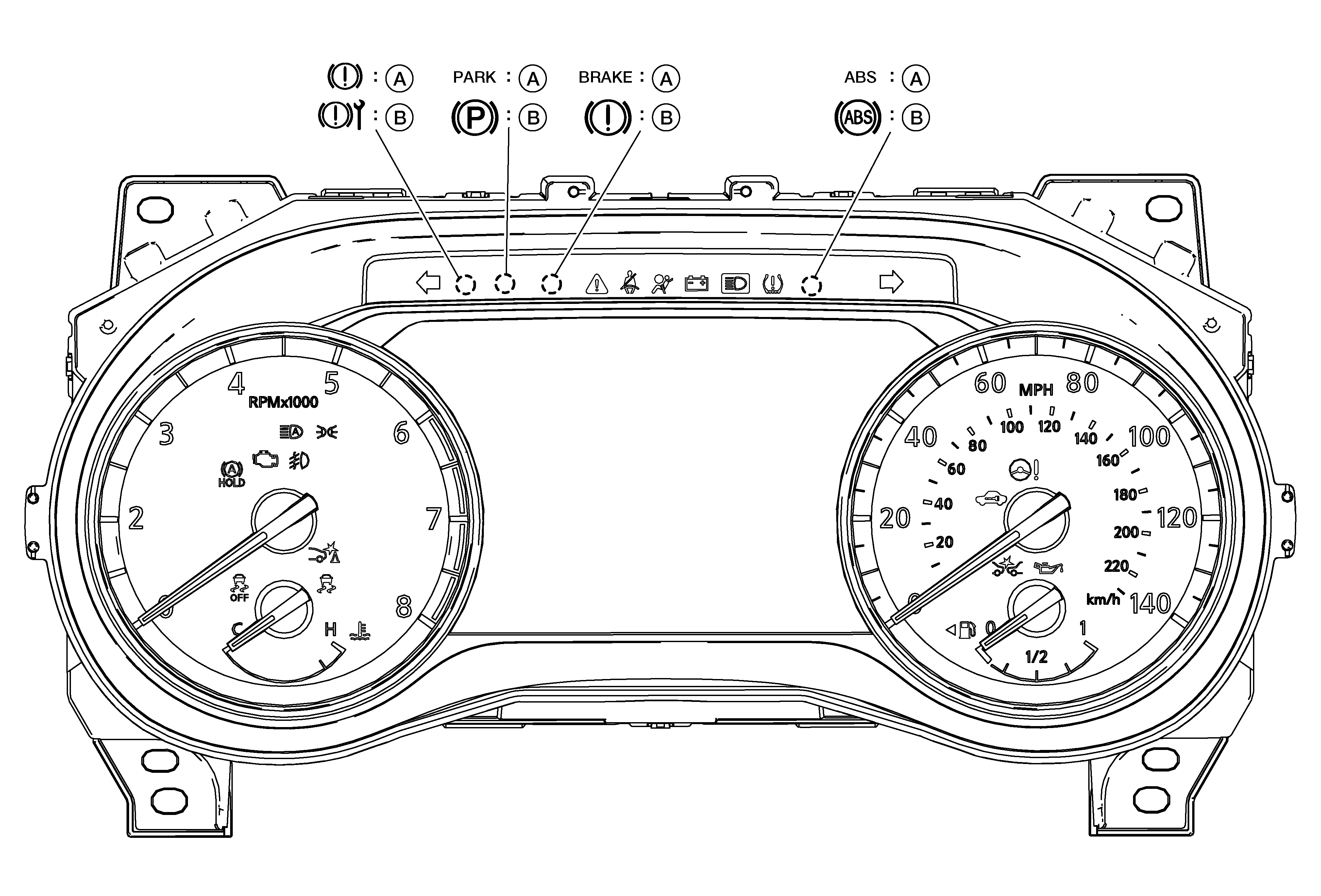

Arrangement Of Combination Meter

GNSALNIA0614Z-614Courtesy of NISSAN NORTH AMERICA, INC.

A.

USA

B.

Except USA
NOTE: The scale on a speedometer depends on vehicle specifications as shown below.
  • PR25DD engine models: 140 MPH (220 km/h)
  • KR20DDET engine models: 180 MPH (280 km/h)
