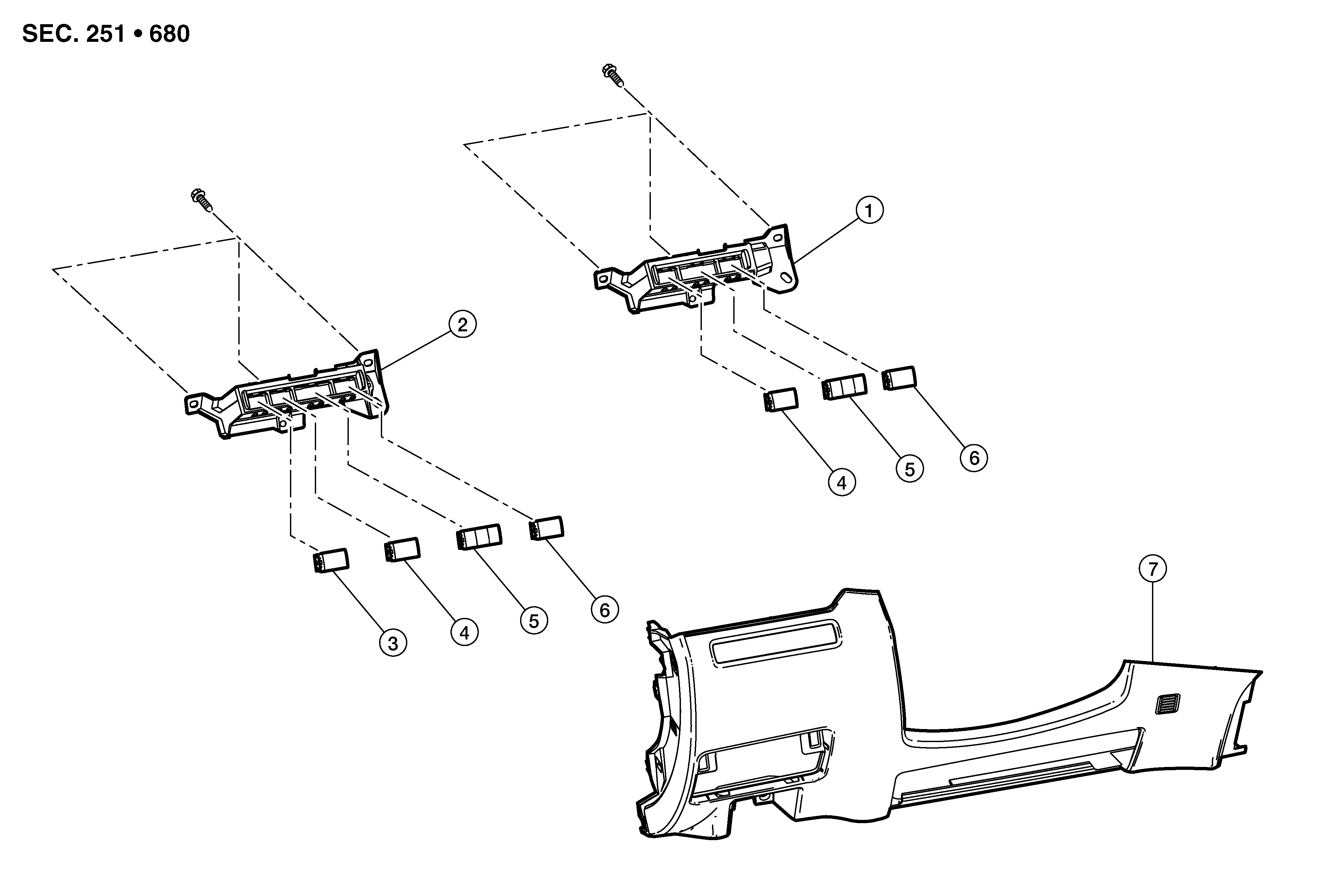

METER CONTROL SWITCH : Exploded View

GNSALKIA0567Z-567Courtesy of NISSAN NORTH AMERICA, INC.

1.

Switch carrier (without ProPILOT)

2.

Switch carrier (with ProPILOT)

3.

Steering assist switch

4.

Trunk lid opener switch

5.

Meter control switch

6.

Trip reset switch

7.

Instrument panel lower LH
