Component Inspection - FWD models

1. Remove the fuel level sensor unit and fuel pump (fuel level sensor). Refer to Removal and Installation .
2. Check the resistance between fuel level sensor unit and fuel pump (fuel level sensor) terminals.

   Courtesy of NISSAN NORTH AMERICA, INC.

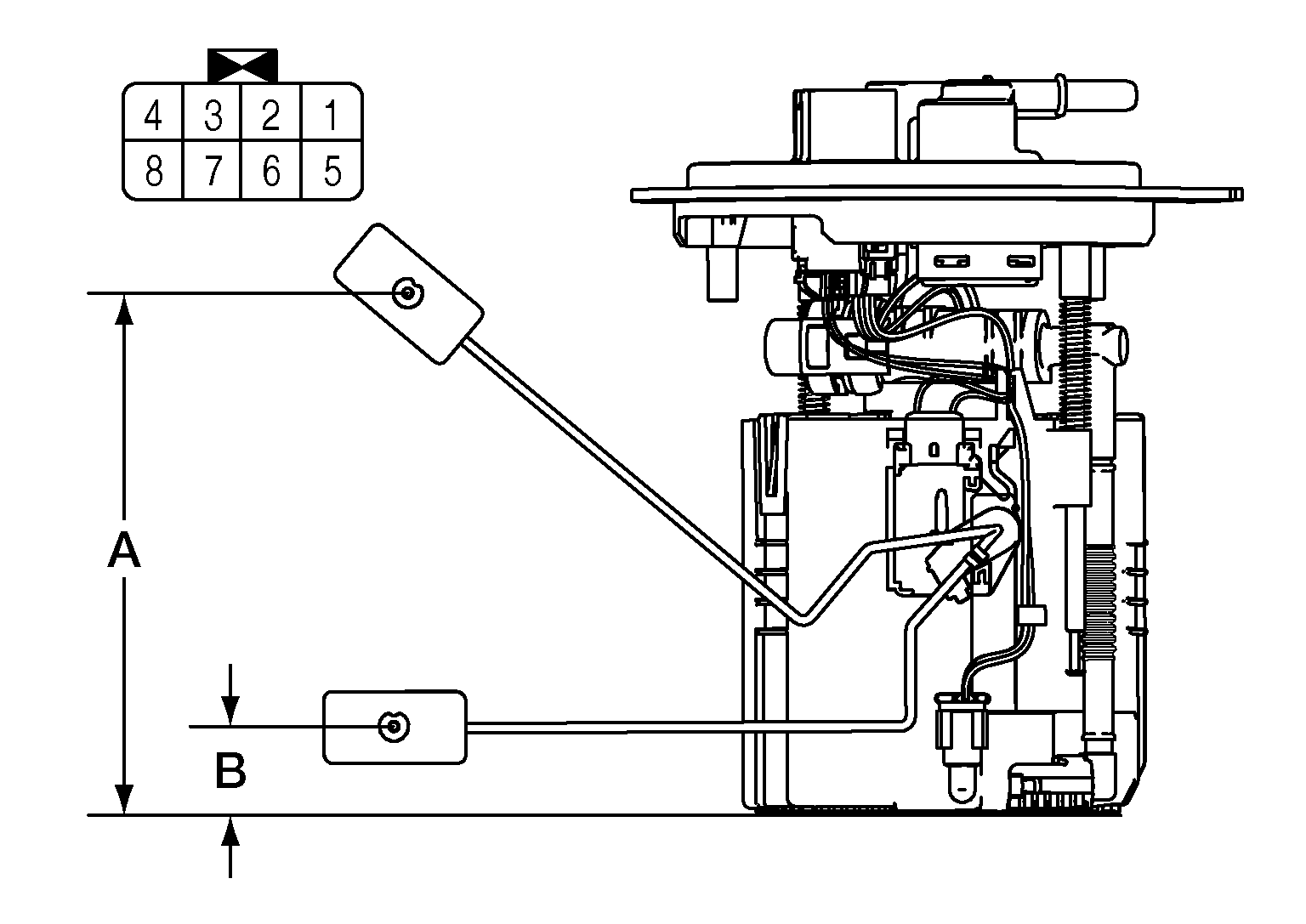

   Terminals		Condition	Resistance (Ohm) (Approx.)	Height [mm (in)]
   Fuel level sensor unit and fuel pump (fuel level sensor)
   2	3	Full * (A)	91	138.1 (5.44)
   		Empty * (B)	283.0	21.2 (0.83)

   *: When float rod is contact with stopper.

Is the inspection result normal?

YES

Inspection End.

NO

Replace fuel level sensor unit and fuel pump (fuel level sensor). Refer to Removal and Installation .
