Component Inspection - AWD models
- CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP (MAIN) (FUEL LEVEL SENSOR)
- Remove the fuel level sensor unit and fuel pump (main) (fuel level sensor). Refer to FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY : Removal & Installation .

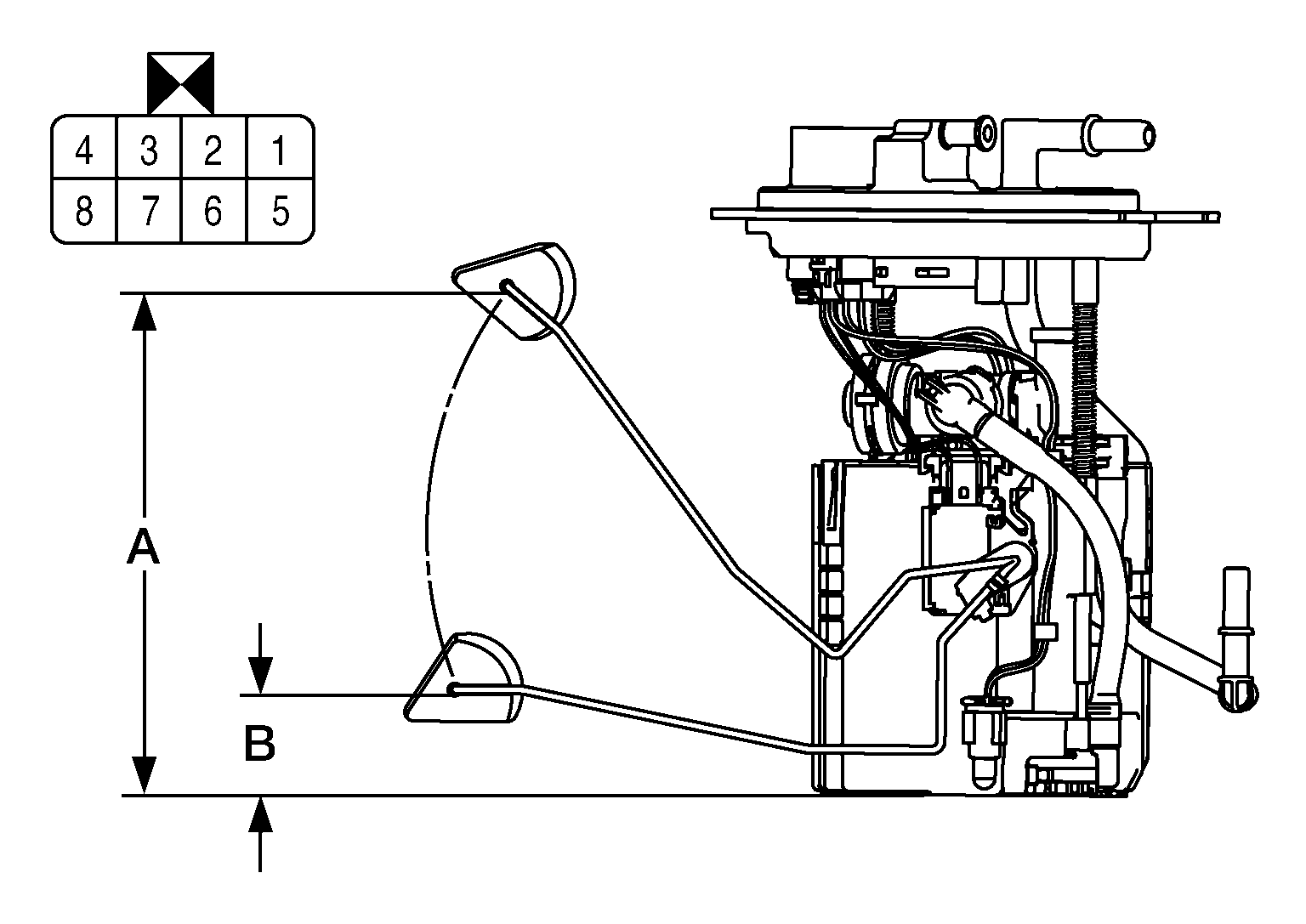

- Check the resistance between fuel level sensor unit and fuel pump (main) (fuel level sensor) terminals.
Fuel level sensor unit and fuel pump (main) (fuel level sensor)
Condition
Resistance (Ohm)
(Approx.)
Height [mm (in)]
Terminals
2
3
Full * (A)
40
161 (6.3)
Empty * (B)
137
29.6 (1.1)
*: When float rod is in contact with stopper.
Is the inspection result normal?
YES
GO TO 2.
NO
Replace fuel level sensor unit and fuel pump (main) (fuel level sensor). Refer to FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY : Removal & Installation .
- CHECK FUEL LEVEL SENSOR UNIT (SUB)
- Remove the fuel level sensor unit (sub). Refer to Removal and Installation .

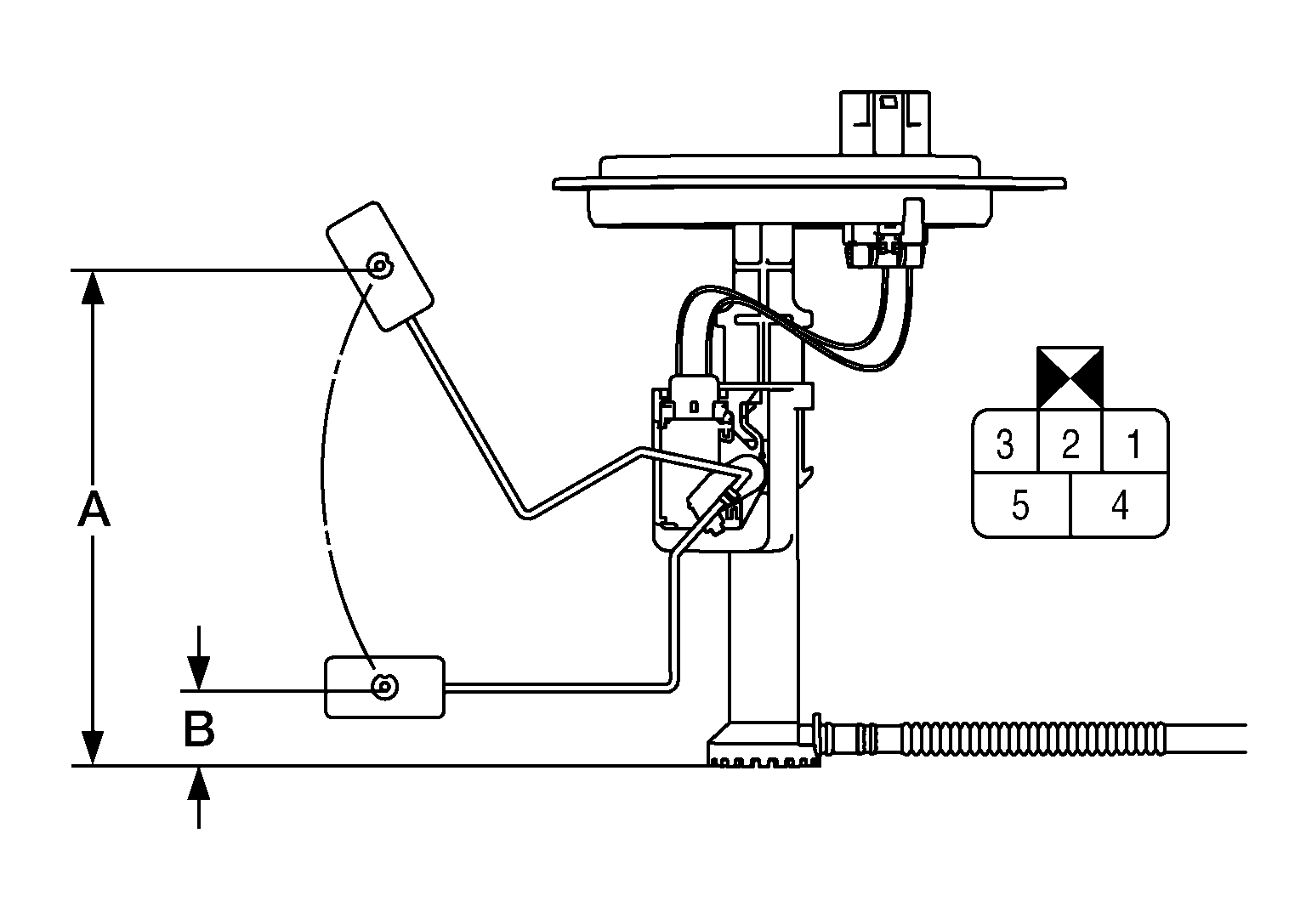

- Check the resistance between fuel level sensor unit (sub) terminals.
Fuel level sensor unit (sub)
Condition
Resistance (Ohm)
(Approx.)
Height [mm (in)]
Terminal
2
3
Full * (A)
51
158.7 (6.2)
Empty * (B)
146
23.3 (0.9)
*: When float rod is in contact with stopper.
Is the inspection result normal?
YES
Inspection End.
NO
Replace fuel level sensor unit (sub). Refer to Removal and Installation .
