INSTRUMENT PANEL PAD : Removal & Installation: Removal

  1. Remove instrument panel assembly. Refer to INSTRUMENT PANEL ASSEMBLY : Removal & Installation .

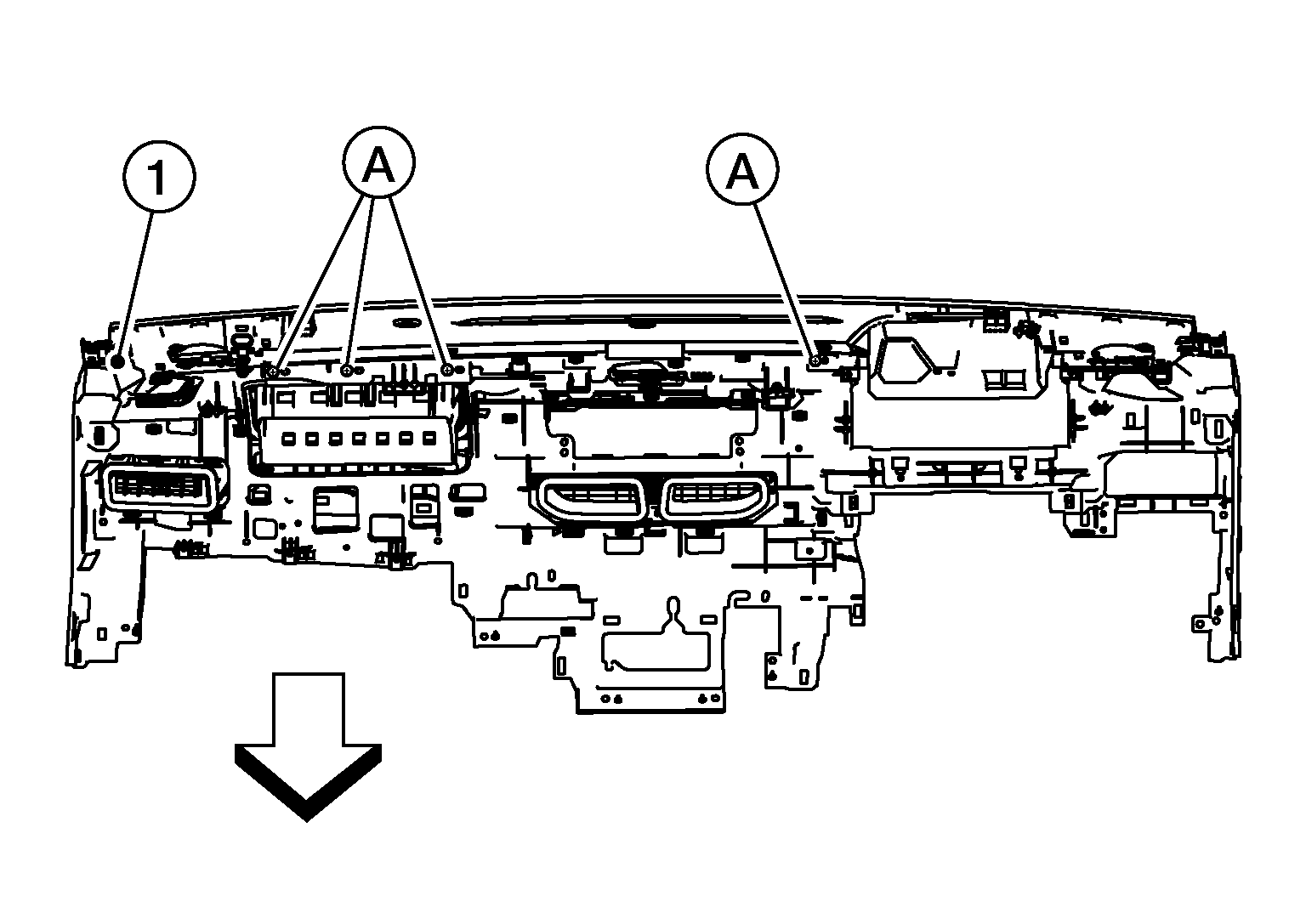

  2. Remove screws (A) from instrument panel assembly (1).
    GNSAWJIA0273Z-273Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

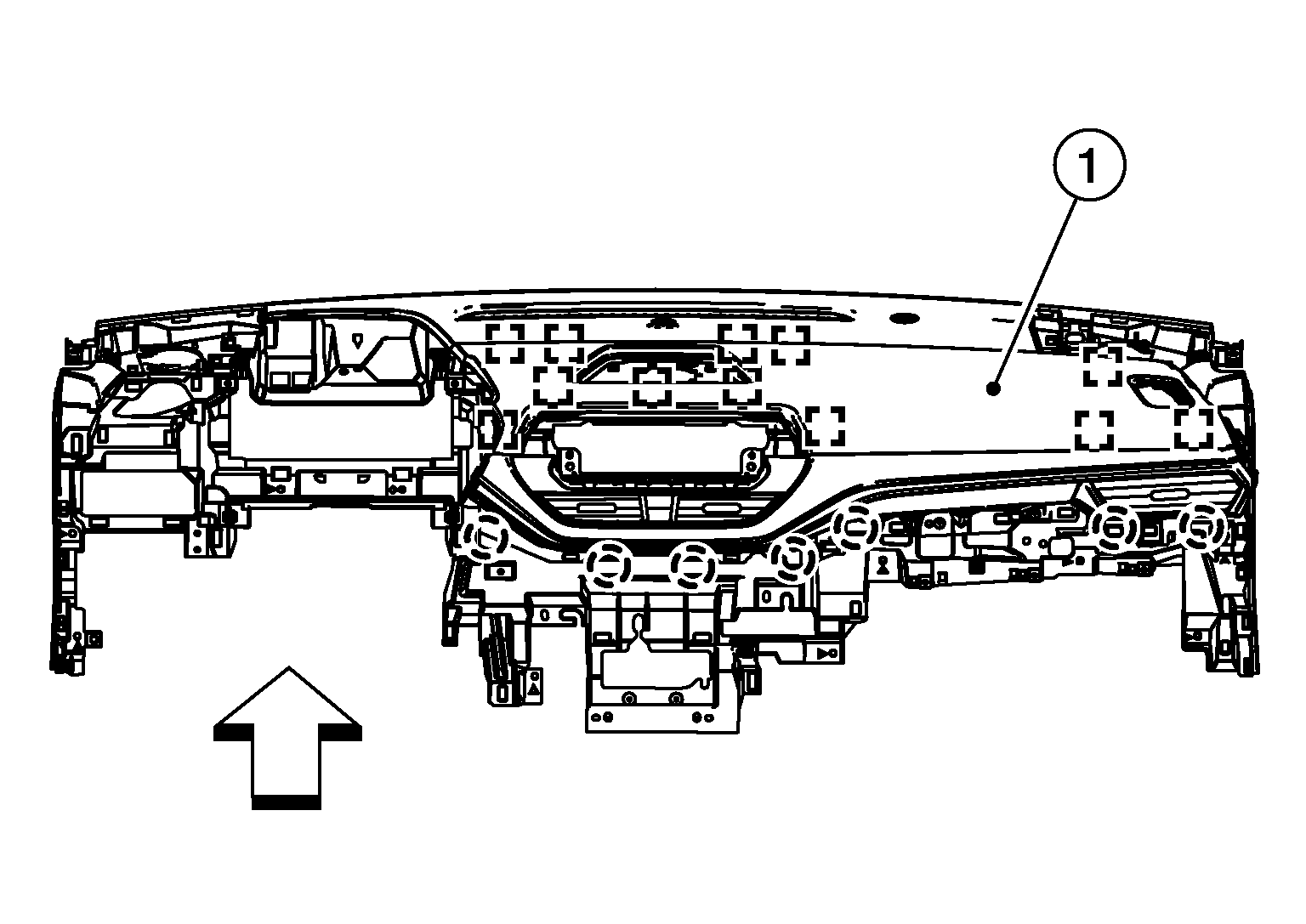

  3. Using a suitable tool, release clips and pawls and remove instrument panel pad (1).
    GNSAWJIA0274Z-274Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip

    SYMBOL

    : Pawl

    SYMBOL

    : Front
