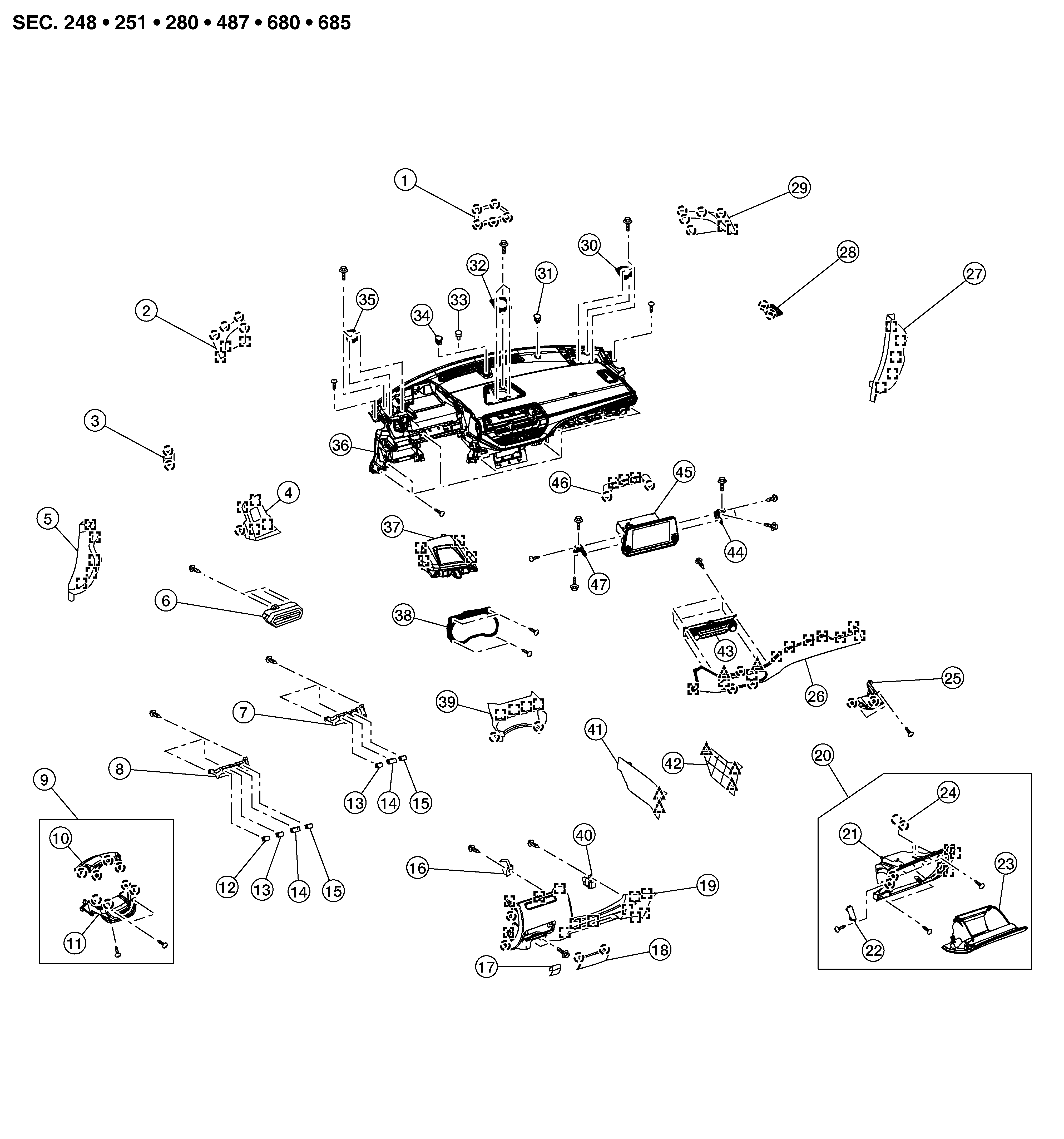

INSTRUMENT PANEL ASSEMBLY : Exploded View
|
1. |
Center speaker grille |
2. |
Front speaker grille (LH) |
3. |
Side defroster grille (LH) |
|
4. |
Instrument finisher A |
5. |
Instrument side finisher (LH) |
6. |
Side ventilator grille (LH) |
|
7. |
Switch carrier (without pro pilot) |
8. |
Switch carrier (with pro pilot) |
9. |
Steering column cover assembly |
|
10. |
Steering column cover (upper) |
11. |
Steering column cover (lower) |
12. |
Steering assist switch |
|
13. |
Trunk lid opener switch |
14. |
Meter control switch |
15. |
Trip reset switch |
|
16. |
Warning buzzer |
17. |
Fuel filler lid release handle |
18. |
Fuse box cover |
|
19. |
Instrument panel lower LH |
20. |
Glove box assembly |
21. |
Glove box housing |
|
22. |
Glove box damper |
23. |
Glove box lid |
24. |
Glove box lamp |
|
25. |
Cluster lid C lower |
26. |
Instrument finisher C |
27. |
Instrument side finisher (RH) |
|
28. |
Side defroster grille (RH) |
29. |
Front speaker grille (RH) |
30. |
Front speaker (RH) |
|
31. |
Optical sensor |
32. |
Center speaker |
33. |
Sunload sensor (with automatic air conditioning) |
|
34. |
Mask hole cover |
35. |
Front speaker (LH) |
36. |
Instrument panel |
|
37. |
Cluster lid D |
38. |
Combination meter |
39. |
Cluster lid A |
|
40. |
In-vehicle sensor |
41. |
Instrument lower cover (LH) |
42. |
Instrument lower cover (RH) |
|
43. |
Air conditioner control (with automatic), Air conditioner control (with manual) |
44. |
Audio unit bracket [RH (with display audio system)], AV control unit bracket [RH (with navigation system)] |
45. |
Audio unit (with display audio system), AV control unit (with navigation system) |
|
46. |
Cluster lid C |
47. |
Audio unit bracket [LH (with display audio system)], AV control unit bracket [LH (with navigation system)] |
|
: Metal clip |
|
|
: Pawl |
