INSTRUMENT LOWER PANEL LH : Removal & Installation: Removal

  1. Using a suitable tool, release metal clips and remove instrument side finisher (1).
    GNSALJIA0286Z-286Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clips

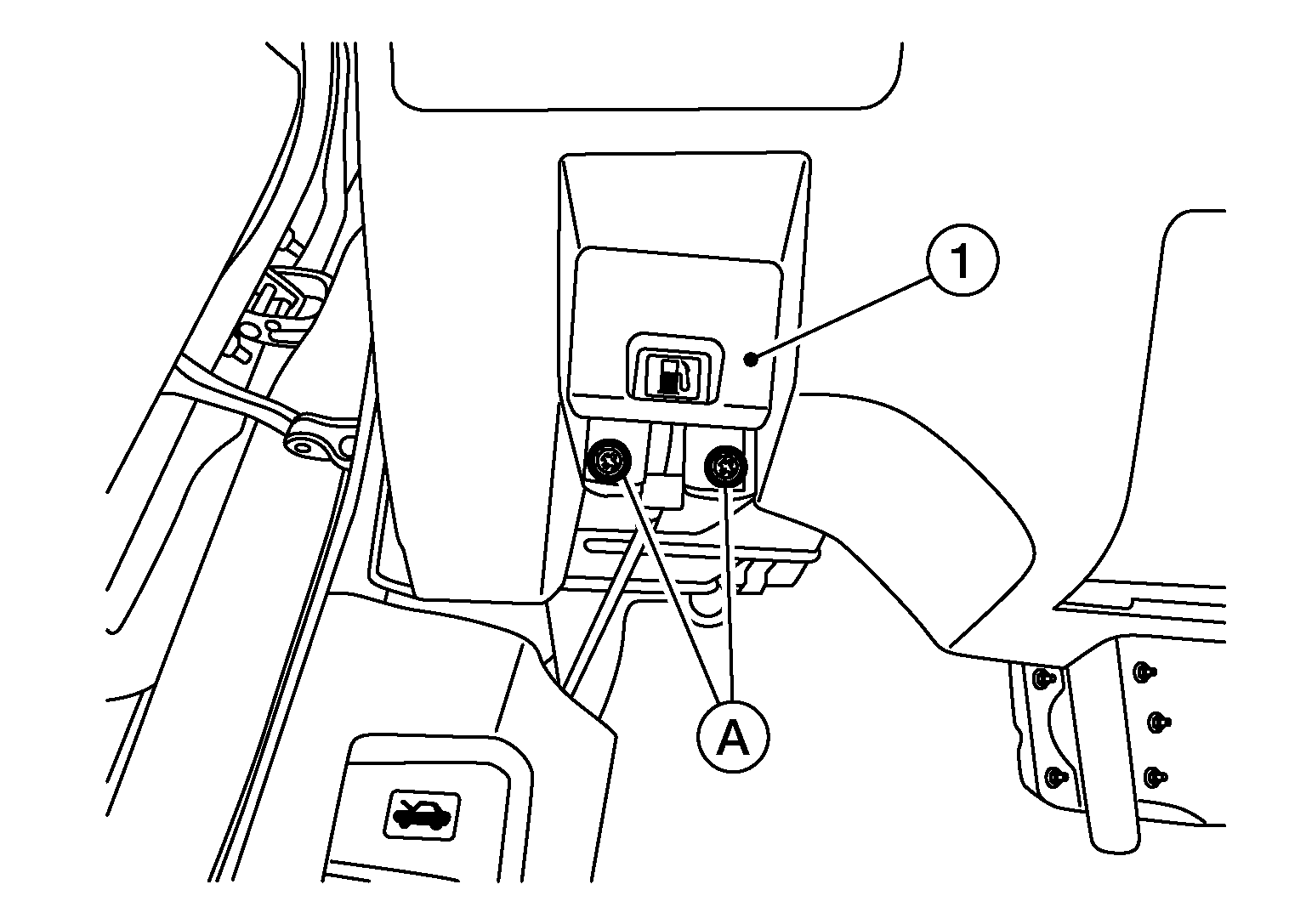

  2. Disconnect fuel filler release cable from fuel filler release handle (1) and remove screws (A).
    GNSALJIA0288Z-288Courtesy of NISSAN NORTH AMERICA, INC.

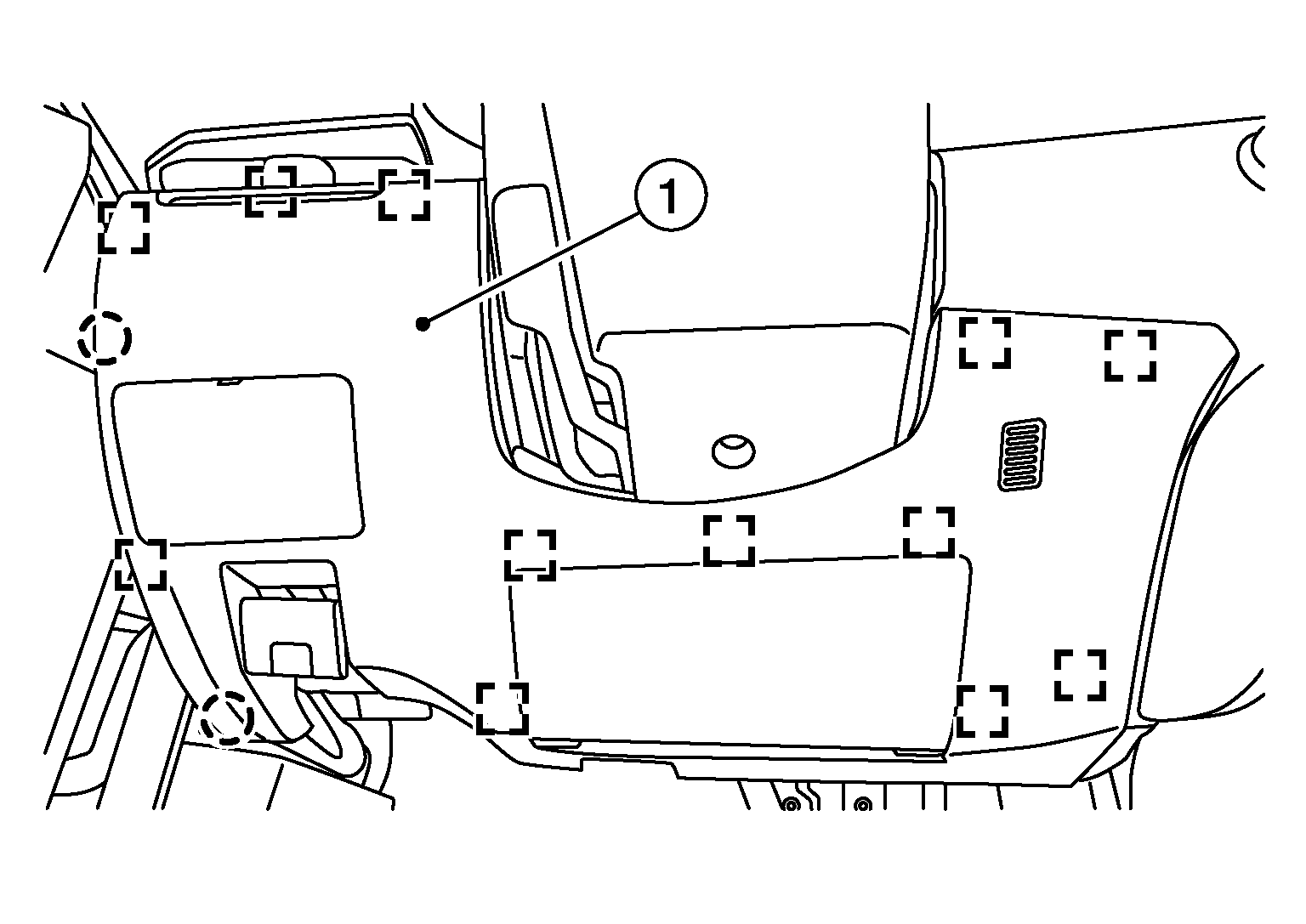

  3. Using a suitable tool, release instrument lower panel LH clips and pawls.
    GNSALJIA0287Z-287Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip

    SYMBOL

    : Pawl
  4. Disconnect aspirator hose from in car sensor.
  5. Disconnect harness connectors and remove instrument lower panel LH.
