INSTRUMENT FINISHER C : Removal & Installation: Removal

  1. Remove center console assembly. Refer to Removal and Installation  (With electric parking brake) or Removal and Installation  (Without electric parking brake).
  2. Remove instrument lower panel LH. Refer to Removal and Installation .
  3. Remove glove box assembly. Refer to Removal and Installation .
  4. Remove cluster lid C lower.

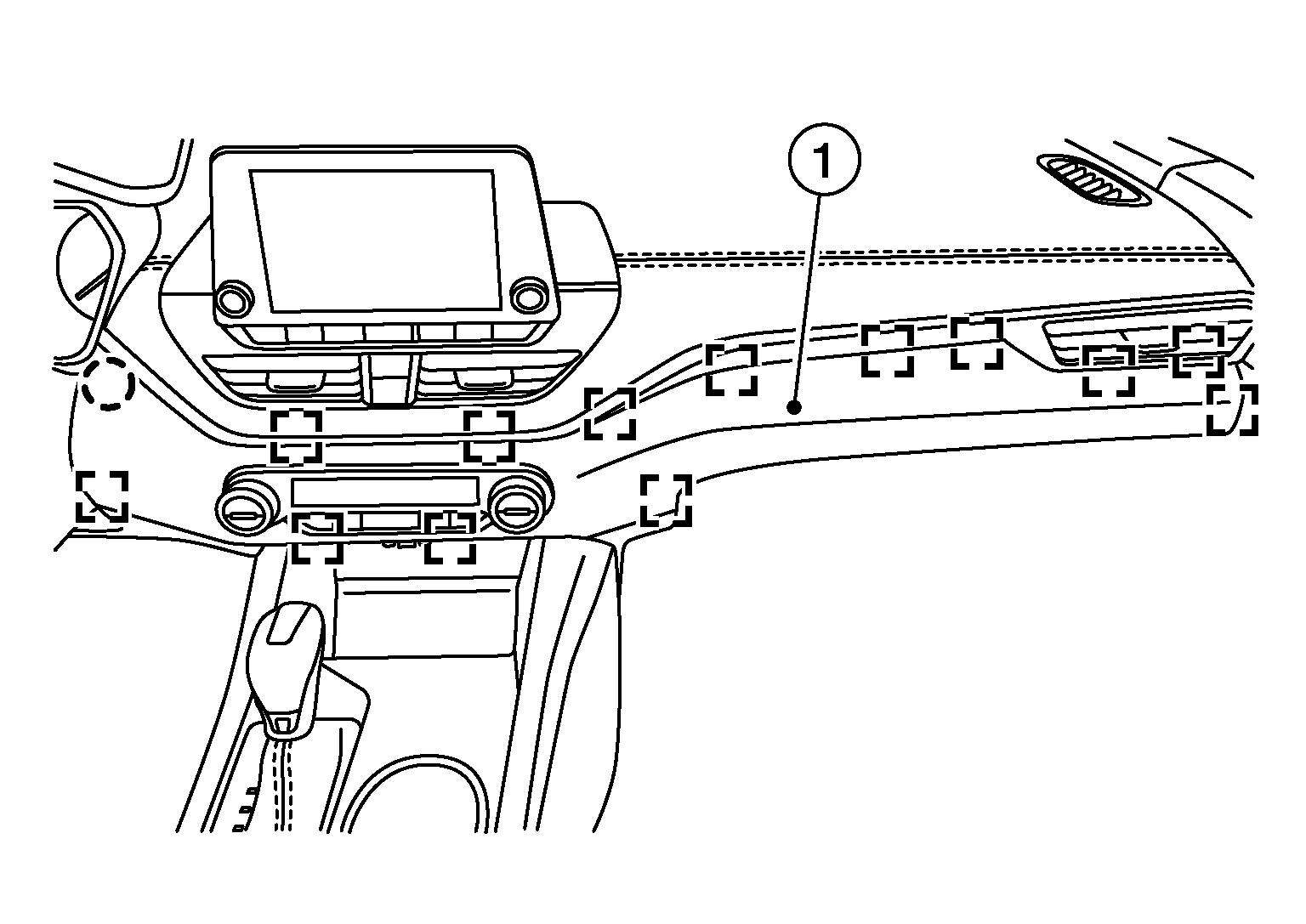

  5. Using suitable tool, release clips and remove instrument finisher C (1).
    GNSAWJIA0289Z-289Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip

    SYMBOL

    : Pawl
