INSTRUMENT FINISHER A : Removal & Installation: Removal

  1. Remove instrument finisher C. Refer to INSTRUMENT FINISHER A : Removal & Installation .

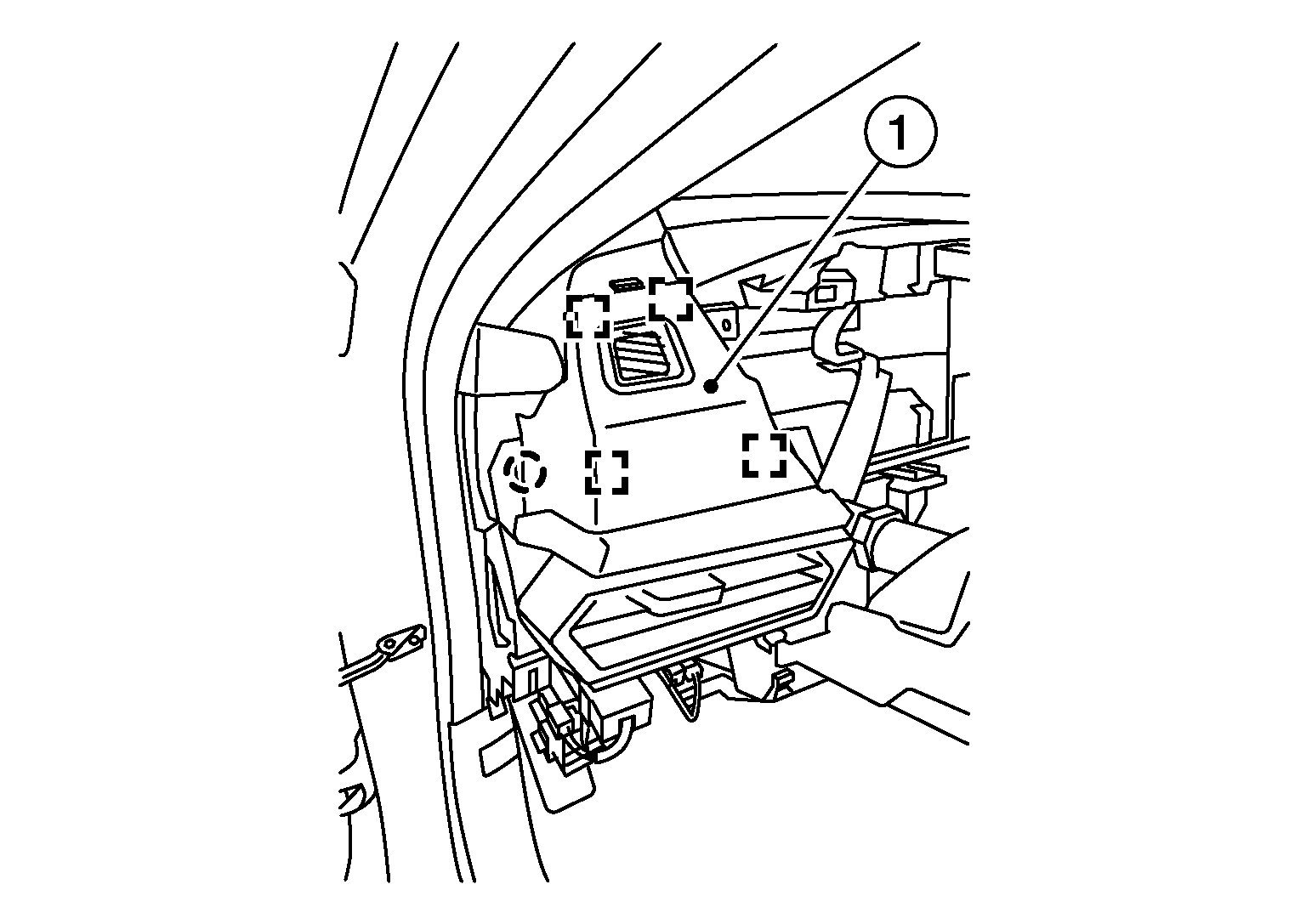

  2. Using a suitable tool release clips and remove instrument finisher A (1).
    GNSALJIA0302Z-302Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip
  3. Disconnect harness connector from instrument panel mood lamp [LH (with ambient lighting)].
