GLOVE BOX ASSEMBLY AND HOUSING : Removal & Installation: Removal

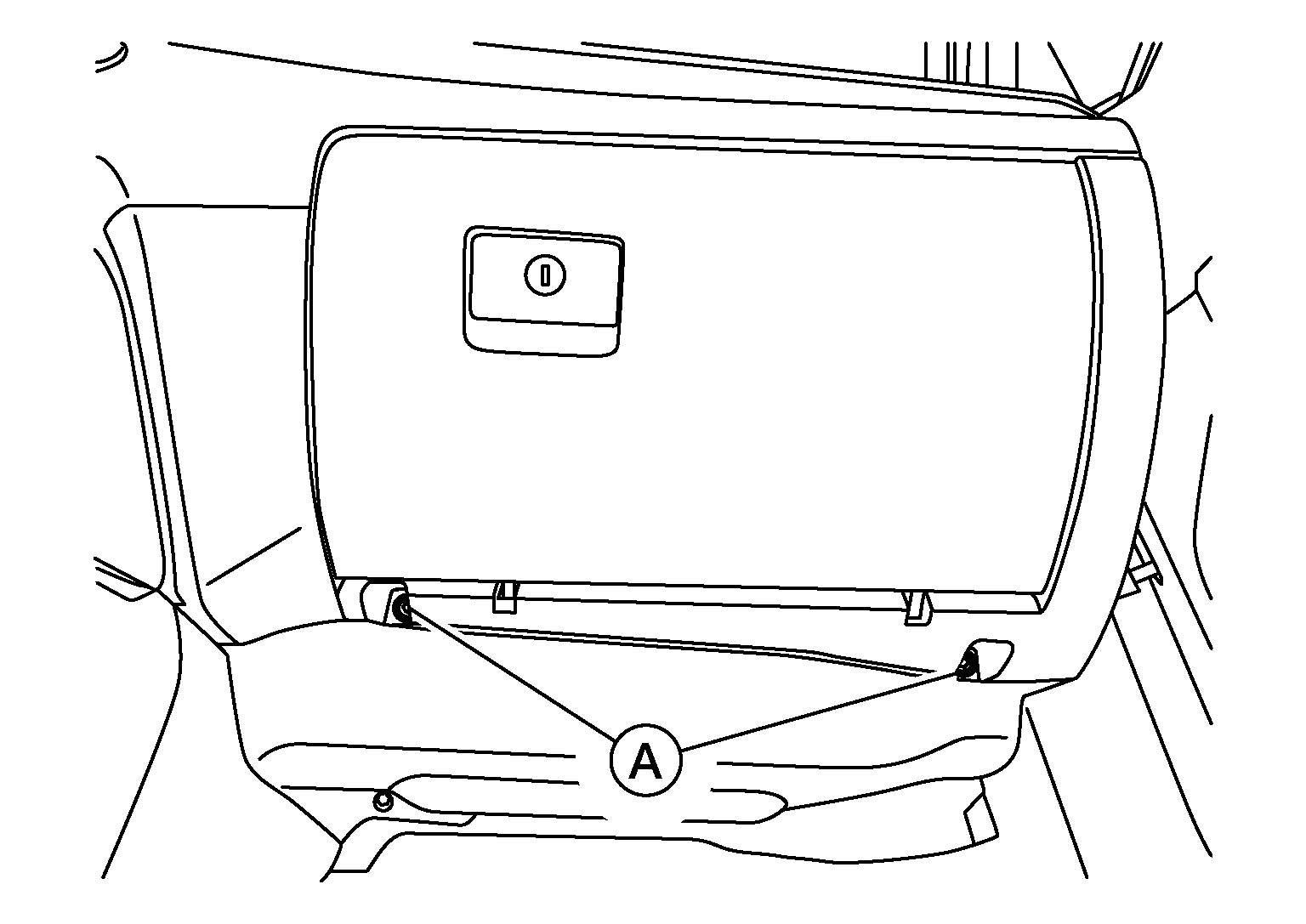

  1. Remove the glove box lower screws (A).
    GNSALJIA0289Z-289Courtesy of NISSAN NORTH AMERICA, INC.

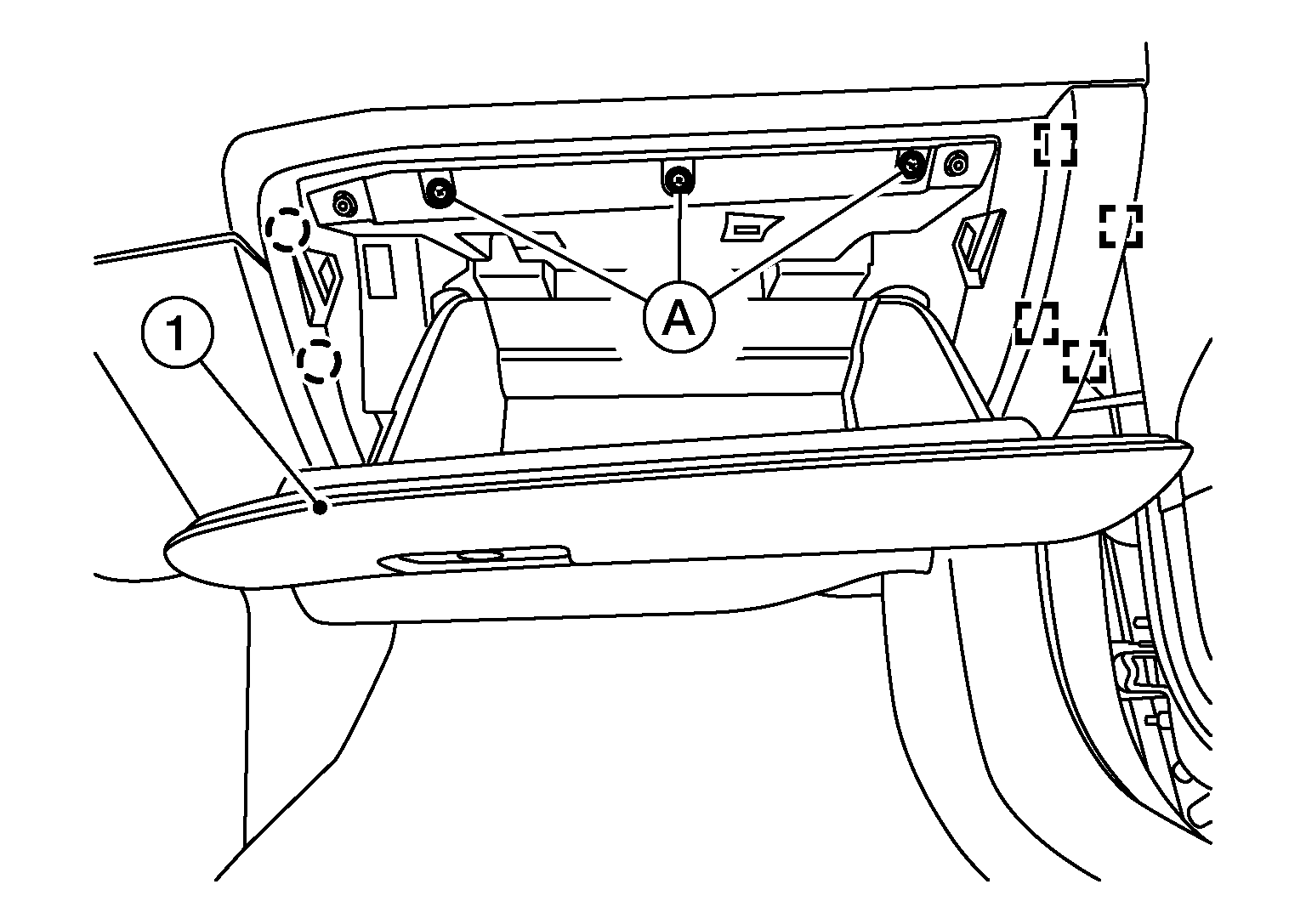

  2. Open glove box lid and remove the glove box upper screws (A).
    GNSALJIA0290Z-290Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip

    SYMBOL

    : Pawl
  3. Using a suitable tool, release pawls and metal clips.
  4. Disconnect the harness connector and remove glove box assembly.
