Home >> Nissan-Datsun >> 2019 >> Altima Edition ONE >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel >> Removal And Installation >> Cluster Lid D >> CLUSTER LID D : Removal & Installation >> Removal

CLUSTER LID D : Removal & Installation: Removal

  1. Remove cluster lid A. Refer to CLUSTER LID D : Removal & Installation .

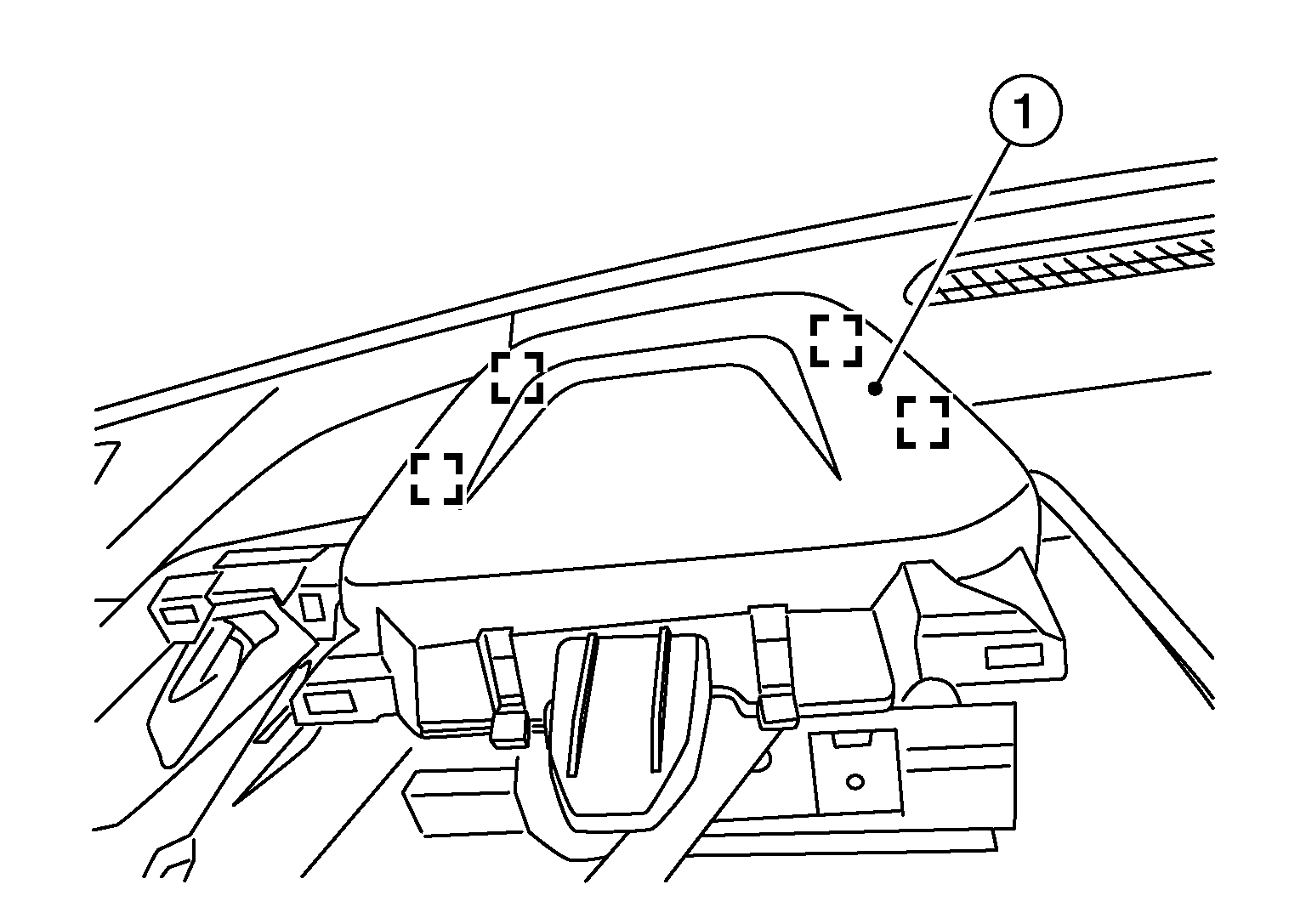

  2. Using a suitable tool, release clips and remove cluster lid D (1).
    GNSALJIA0301Z-301Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip
