CLUSTER LID C : Removal & Installation: Removal

  1. Using a suitable tool, release clips and pawls.
  2. Remove cluster lid C (1).

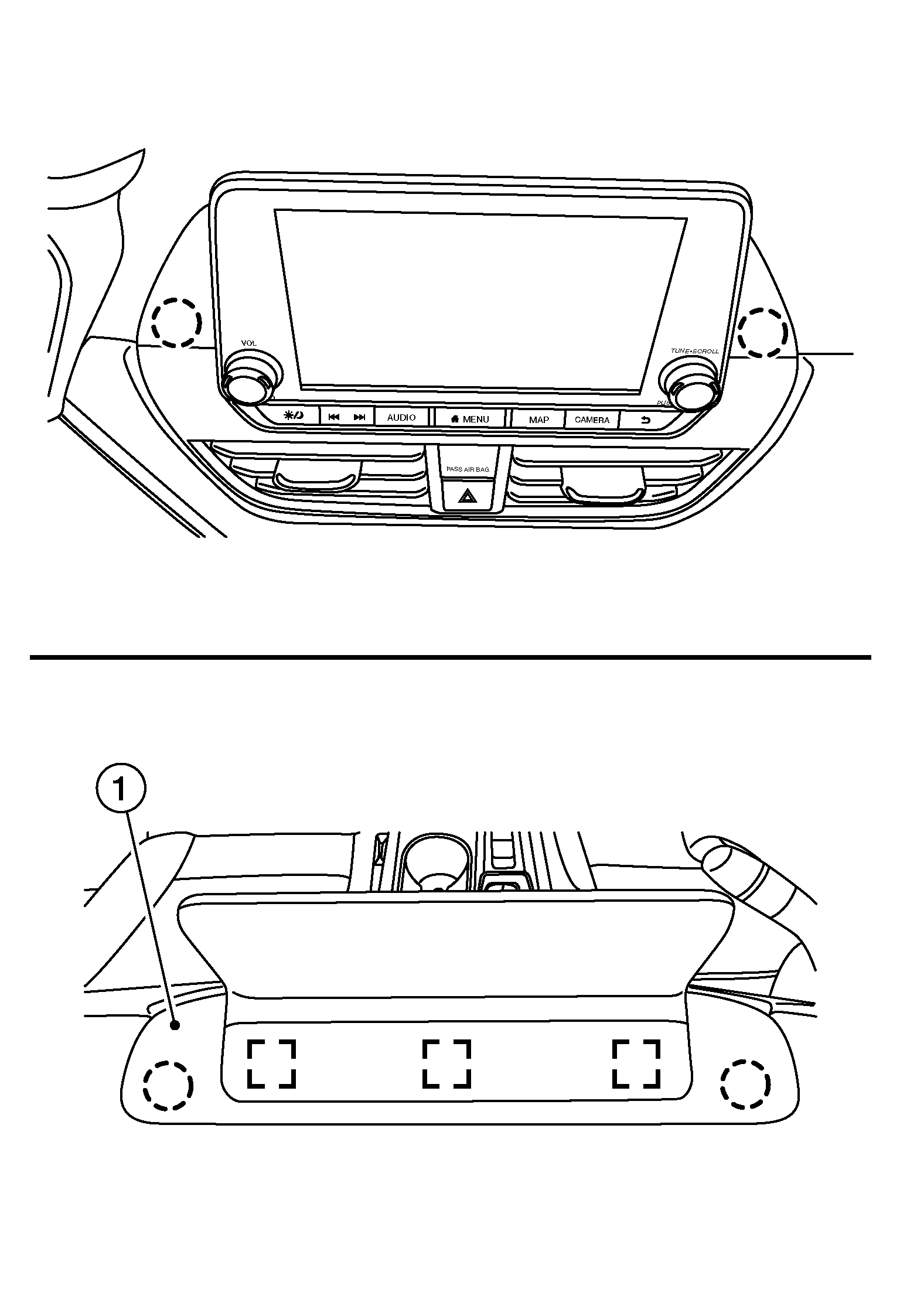

    GNSAWJIA0290Z-290Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip

    SYMBOL

    : Pawl
