CLUSTER LID C LOWER : Removal & Installation: Removal
- Remove center console assembly. Refer to Removal and Installation (With electric parking brake) or Removal and Installation (Without electric parking brake).
- Remove glove box assembly and housing. Refer to Removal and Installation .

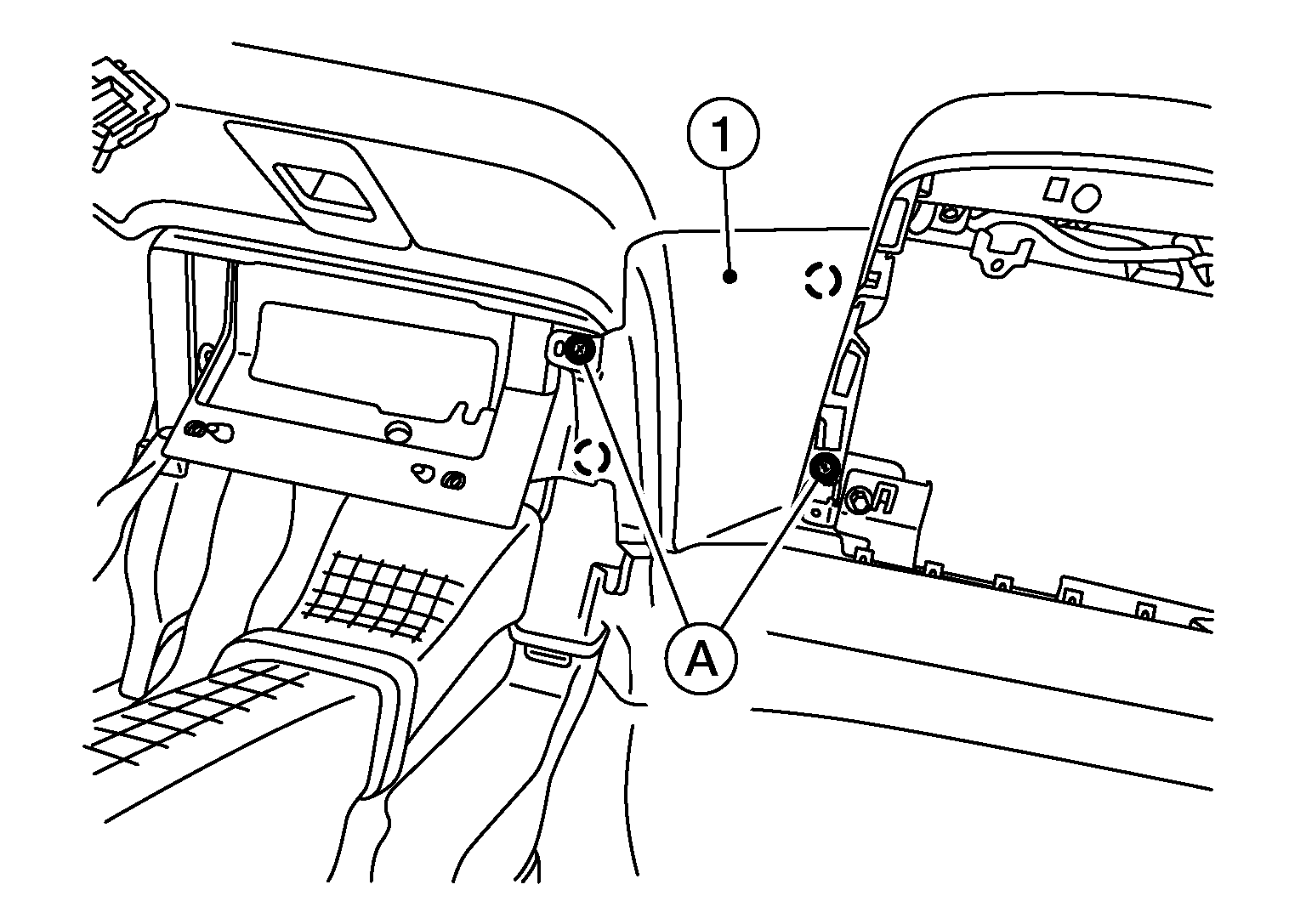

- Remove screws (A) from cluster lid C lower (1).
: Pawl
- Using a suitable tool, release pawls and remove cluster lid C.
