CLUSTER LID A : Removal & Installation: Removal

  1. Remove center console assembly. Refer to Removal and Installation  (With electric parking brake) or Removal and Installation  (Without electric parking brake).
  2. Remove instrument lower panel LH. Refer to Removal and Installation .
  3. Remove instrument finisher A. Refer to Removal and Installation .

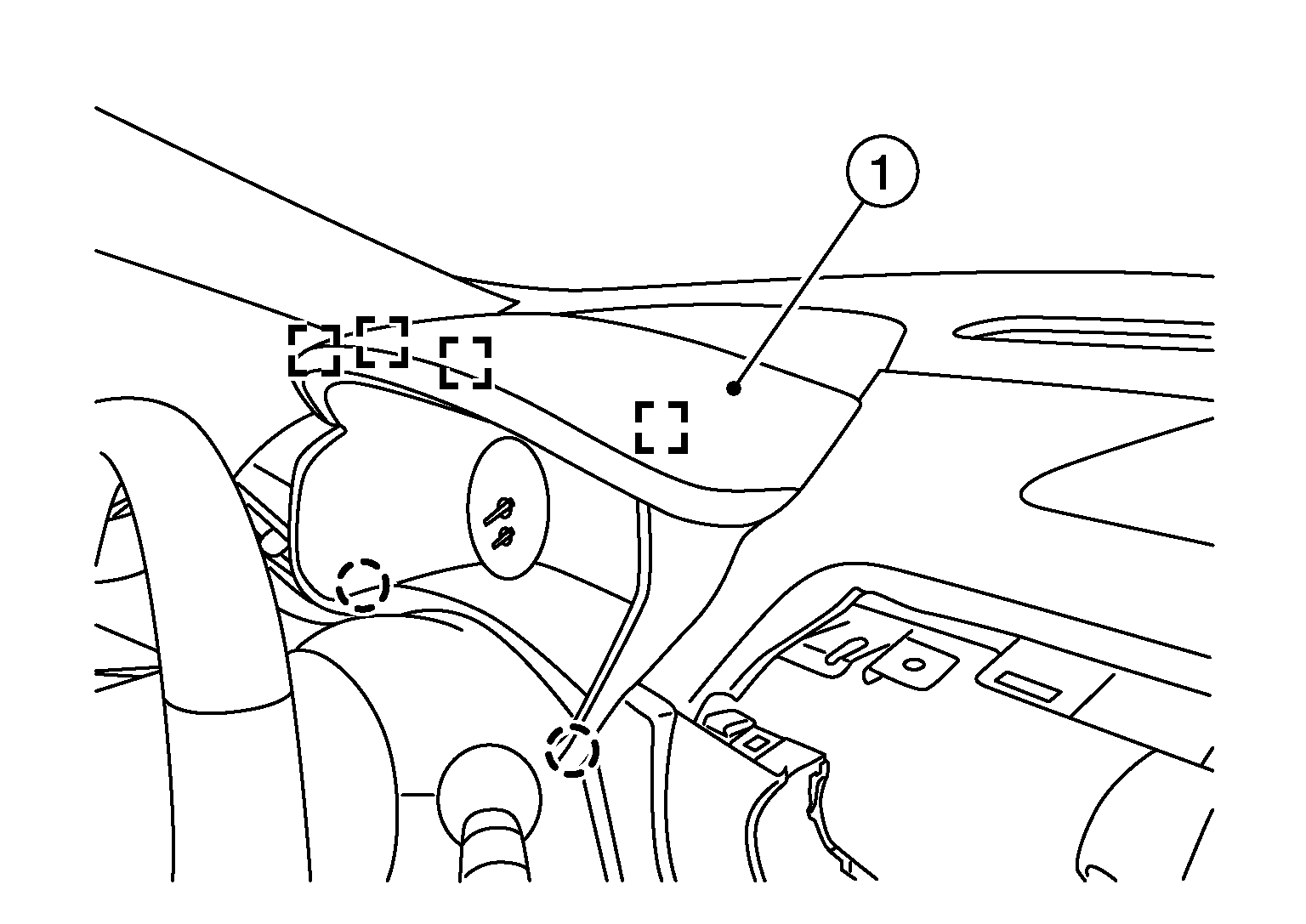

  4. Using a suitable tool, release clips and pawls and remove cluster lid A.
    GNSALJIA0300Z-300Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip

    SYMBOL

    : Pawl
