CENTER CONSOLE REAR FINISHER : Removal & Installation: Removal

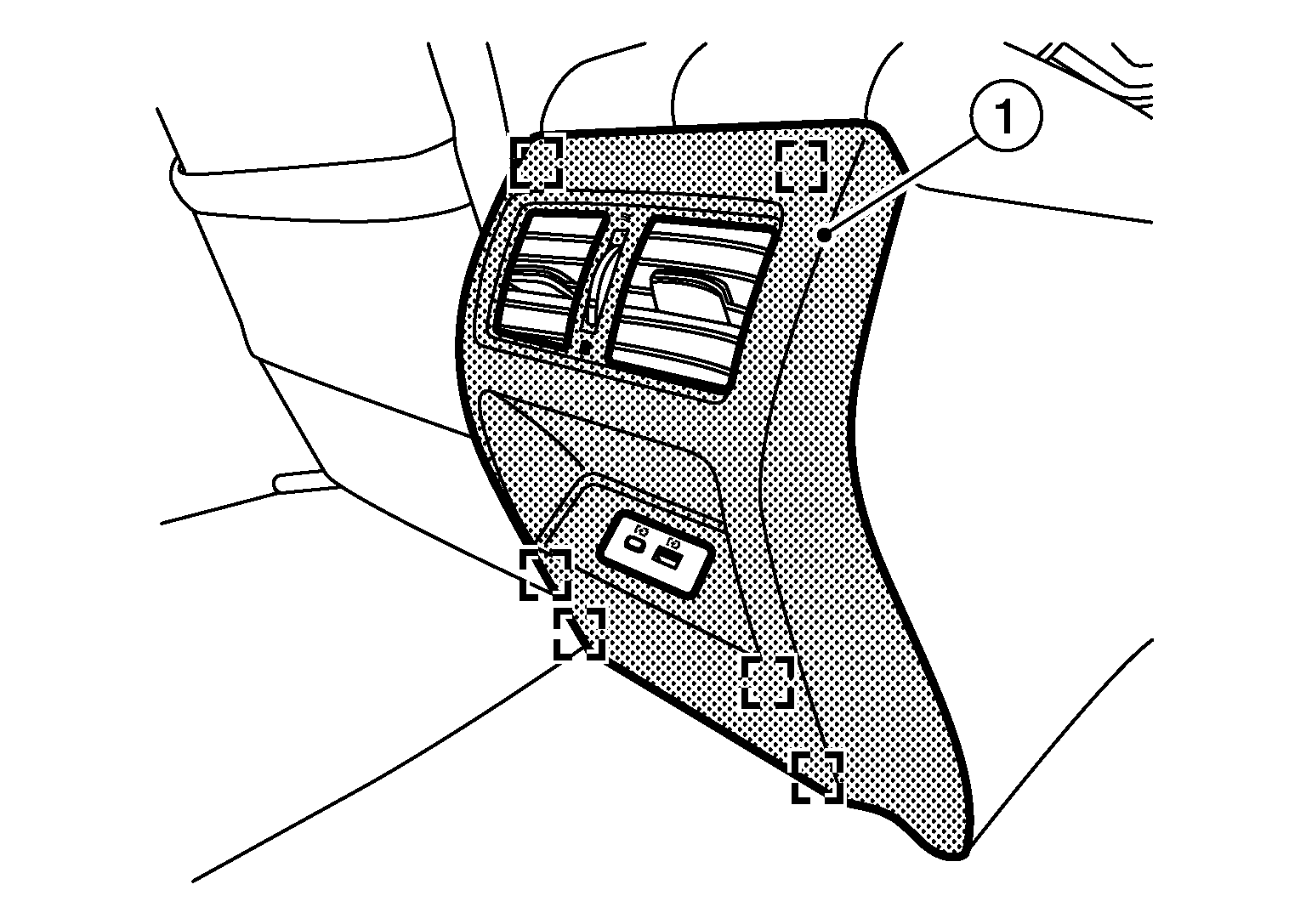

  1. Using a suitable tool, release clips from center console rear finisher (1).
    GNSALJIA0296Z-296Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip
  2. Disconnect harness connector from rear USB charge port and remove center console rear finisher.
