CENTER CONSOLE REAR FINISHER : Disassembly & Assembly: Removal

  1. Remove center console rear finisher. Refer to Removal and Installation .

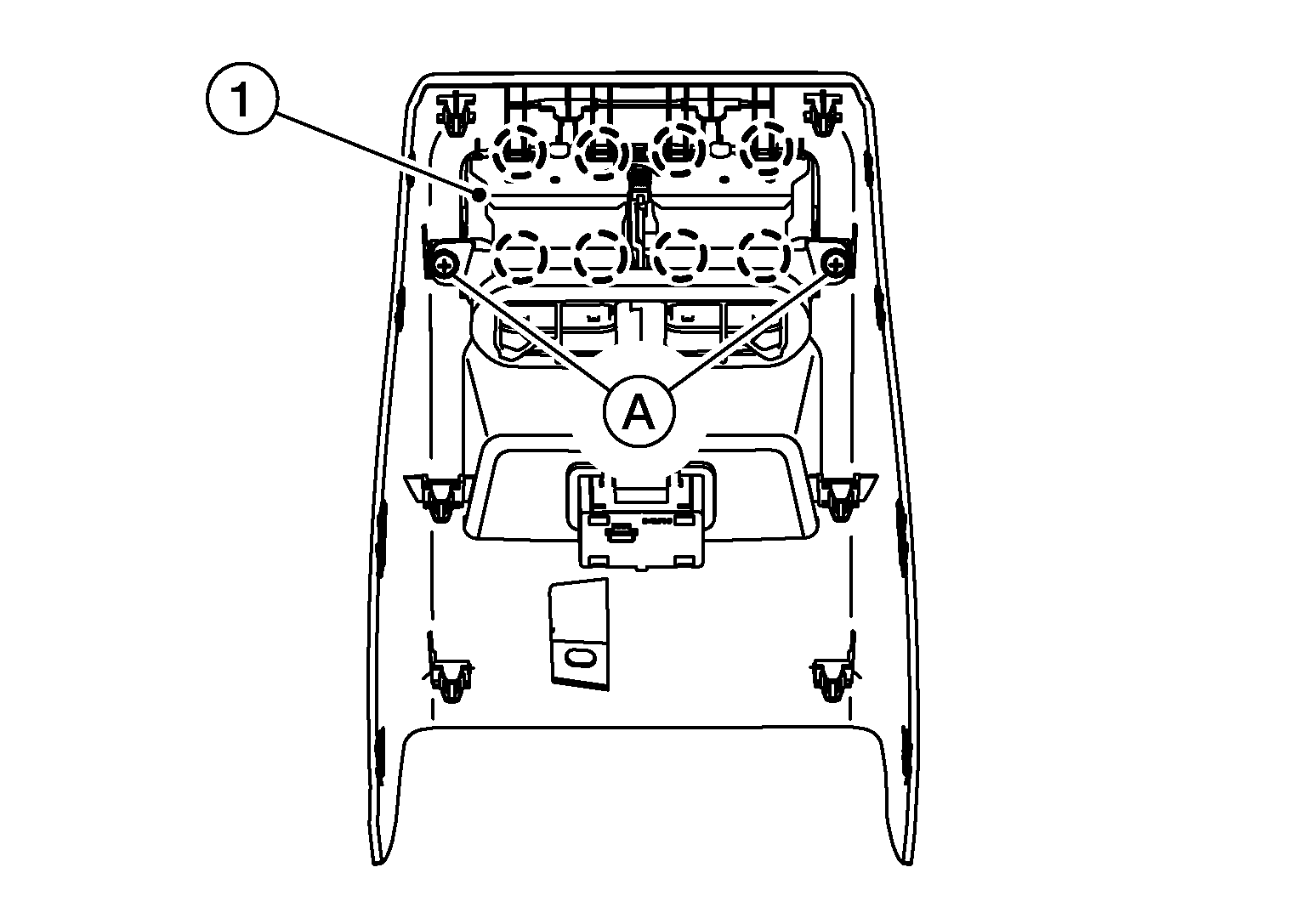

  2. Remove screws (A) from rear vent grille (1).
    GNSALJIA0306Z-306Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
  3. Using a suitable tool, release pawls and remove rear vent grille from rear vent grille.

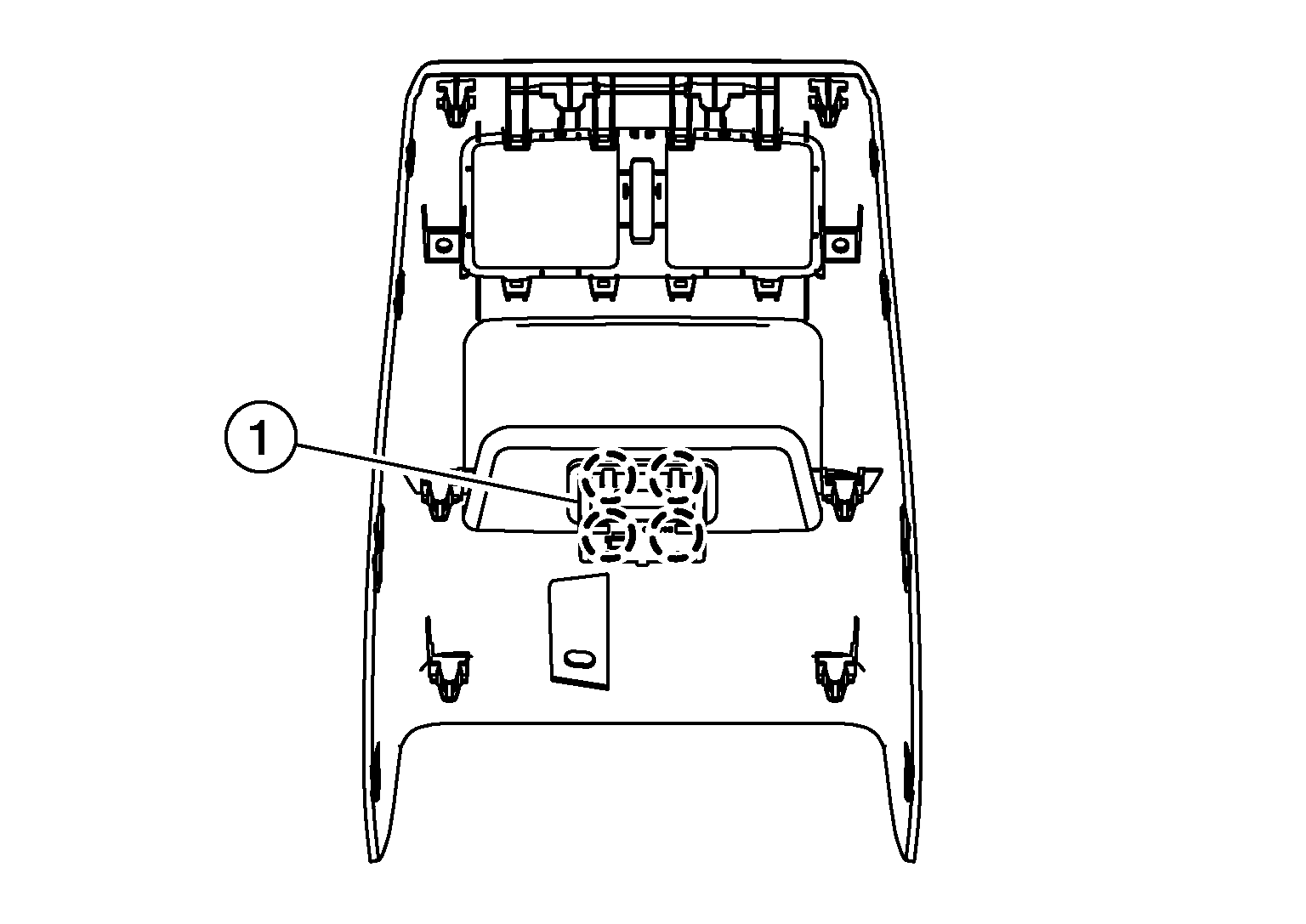

  4. Using a suitable tool, release pawls and remove rear USB charge port (1) from rear vent grille.
    GNSALJIA0307Z-307Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
