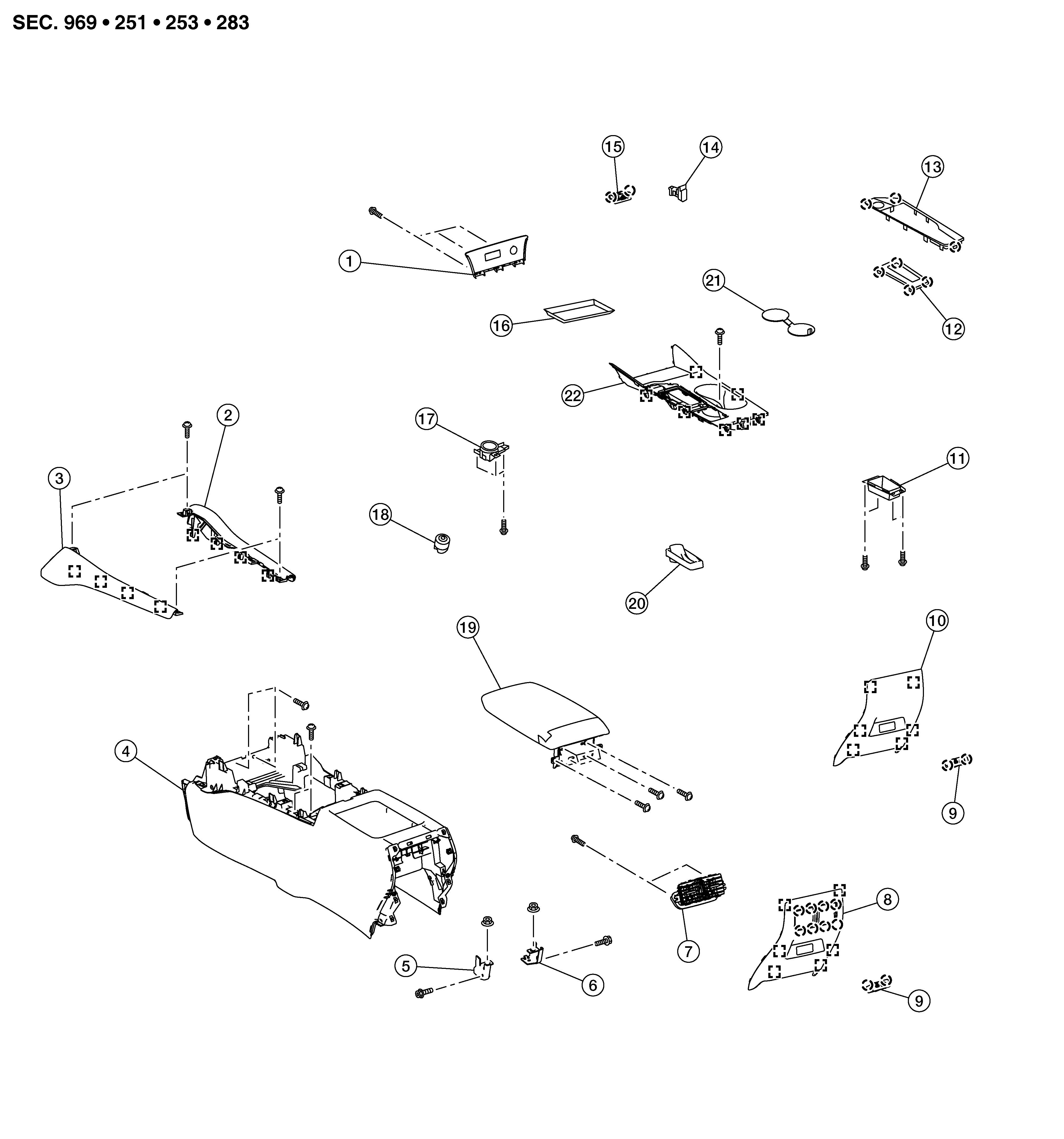

CENTER CONSOLE ASSEMBLY : Exploded View
|
1. |
Console switch finisher |
2. |
Center console finisher (RH) |
3. |
Center console finisher (LH) |
|
4. |
Center console |
5. |
Center console bracket (LH) |
6. |
Center console bracket (RH) |
|
7. |
Rear vent grille |
8. |
Center console rear finisher (with rear air) |
9. |
Rear USB charge port |
|
10. |
Center console rear finisher (without rear air) |
11. |
Rear console pocket |
12. |
Shift selector indicator finisher |
|
13. |
Shift selector finisher cover |
14. |
Front power socket |
15. |
USB interface |
|
16. |
Front console pocket |
17. |
Push button ignition switch bracket |
18. |
Push button ignition switch |
|
19. |
Center console lid |
20. |
Shift selector finisher boot |
21. |
Cup holder mat |
|
22. |
Shift selector finisher |
|
Metal clip |
|
Pawl |
