CENTER CONSOLE ASSEMBLY : Disassembly & Assembly: Disassembly

  1. Remove center console assembly. Refer to Removal and Installation .

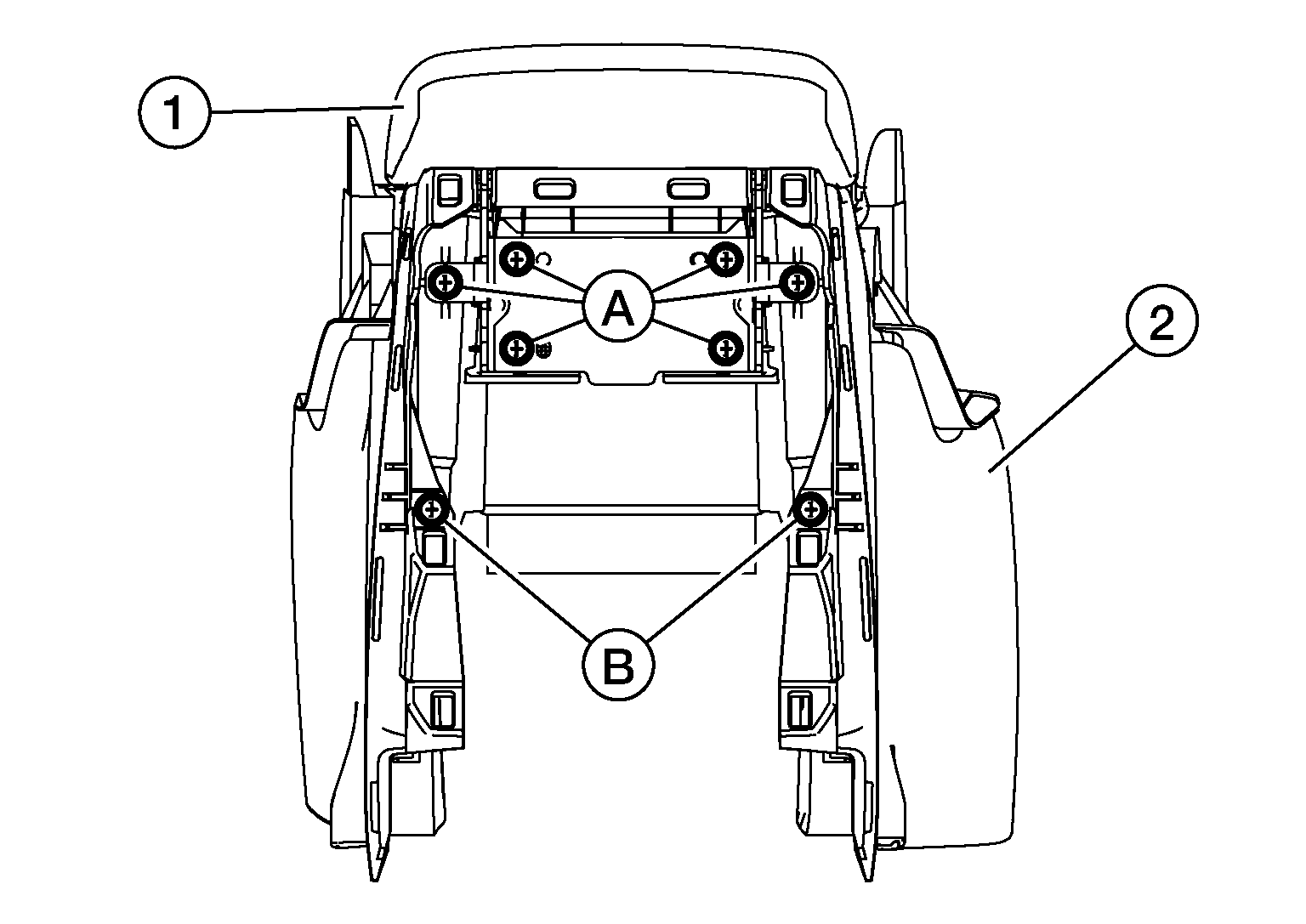

  2. Open center console lid (1), remove screws (A) from center console assembly (2) and remove center console lid.
    GNSALJIA0329Z-329Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove screws (B) from center console assembly.

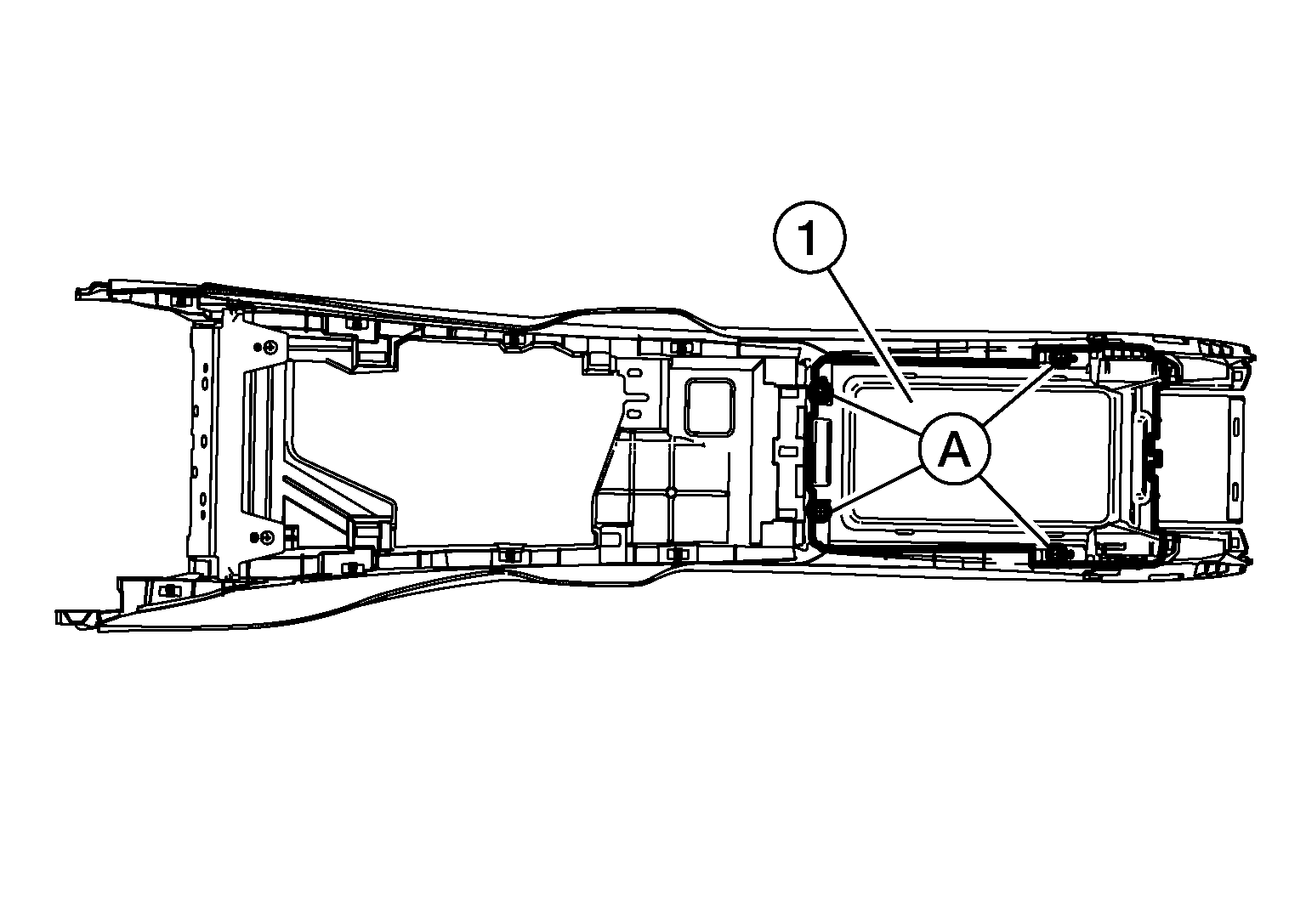

  4. Remove screws (A) and remove center console bin (1).
    GNSALJIA0330Z-330Courtesy of NISSAN NORTH AMERICA, INC.
