Home >> Nissan-Datsun >> 2019 >> Altima Edition ONE >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Exterior Lighting System - Led Headlamp >> Wiring Diagram >> Turn Signal And Hazard Warning Lamps >> Wiring Diagram

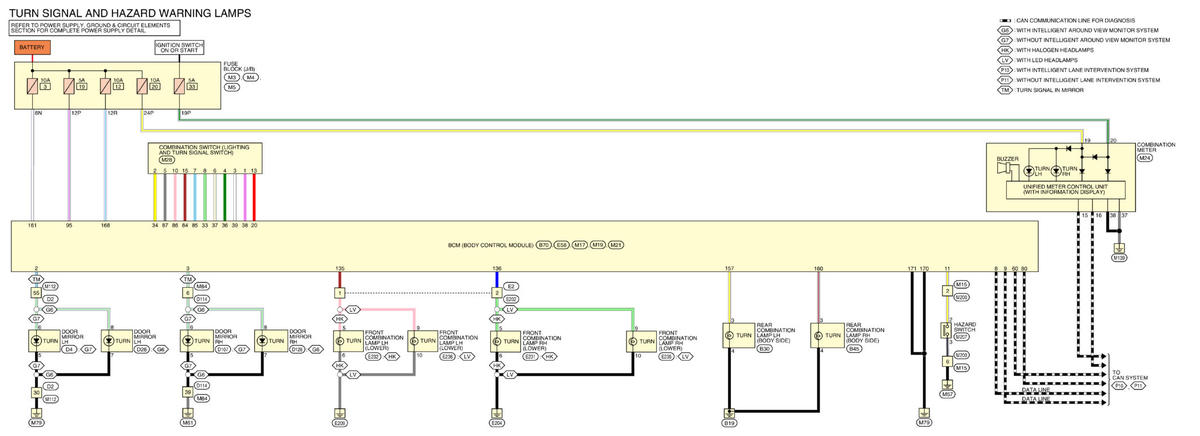

Turn Signal And Hazard Warning Lamps: Wiring Diagram

GNSW9380

Courtesy of EWD
