Removal And Installation: Removal

  1. Remove The Steering Column Cover Screws (A)
  2. Remove The Steering Column Upper (1) And Lower (2) Covers

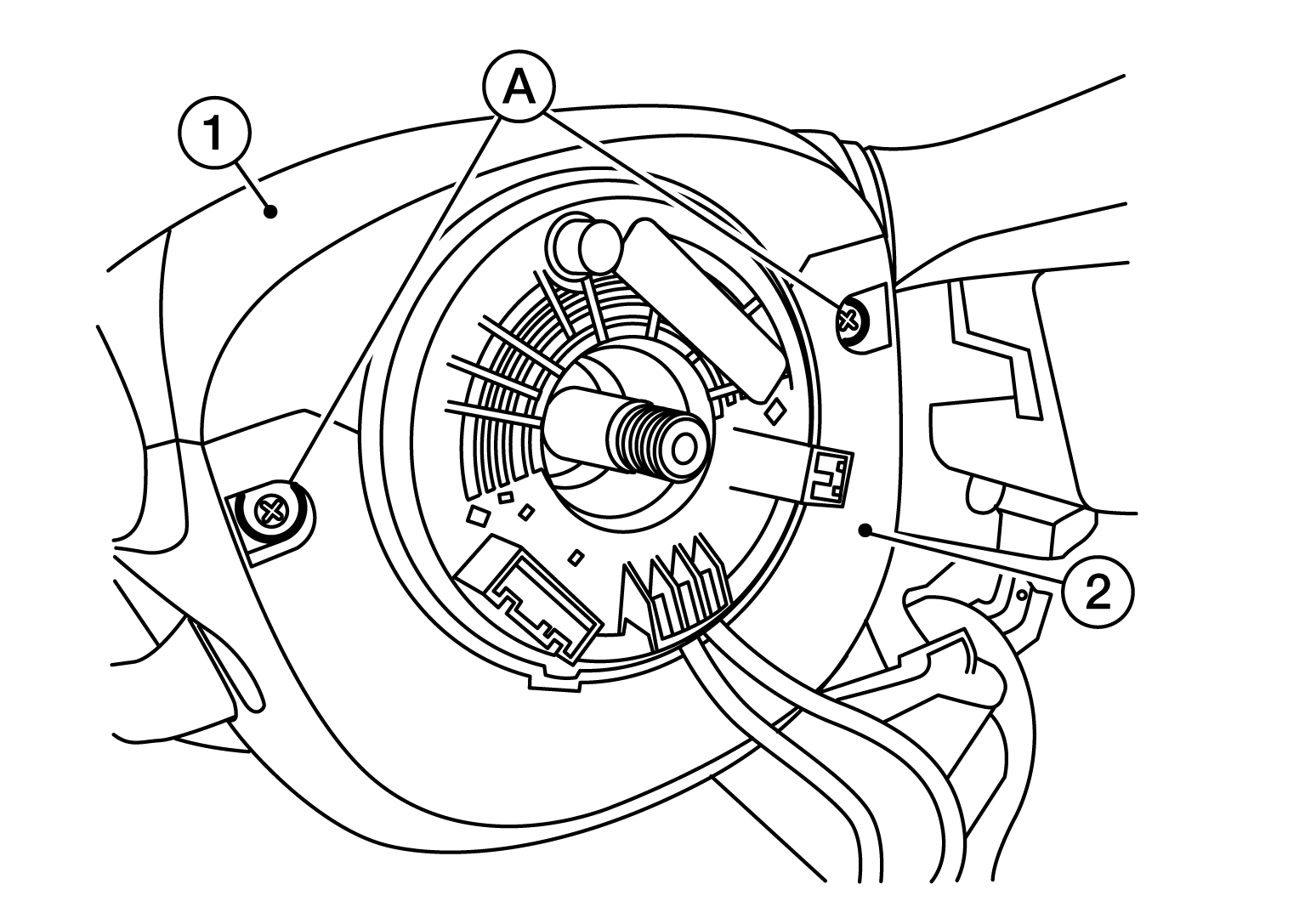

    GNSALJIA1003Z-003Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE:
    • Shown With Steering Wheel Removed For Clarity.
    • If Necessary, Rotate Steering Wheel To Access Steering Column Cover Screws (A).
